Olson Technology Optical Transmitter, 1.22 GHz, 1310nm, +3dBm Optical Output (OTOT-1220E-3)
- Brand: Olson Technology
- P\N: OTOT-1220E-3
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Description
The Olson Technology, Inc. LaserLite Model OTOT-1220C 1310nm, 48-1,220MHz high-performance CATV Broadcast Transmitter is a high quality, full-featured standalone or 1RU 19" optical transmitter. Designed for optical transport of analog and QAM digital broadcast signals, the transmitter is ideal for CATV Hybrid Fiber Coax (HFC) applications, as well as direct transmission of CATV RF signals in industrial, corporate, gov’t, educational, and other applications.
The Model OTOT-1220C transmitter uses state-of-the-art RF and optical component technology. A comprehensive lineup of DFB laser offerings provides superior performance over a wide range of optical budgets (up to 16dB of loss), allowing unrepeated spans of over 45km (28 miles) when used in conjunction with high performance, high sensitivity node receivers such as the Olson Technology Model OTPN-2200C or OTMN-3-2. Less demanding applications can operate to 25dB of loss or 70km (43 miles) distance.

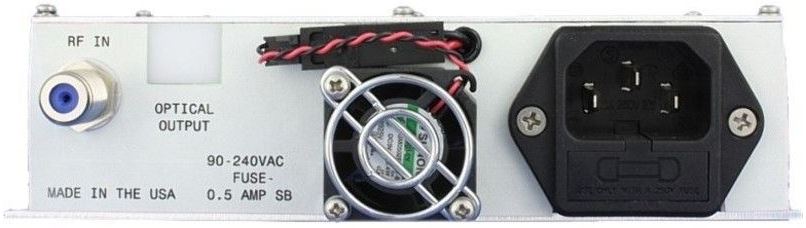

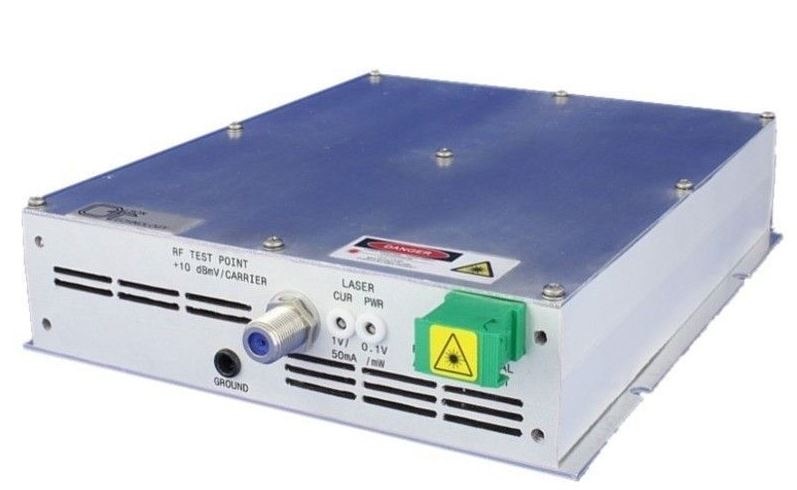

The rugged, self-contained cast aluminum OTOT-1220C provides exterior RF input and optical output connections, plus front panel RF and laser test points. The field-configurable SC/APC (or optional FC/APC) connector can be mounted on the front or rear panel of the unit. The OTOT-1220C is cooled with forced air via an external high MTBF fan designed to be field-replaceable without interrupting operation. The standalone unit can be rack-mounted using the Model OTLL-RMKIT-1 to mount up to three OTOT-1220C’s in a 1RU space.
The Model OTOT-1220C is the perfect companion to Olson’s OTPN2200C and OTMN-3-2 optical nodes. It is also designed to operate with optical receivers from most leading manufacturers. The companion OTOR-300 return receiver works with all RF return path optical transmitters in the 5MHz to 300MHz frequency range.
The Model OTOT-1220C transmitter uses state-of-the-art RF and optical component technology. A comprehensive lineup of DFB laser offerings provides superior performance over a wide range of optical budgets (up to 16dB of loss), allowing unrepeated spans of over 45km (28 miles) when used in conjunction with high performance, high sensitivity node receivers such as the Olson Technology Model OTPN-2200C or OTMN-3-2. Less demanding applications can operate to 25dB of loss or 70km (43 miles) distance.
The rugged, self-contained cast aluminum OTOT-1220C provides exterior RF input and optical output connections, plus front panel RF and laser test points. The field-configurable SC/APC (or optional FC/APC) connector can be mounted on the front or rear panel of the unit. The OTOT-1220C is cooled with forced air via an external high MTBF fan designed to be field-replaceable without interrupting operation. The standalone unit can be rack-mounted using the Model OTLL-RMKIT-1 to mount up to three OTOT-1220C’s in a 1RU space.
The Model OTOT-1220C is the perfect companion to Olson’s OTPN2200C and OTMN-3-2 optical nodes. It is also designed to operate with optical receivers from most leading manufacturers. The companion OTOR-300 return receiver works with all RF return path optical transmitters in the 5MHz to 300MHz frequency range.
