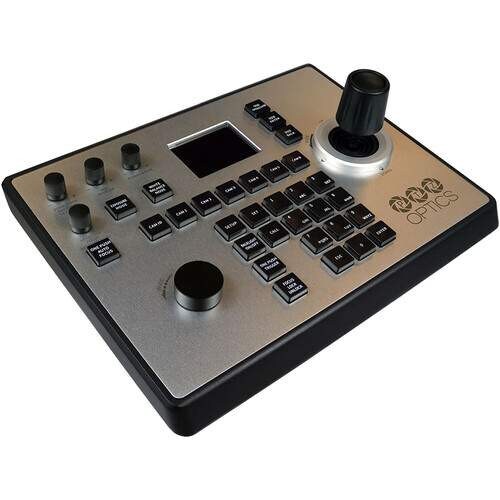

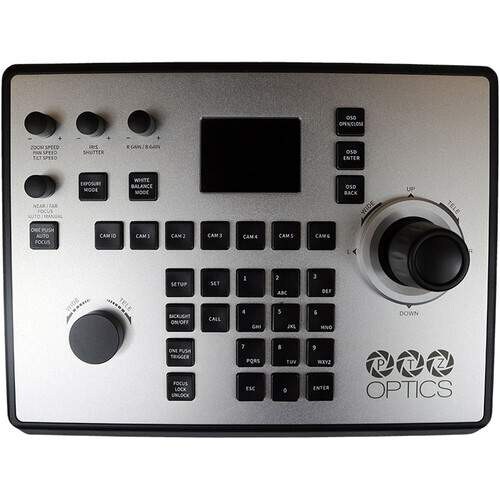

PTZOptics Joystick Keyboard Gen4 (PT-JOY-G4)

Control up to 255 PTZ cameras using IP or serial communication with the 4th generation PT-JOY-G4 IP/Serial Joystick Controller from PTZOptics. The PT-JOY-G4 offers joystick and button control for up to 255 PTZ cameras via IP and seven cameras via serial protocols, with support for VISCA, VISCA-over-IP, Pelco-P, and Pelco-D protocols over IP and serial RS-232, RS-422, and RS-485 communication. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen as well as an on-screen display on your camera feed.

The controller also offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer settings on the PTZ cameras. Other features include glowing buttons for working in the dark, 255 camera presets, and nine quick presets buttons. You can import and export configurations using IP.

The PT-JOY-G4 supports a variety of camera models and manufacturers, and you can simultaneously control multiple brands such as HuddleCamHD, Sony, PTZOptics, BirdDog, and NewTek. The unit comes with an 8' long RS-232C cable and a 12 VDC universal power supply. It can also be powered using Power-over-Ethernet (PoE).

Key Features:

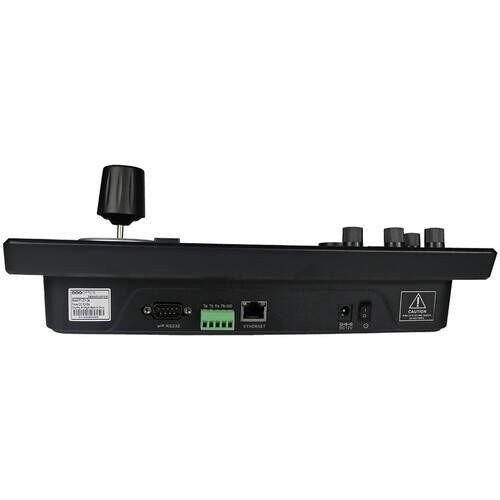

• IP, RS-232, RS-422, and RS-485 communication
• VISCA-over-IP, Pelco-P, Pelco-D, ONVIF, and VISCA protocols
• Camera on-screen display control and built-in LCD screen
• Control up to 255 cameras
• Control multiple different PTZ camera brands simultaneously, including
• HuddleCamHD, PTZOptics, BirdDog, and NewTek, with limited Sony PTZ control
• Full pan/tilt/zoom PTZ camera control with speed adjustments on the fly
• Store 255 presets and nine quick presets
• Exposure and white balance control
• Power-over-Ethernet (PoE) support
• Fine-tune zoom and focus control dials, redesigned joystick, and focus lock/unlock
• Glowing buttons for viewing in dark rooms
• Import and export settings via LAN
• Power adapter and 8' RS-232C cable are included
