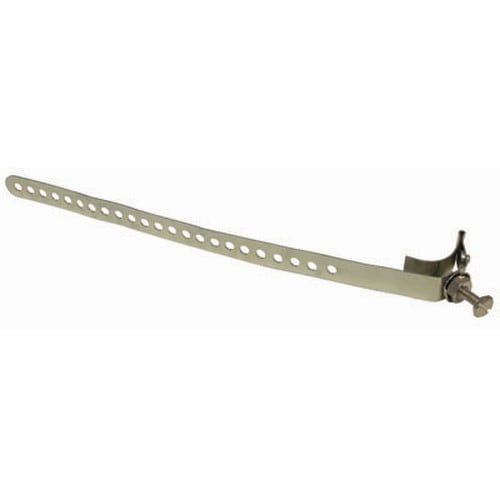

Perfect Vision Ground Strap, 12" Galvanized UL/CUL Listed (PV-GSG-12)

Perfect Vision PV-GSG-12 12-Inch Galvanized Ground Strap

Best For

Antenna and communications grounding applications using suitable grounded metal pipe or metal electrical conduit.

Why Choose the PV-GSG-12?

This zinc-coated steel strap provides a mechanical grounding connection for compatible pipe/conduit installations and is listed in existing content as UL/CUL.

Key Benefits

• 12-inch strap length
• Fits approximately 1 to 3.75-inch pipe O.D.
• 0.5-inch wide, approximately 0.027-inch thick
• For #8-#14 AWG ground wire according to existing content
• UL/CUL listed in US/Canada according to existing content
• Not for use on copper pipe

Who Should Buy the PV-GSG-12?

Qualified installers who have confirmed grounding electrode/bonding method, pipe/conduit suitability, conductor size and applicable NEC/local-code and equipment requirements.
