Altelix NSP080-01 - Polycarbonate Enclosure Vent/Fan Shroud with 80mm Fan Mount

Polycarbonate Enclosure Vent/Fan Shroud with 80mm Fan Mount (NSP080-01)

Features

• Rugged Gray Polycarbonate

• Easily Attaches to Any Enclosure or Panel Through a 3.5" Dia. Hole

• Gasketed Mounting Ring

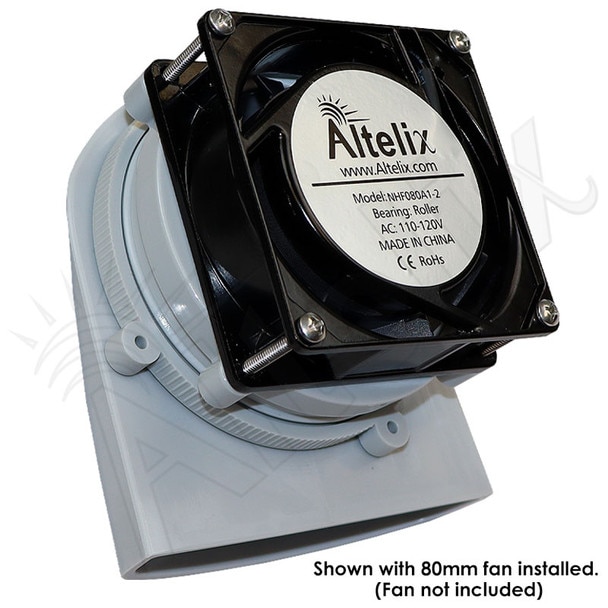

• Includes Removable Fan Mounting Ring for use with Standard 80mm Fans

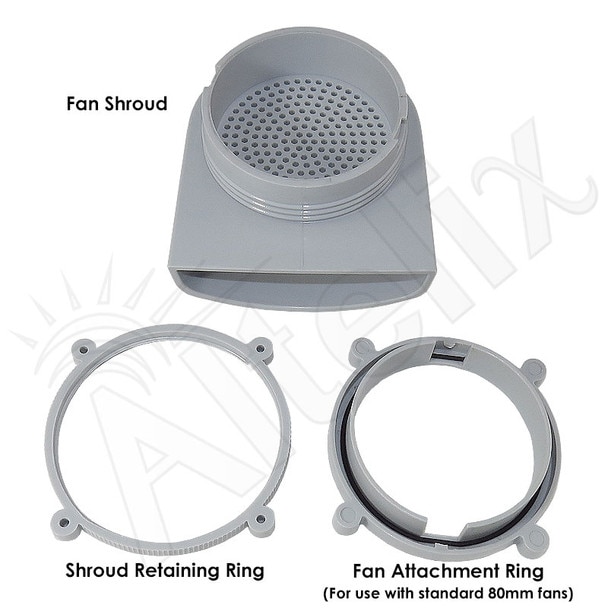

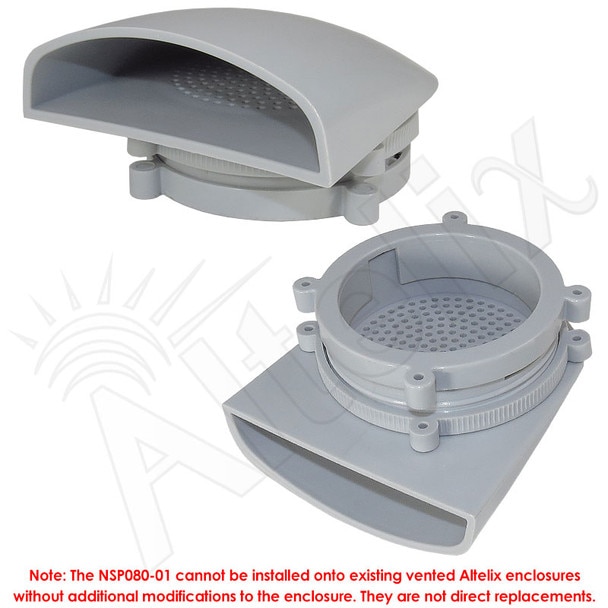

The Altelix NSP080-01 NEMA Enclosure Vent easily attaches to any enclosure or panel through a 3.5 inch hole. The NSP080-01 helps shield vent and fan openings from falling rain. The NSP080-01 consists of three components, the vent/fan shroud, retaining ring and a fan mounting ring. The NSP080-01 installs directly through the vent/fan hole and is secured with the retaining ring. The removable fan mounting ring is used to attach a standard 80mm fan directly to the shroud.

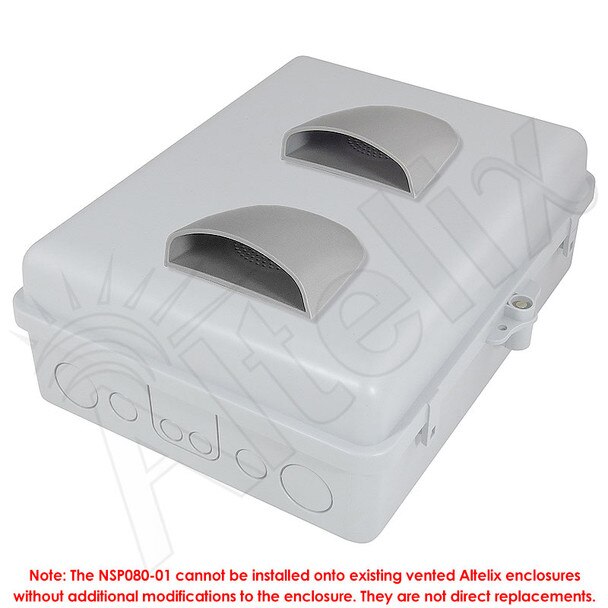

Installation Note:
The NSP080-01 cannot be installed onto existing vented Altelix enclosures without additional modifications to the enclosure. This is not a direct replacement for the standard vent shrouds used on Altelix vented enclosures.
