Altelix NMHS-400-T - Rohn 25G Tower Enclosure Mounting Kit - Universal Design for Small to Medium Size Enclosures
- Brand: Altelix
- P\N: NMHS-400-T
Description
Altelix NMHS-400-T Rohn 25G Tower Enclosure Mounting Kit - Universal Design
Best For
Altelix Enclosure Mounting Kit for Rohn® 25G Towers - Universal Design for Small to Medium Size Enclosures
Why Choose the NMHS-400-T?

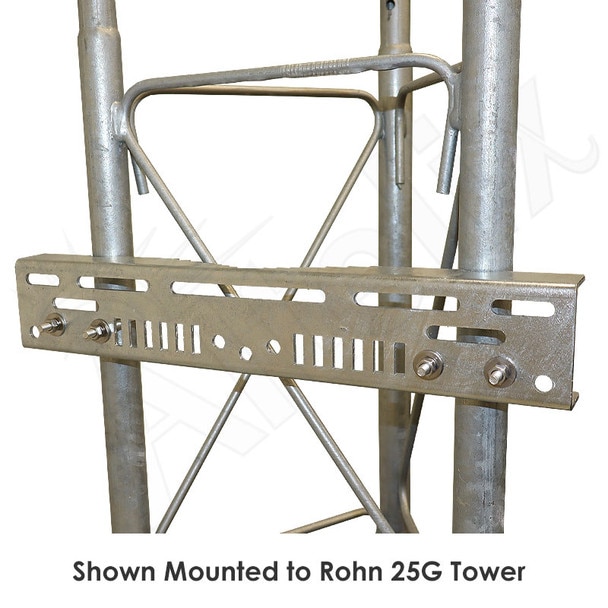

The Altelix NMHS-400-T mounting kit is designed for use with Rohn® 25G towers. Included U-bolts allow these brackets to be easily mounted to the Rohn® tower. These brackets can also be used with a single pole up to 1.3” (34.9mm) diameter using the included U-bolts.
This kit can also be used with Campbell® UT6 and UT10 towers as well as Amerite® AME 25 towers.
Key Benefits
- The NMHS-600-T brackets feature unique overlapping mounting slots for versatile mounting capabilities
- This allows these brackets to be used with enclosures with mounting points up to 14.3” (365mm) apart
- This allows these brackets to be used with a wider range of enclosures from small to large
- These NMHS Rohn® tower mounting brackets are designed for rugged all-weather installations
- The (2) included mounting brackets are constructed from 14 gauge (0.08 inch thick) galvanized steel and are ideal for all weather applications
Who Should Buy the NMHS-400-T?
Buyers who need to mount a compatible enclosure to a pole, post or tower and have confirmed the pole diameter and enclosure compatibility listed above.
Heavy Duty Construction

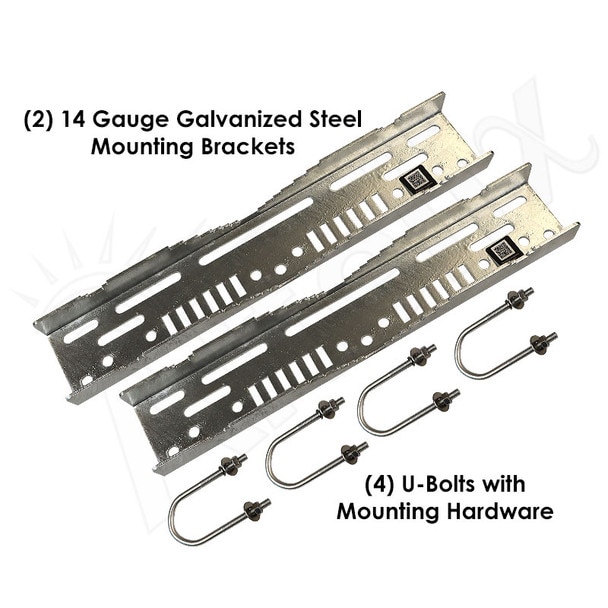

The NMHS-400-T kit includes:
- (2) 14 gauge galvanized steel Rohn® tower mounting brackets
- (4) Steel U-bolts with mounting hardware
The NMHS-400-T Rohn® tower mounting kit can also be used with the following Altelix enclosures:

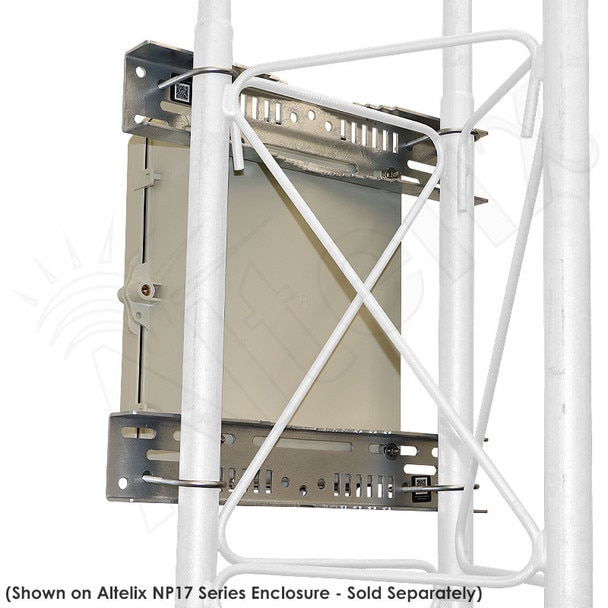

- All NP Series Polycarbonate Enclosures
- NF100806 and NF100808 Series FRP Enclosures
- NF141206, NF141208, NF141210 and NF201612 Series FRP Enclosures
- NFC121006, NFC161208, NFC161608, NFC201608 and NFC241609 Series FRP Enclosures
- NS080806, NS100806, NS121006, NS161212, NS161608, NS201608, NS201612, NS241610 and NS241612 Series Painted Steel Enclosures
- NX161212, NX161608 and NX201612 Series Stainless Steel Enclosures
Optional heavy duty adjustable stainless-steel bands can also be purchased for the following pole sizes:
- Heavy Duty Bands for Poles 1.7 to 8.0 inches (44.4 to 203.2mm) in diameter
- Heavy Duty Bands for Poles 1.7 to 12.0 inches (44.4 to 304.8mm) in diameter
- Heavy Duty Bands for Poles 1.7 to 16.0 inches (44.4 to 406.4mm) in diameter
This mounting kit is also available for use with larger enclosures with mounting points up to 22.2” (565mm) apart. See NMHS-600-T.
Features
Features:
| Applications:
|
Specifications
| Mounting Brackets Material | 14 Gauge (2.0mm) Galvanized Steel |

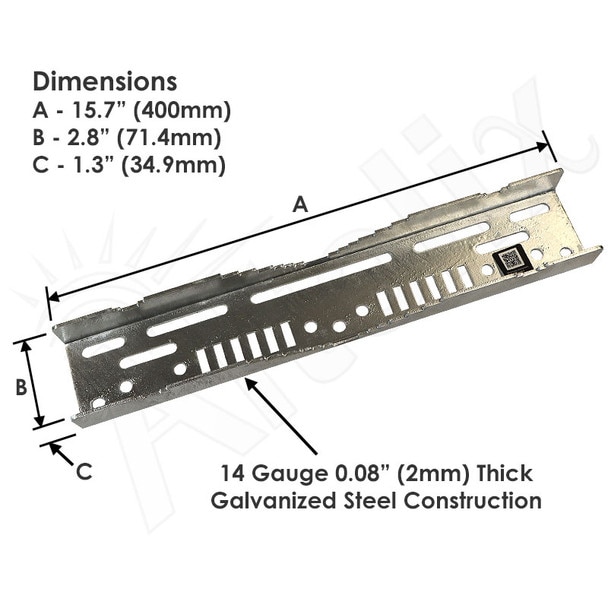

| Mounting Bracket Dimensions | 15.7 x 2.8 x 1.3 inch (400 x 71.4 x 34.9 mm) |
| Rohn Tower Compatibility | Rohn 25G |
| Single Pole Mounting Dia. | 1.3 in. (34.9mm) Diameter |
