Altelix NMKX-500-16 - Stainless Steel Pole Mounting BracketKit with 16" Adjustable Bands for: NFC242009

Stainless Steel Pole Mounting BracketKit with 16" Adjustable Bands for: NFC242009 (NMKX-500-16)

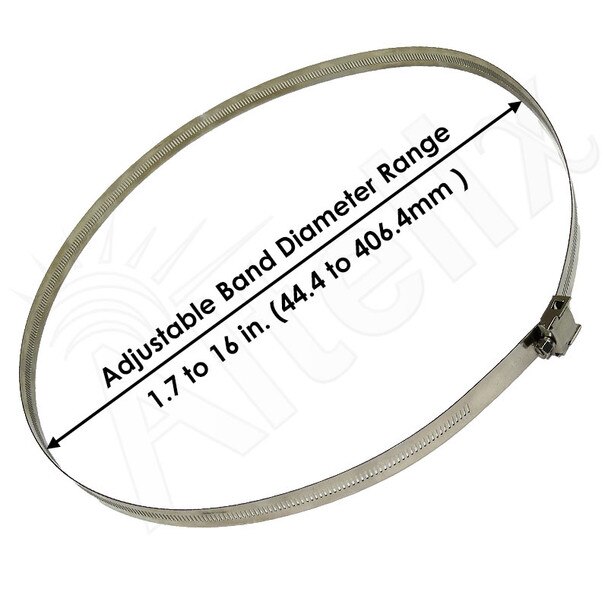

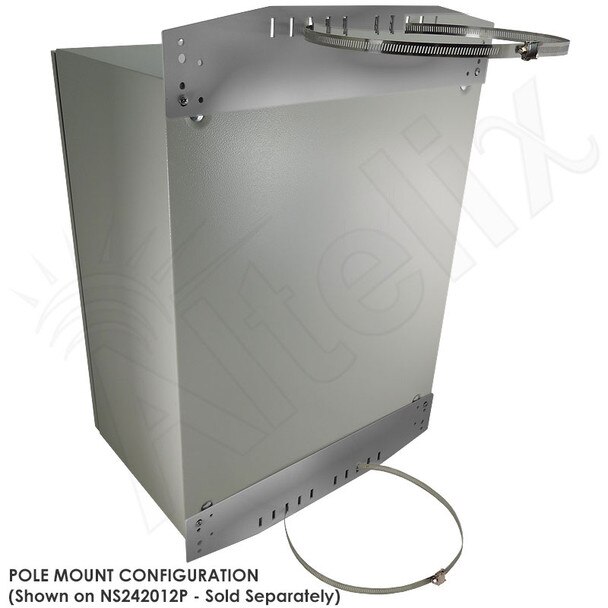

The Altelix NMKX-500-16 Stainless Steel Pole Mount Kit attaches to the rear of our NFC242009 and NS242012 series NEMA enclosures. These heavy duty stainless steel brackets allow the enclosures to be mounted to poles 1.7 to 16 inches (44.4 to 406.4mm) in diameter. The mounting bracket features multiple locations to thread the stainless steel bands so that small to large poles can be accommodated. The mounting brackets are constructed from 0.08" (2mm) thick stainless steel for all weather applications.

Heavy-Duty Stainless Steel Adjustable Bands

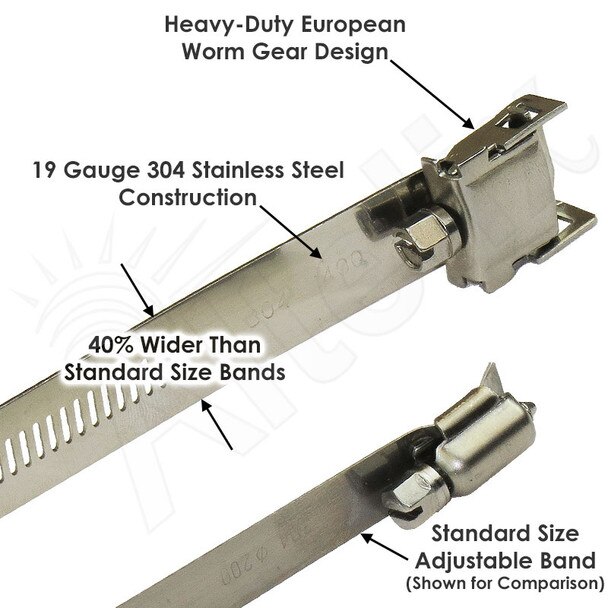

To mount to the pole this kit includes (2) heavy duty 19 gauge 304 stainless steel adjustable bands. 40% wider then standard adjustable bands, these 0.7 inch (18mm) wide bands feature a heavy-duty European worm gear design which is stronger than standard hose clamp gears.

Optional heavy duty adjustable stainless steel bands can also be purchased for the following pole sizes (see accessories when adding to cart):

• Heavy Duty Bands for Poles 1.7 to 8.0 inches (44.4 to 203.2mm) in diameter

• Heavy Duty Bands for Poles 1.7 to 12.0 inches (44.4 to 304.8mm) in diameter

• Heavy Duty Bands for Poles 1.7 to 16.0 inches (44.4 to 406.4mm) in diameter

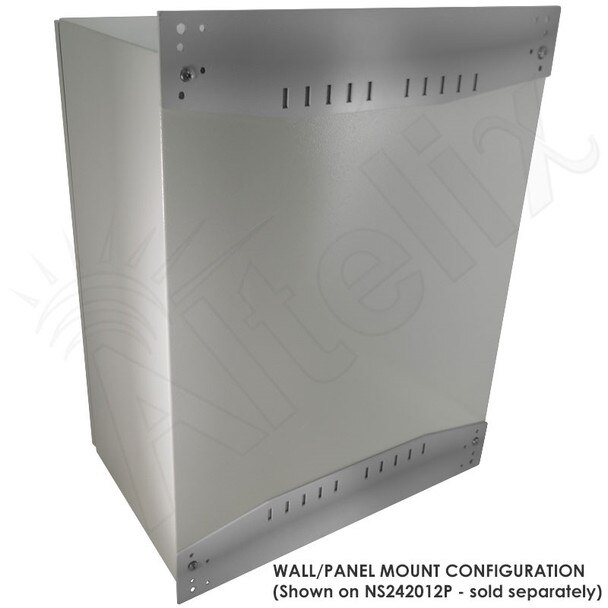

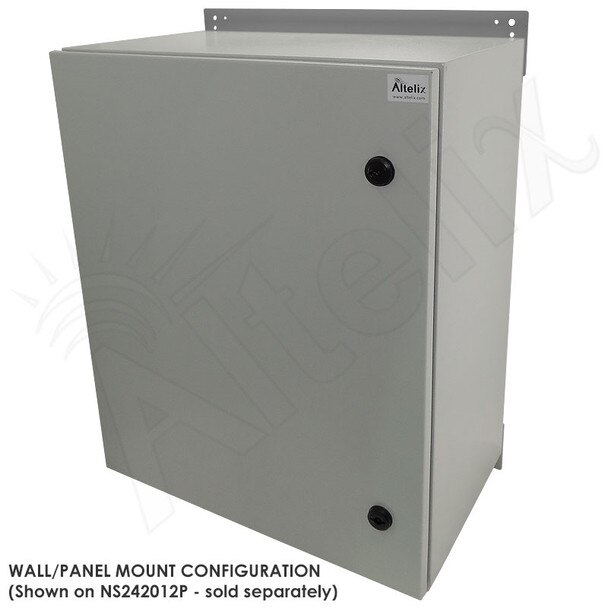

The brackets can also be reversed to provide a continuous steel mounting flange along the edge of the enclosure.

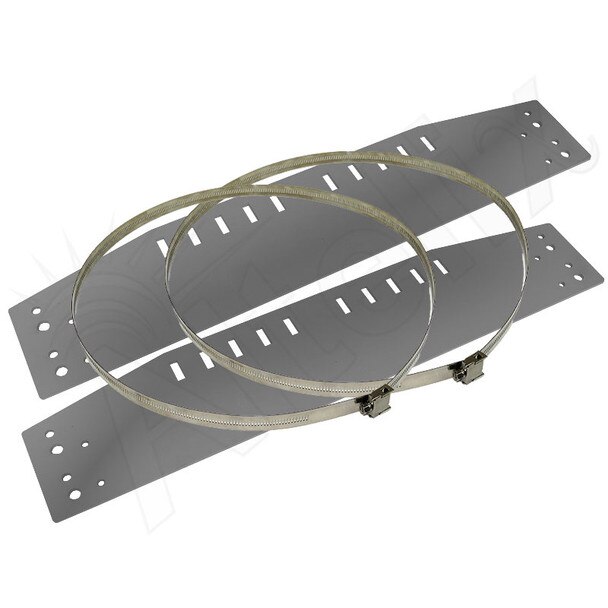

The NMKX-500-16 kit includes (2) stainless steel mounting brackets, (2) stainless steel adjustable bands and mounting hardware.

The NMKX-500-16 is for use with the following enclosures:

• NFC242009 Series FRP Enclosures

• NS242012 Series Steel Enclosures
