Altelix NMKQ-293-08 - Stainless Steel Universal Pole Mount Kit with Adjustable Bands for Enclosures 7 to 12 Inches Wide

Stainless Steel Universal Pole Mount Kit with Adjustable Bands for Enclosures 7 to 12 Inches Wide - Fits Altelix NP171406, NF141206, NF141208, NF141210, NFC161208, NS161208 & NS161212 Enclosures (NMKQ-293-08)

Features:

• Includes (2) 304 Stainless Steel Mounting Brackets

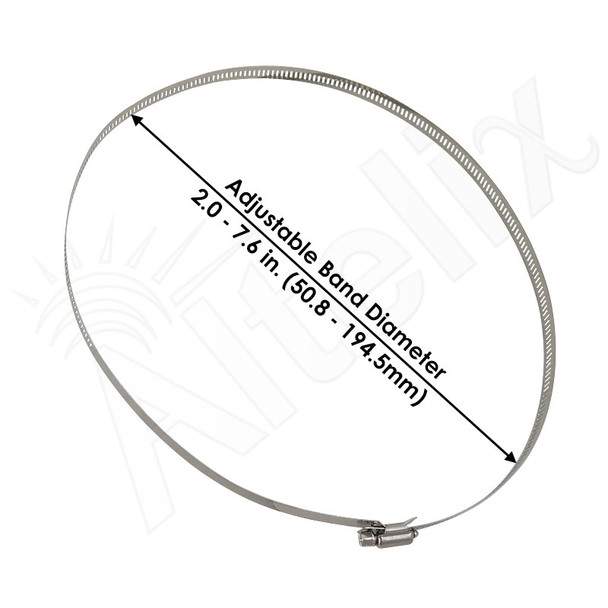

• Includes (2) 304 Stainless Steel 8 inch Adjustable  Bands for Mounting to Poles 2.0 to 7.6 inches (50.8 to 194.5mm) in Diameter
• 70 lbs (31.7kg) Weight Capacity
• Easily Attaches to Rear of Enclosure

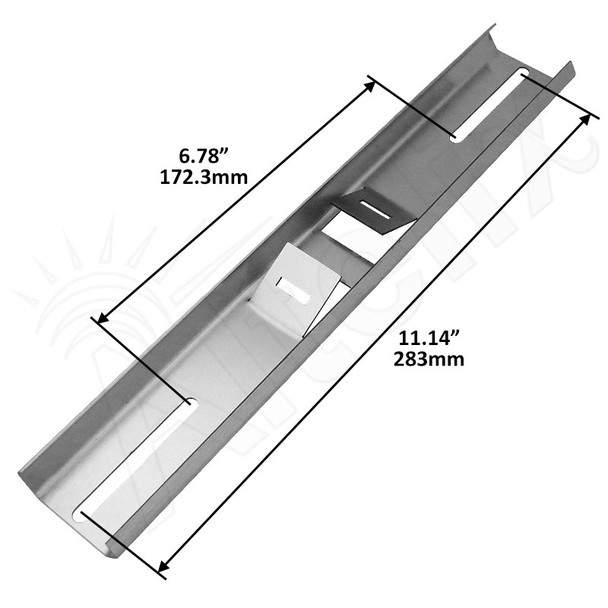

• Fit Most Enclosures 7" to 12" Wide (Mounting Slots Accommodate Mounting Points from 6.7" to 11.1" Apart)

Applications:

• Pole Mount Installations
• Fence Posts
• Fits Altelix NP171406, NF141206, NF141208, NF141210, NFC161208, NS161208 & NS161212 Enclosures

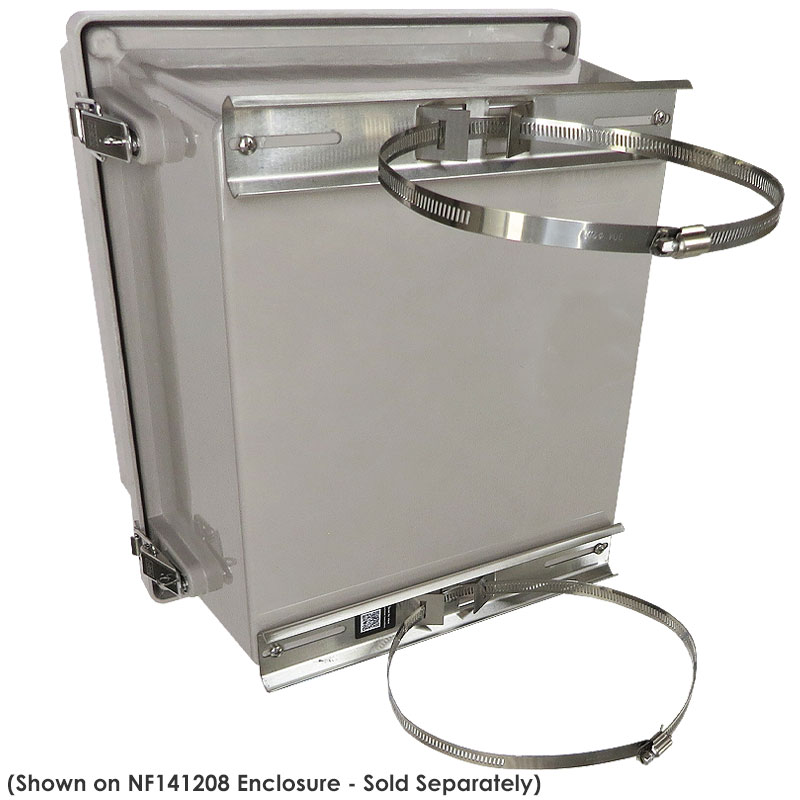

The Altelix NMKQ-293-08 Univeral Pole Mount Kit easily attaches to the rear of most enclosures 7 to 12 inches wides. Mounting slots on the brackets and accommodate mounting points on the enclosure from 6.7 to 11.1 inches apart. This pole mount kit allows the enclosures to be mounted to poles 2.0 to 7.6 inches (50.8 to 194.5mm) in diameter using the included 304 stainless steel adjustable bands. The mounting brackets are constructed from 18 Gauge (1.2mm) thick AISI 304 stainless steel for all weather applications.

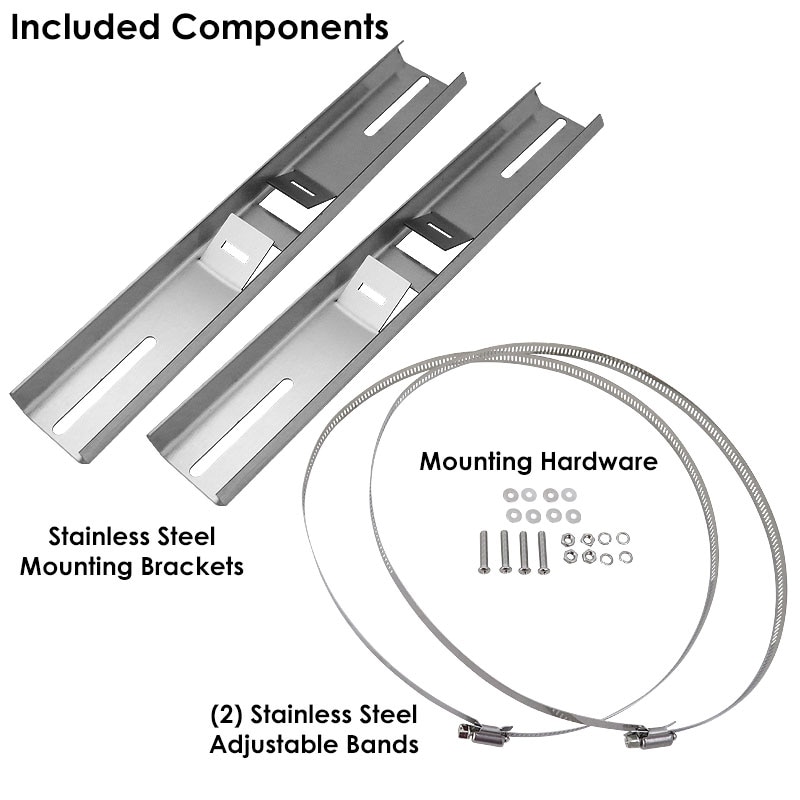

The NMKQ-293-08 kit includes:

• (2) 304 stainless steel mounting brackets
• (2) 304 stainless steel adjustable 8" diameter bands
• Mounting hardware.

Optional adjustable stainless steel bands can also be purchased for the following pole sizes:

• Poles 2.0 to 4.0 inches (50.8 to 101.6mm) in diameter
• Poles 2.0 to 13.0 inches (50.8 to 330.2mm) in diameter
• Poles 2.0 to 17.5 inches (50.8 to 444.5mm) in diameter

The NMKQ-293-08 can be use with the following Altelix enclosures:

• NP171406
• NF141206
• NF141208
• NF141210
• NFC161208
• NS161208
• NS161212
