Televes H30D+ (QAM) spectrum analyzer with ATSC 1.0 and DOCSIS 3.1 (593981)
- Brand: Televes
- P\N: 593981
- UPC: 8424450238066
Do you have questions?
Please contact our experts for assistance.
Description
Televes H30D+ (QAM) Spectrum Analyzer with ATSC 1.0 and DOCSIS 3.1

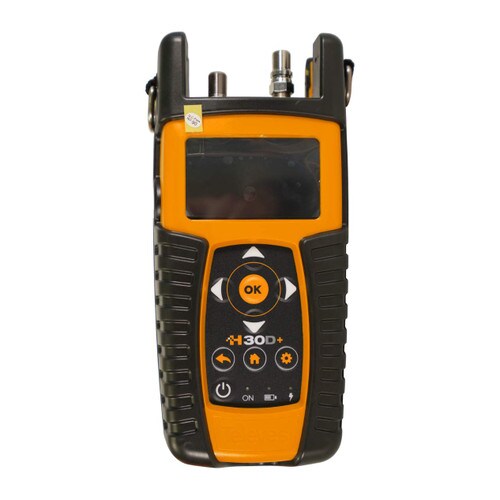

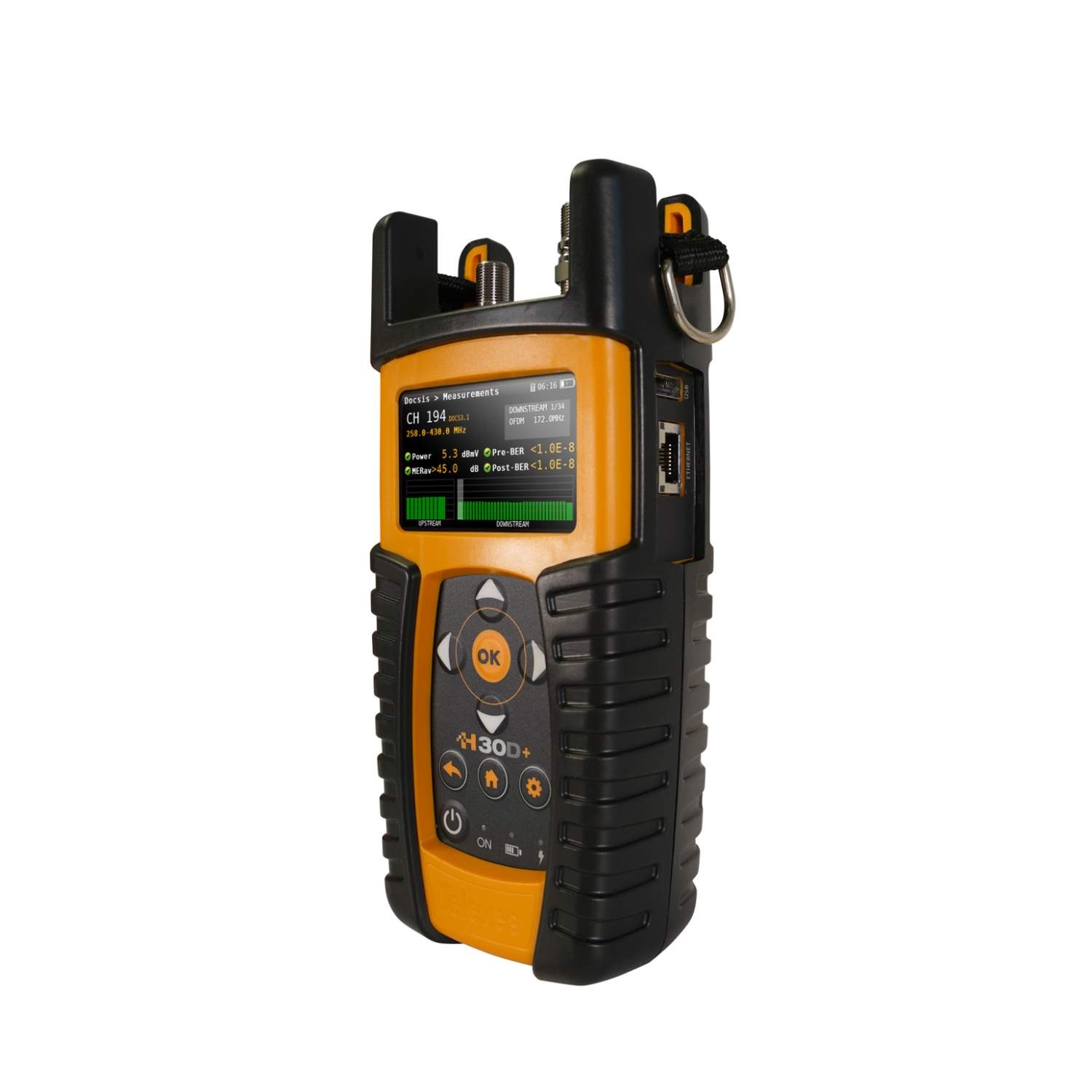

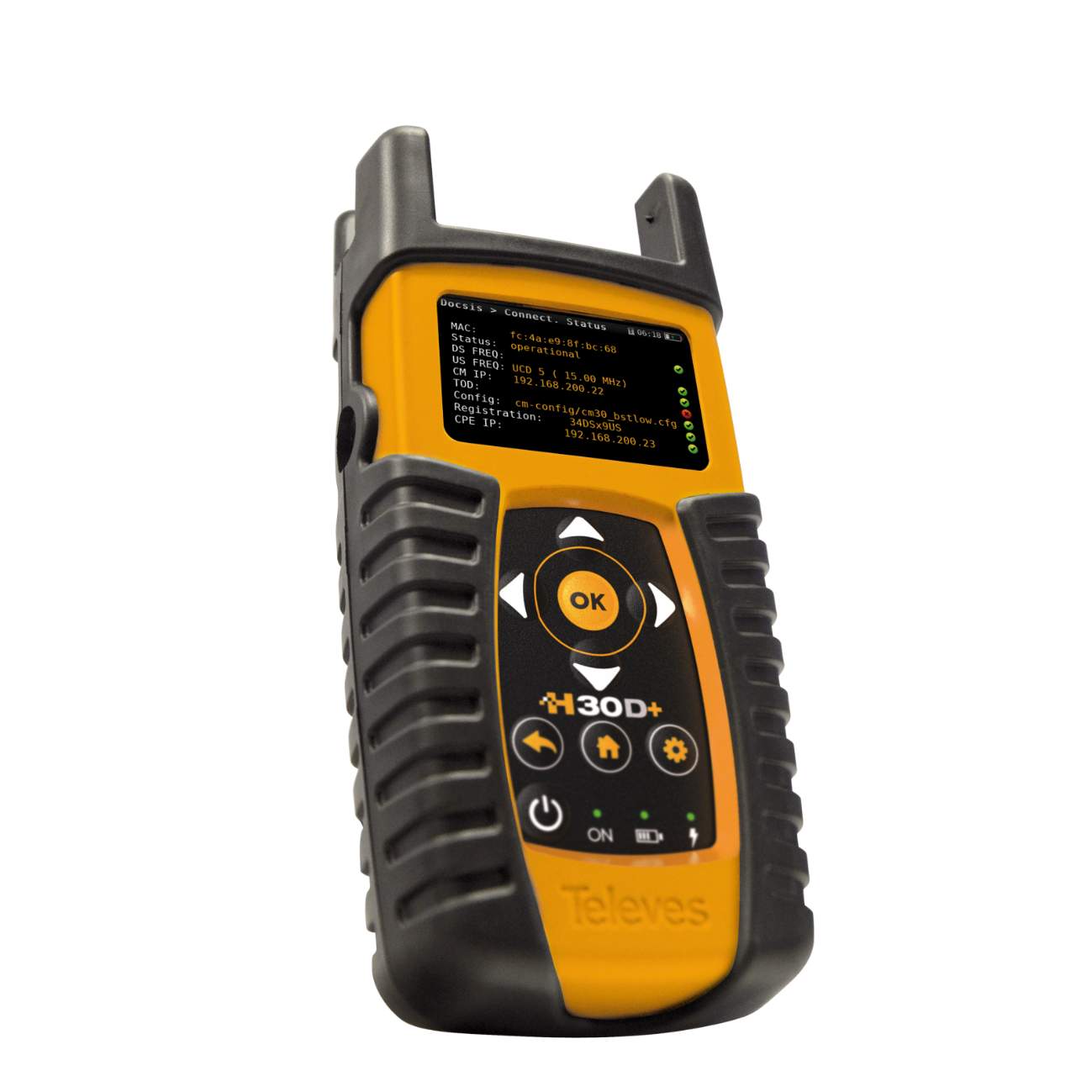

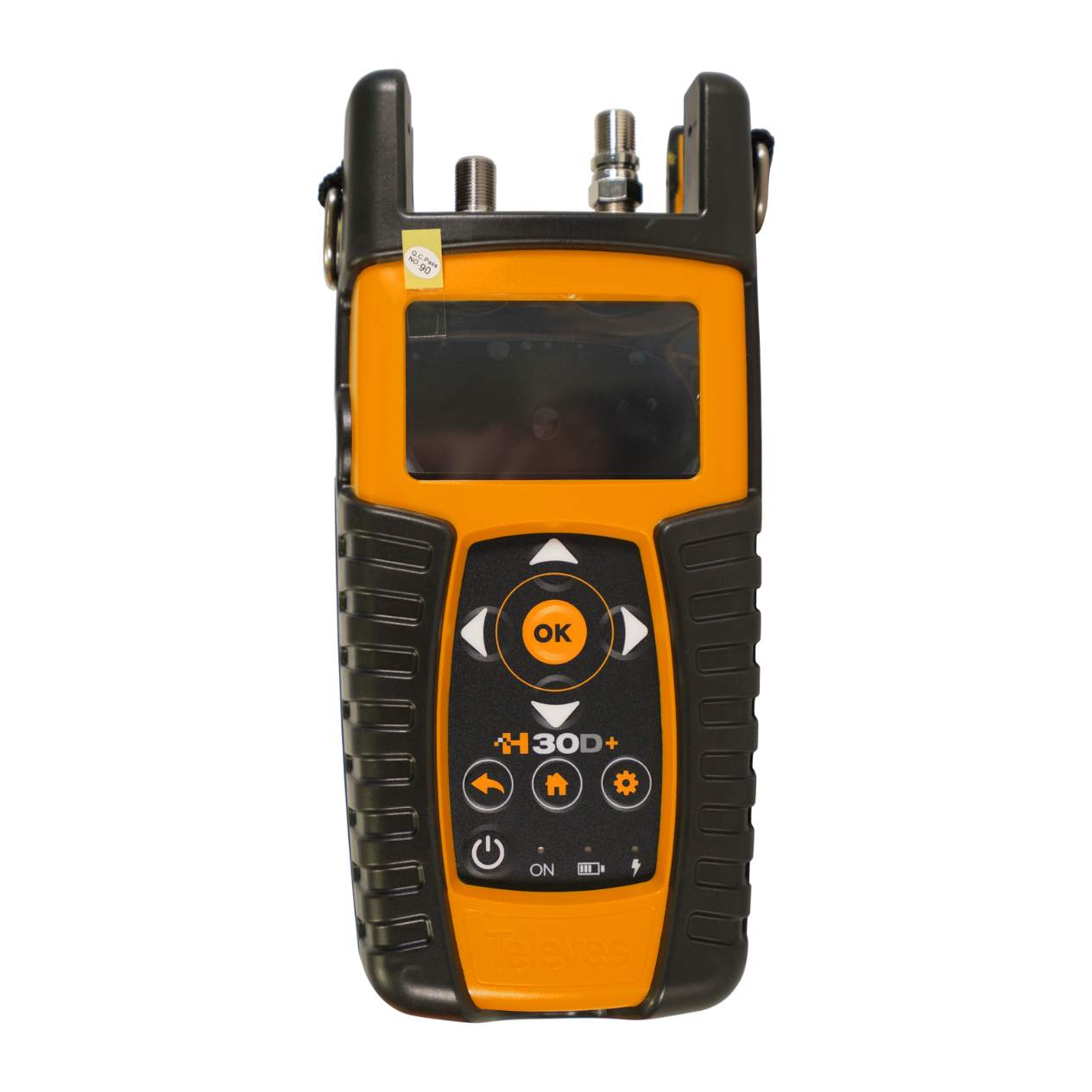

The H30D+ is a lightweight, compact and robust equipment that includes a full range of tools and functionalities to successfully perform installation, maintenance and troubleshooting tasks in both analogue networks and digital networks with ATSC, and QAM channels. It stands out for incorporating advanced DOCSIS 3.1 measurements, automatic monitoring of the desired channel, double-check connectivity and the information about a QAM channel program content, among other powerful functions.
Operating the meter is more flexible thanks to its multiscreen system: the user can manage it remotely and display its contents on their own mobile device (Android, iOS or PC). In addition, to make the use of the smartphone even more natural, a universal bracelet is provided for devices up to 6".
Just as the rest of the meters fully designed and manufactured in Televes Corporation, H30D+ takes advantage of the digital processing technology, and provides the user with a speed and mathematical accuracy equivalent to that of laboratory equipment.
Key Features:
- Professional RF signal analyzer: decoding and display of video and audio parameters of received ATSC 1.0 and QAM signals
- Multiscreen system with touch control: display the meter screen on a mobile device, and control the meter by touch gestures and buttons
- Wireless connectivity
- Real-time digital processing
- Light-weight handheld meter
- User-friendly interface
- DOCSIS 3.1
- With Wi-Fi / IPTV analyzers and HEVC display as options
- Automatic parameter detection: the H30+ automatically detects signal type (A/D) and parameters to be measured (constellation, symbol rate, etc)
- All measurements are carried out by pressing a single button equipped with Pass/Fail indicators to reduce installation errors
What's in the box:

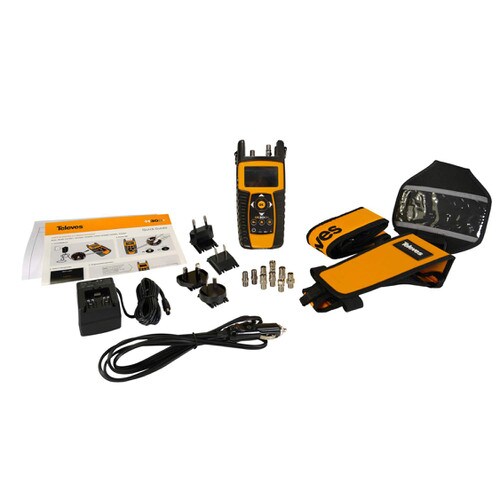

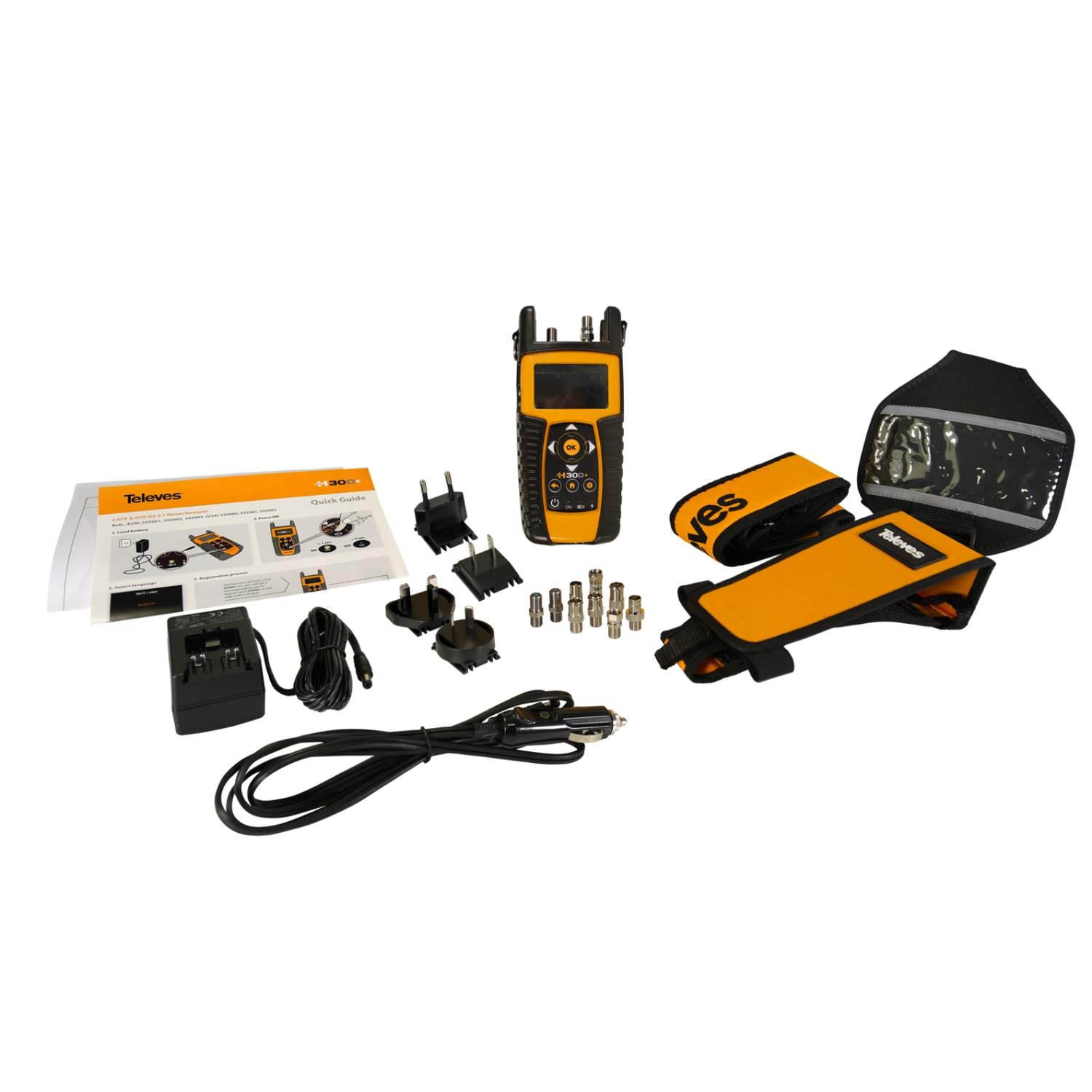

- Televes H30D+ (QAM) Spectrum Analyzer
- DC power cord
- AC power cord
- Carrying case
- Instruction manual
Experience the power and convenience of the Televes H30D+ Spectrum Analyzer. With its advanced features and user-friendly design, it's the perfect tool for professionals looking to optimize their network performance. Don't miss out on this opportunity to take your network analysis to the next level. Order the Televes H30D+ today!
Features
Multiscreen and remote control
Controllable from any Android or iOS device or a PC with H30Suite
The H30D+ multiscreen system allows you to display the meter’s screen on your smartphone or tablet to wirelessly control the meter or just for the sake of working with a larger screen.
The installer may wirelessly access the equipment at any time from anywhere in the installation (depending on the local network connection range), with the convenience of always using his/her own device.
Simply install the H30Suite App (ref. 100016) on your device and connect it to the Wi-Fi network generated by the meter (AP mode).
Wireless connectivity
Wireless access to the meter
Equipped with Wireless connectivity, the equipment allows secure access through an Android or iOS device, or a PC. The web management application H30Suite (ref. 100016) may be used to check and export stored measurements, access to quality profiles, meter settings cloning, meter registration through a friendlier interface or real-time consultation of the user manual.
Rugged and Light Weight
Total reliability
A unique dual injected rubber and polycarbonate plastic housing ensures the best protection and durability. Weighing only one pound, the H30D+ is comfortable to carry and use. You can put it in your pocket or hang it from its sturdy built-in grommets using the provided shoulder strap… you will hardly know it’s there!
Intuitive User Interface
Reducing the learning curve
Easy to use one-level menu structure with very intuitive functions for increased usability, faster operation and maximum productivity. No function requires more than three successive button pushes to achieve the desired operation. It doesn’t get any easier than this, you will fly through the functions without ever reading the user manual.
Comprehensive Functionality
Pass/Fail indicators
A full range of functionalities such as Single-channel measurements, Constellation diagram, Spectrum analyser, Service identification, Data logs, Channel plan auto-learning, and more.
Accuracy and Speed
Real-time digital processing
Designed to instantly obtain all the information about the signal in real time, it is a true milestone in field work. H30D+ provides the required accuracy and speed to detect minor transient radiation, or spurious signals that could affect the system during signal reception.
100% Automatic
Signal detection
Fully automatic, it detects the parameters of different modulations with no need for configuration. H30D+ will detect at once whether the input signal is analogue or digital, and will determine its constellation, symbol rate and other modulation parameters, providing an instant reading without any user intervention.

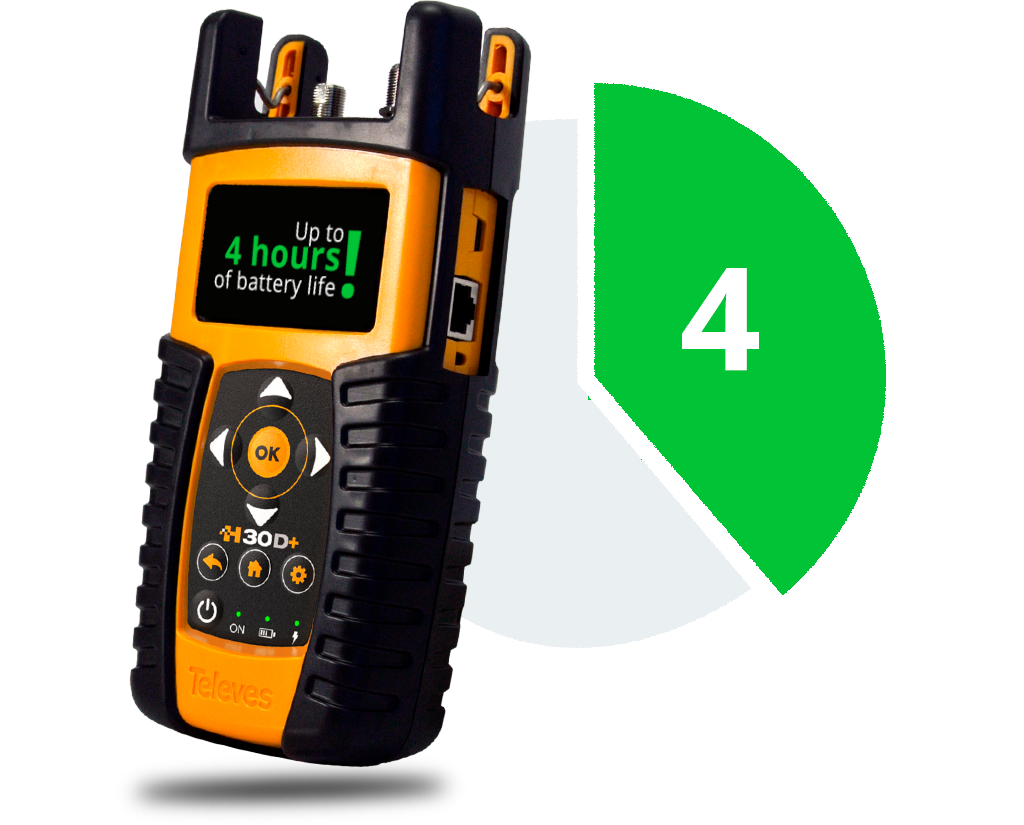

Long Battery Life
Up to 4 hours on a full charge
High quality Li-Ion batteries, in conjunction with our advanced low power consumption technology, provide enough juice for even the largest jobs. One hour of fast charging will provide almost three hours of extended operation.
Made in Televes
Your Quality Warranty
The H30D+ is entirely designed by Gsertel, a company within Televes Corporation, where our team of experienced and highly qualified telecommunication engineers managed to integrate digital processing in a handheld unit of 1lb of weight. Each H30D+ includes more than 5,000 components and integrated circuits.
Multiscreen and remote control
Controllable from any Android or iOS device or a PC with H30Suite
The H30D+ multiscreen system allows you to display the meter’s screen on your smartphone or tablet to wirelessly control the meter or just for the sake of working with a larger screen.
The installer may wirelessly access the equipment at any time from anywhere in the installation (depending on the local network connection range), with the convenience of always using his/her own device.
Simply install the H30Suite App (ref. 100016) on your device and connect it to the Wi-Fi network generated by the meter (AP mode).
Wireless connectivity
Wireless access to the meter
Equipped with Wireless connectivity, the equipment allows secure access through an Android or iOS device, or a PC. The web management application H30Suite (ref. 100016) may be used to check and export stored measurements, access to quality profiles, meter settings cloning, meter registration through a friendlier interface or real-time consultation of the user manual.
Rugged and Light Weight
Total reliability
A unique dual injected rubber and polycarbonate plastic housing ensures the best protection and durability. Weighing only one pound, the H30D+ is comfortable to carry and use. You can put it in your pocket or hang it from its sturdy built-in grommets using the provided shoulder strap… you will hardly know it’s there!
Intuitive User Interface
Reducing the learning curve
Easy to use one-level menu structure with very intuitive functions for increased usability, faster operation and maximum productivity. No function requires more than three successive button pushes to achieve the desired operation. It doesn’t get any easier than this, you will fly through the functions without ever reading the user manual.
Comprehensive Functionality
Pass/Fail indicators
A full range of functionalities such as Single-channel measurements, Constellation diagram, Spectrum analyser, Service identification, Data logs, Channel plan auto-learning, and more.
Accuracy and Speed
Real-time digital processing
Designed to instantly obtain all the information about the signal in real time, it is a true milestone in field work. H30D+ provides the required accuracy and speed to detect minor transient radiation, or spurious signals that could affect the system during signal reception.
100% Automatic
Signal detection
Fully automatic, it detects the parameters of different modulations with no need for configuration. H30D+ will detect at once whether the input signal is analogue or digital, and will determine its constellation, symbol rate and other modulation parameters, providing an instant reading without any user intervention.
Long Battery Life
Up to 4 hours on a full charge
High quality Li-Ion batteries, in conjunction with our advanced low power consumption technology, provide enough juice for even the largest jobs. One hour of fast charging will provide almost three hours of extended operation.
Made in Televes
Your Quality Warranty
The H30D+ is entirely designed by Gsertel, a company within Televes Corporation, where our team of experienced and highly qualified telecommunication engineers managed to integrate digital processing in a handheld unit of 1lb of weight. Each H30D+ includes more than 5,000 components and integrated circuits.
Specifications
H30D+ | |
Mechanical Specifications | |
Screen | 2.8” TFT 400 x 240 full color |
Weight | 633 g (1.39 lb) |
Dimensions | 175x100x52 mm / 6.9x3.9x2 (HxWxD) |
AC Adaptor | Input: 100-240 V~ 50-60 Hz Output: 12 VDC, 3 A |
Battery | Li-ion (7.2 VDC, 2550 mAh) |
Battery range | <4 hours |
Interfaces | Ethernet 1 Gb, USB 2.0 |
Resilience | It withstands drops From 1 m (3.2 ft) onto concrete on all sides |
Storage capacity | 1.5 GB (internal) for measurements |
Impedance | F-type connector - 75 Ohm |
Technical Specifications | |
Frequency | 5 to 1,218 MHz |
Resolution | 50 kHz |
Input Impedance | 75 Ohm |
Input level | 45 - 125 |
Standards | ITU-T J.83 Annex A/B/C standard |
Modulation | 16/32/64/128/256 QAM, QPSK |
Symbol Rate | 2 to 6.9 Msps |
MER | 40 dB |
Digital Measurements QAM | Power BER (Annex A/C) |
Analog Measurements | V/A ratio C/N |
DOCSIS | Modes: 3.1 / 3.0 / BPI+ Downstream: Up to 32 QAM channels and 2 OFDM channels of 192MHz Upstream: Up to 8 QAM channels and 2 OFDM-A channels of 96MHz |
MPEG Service Information | ✓ |
IP Speed Test | ✓ |
Advanced API | ✓ |
Wireless Connectivity | ✓ |
Long Term Monitoring | ✓ |
Wi-Fi Analyzer | Optional |
Services and IPTV Analizer | Optional |
HEVC display | Optional |
