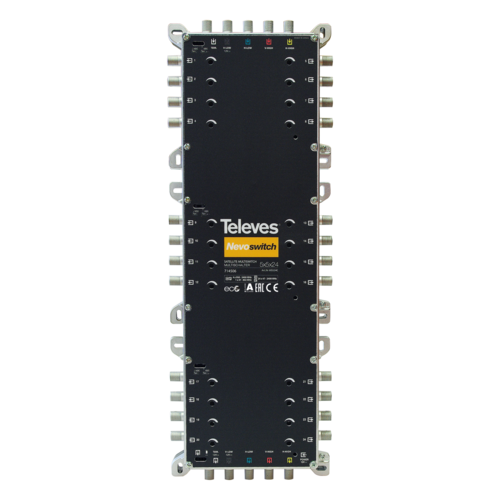

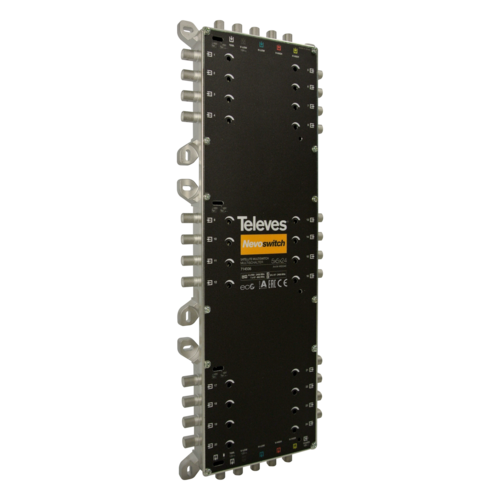

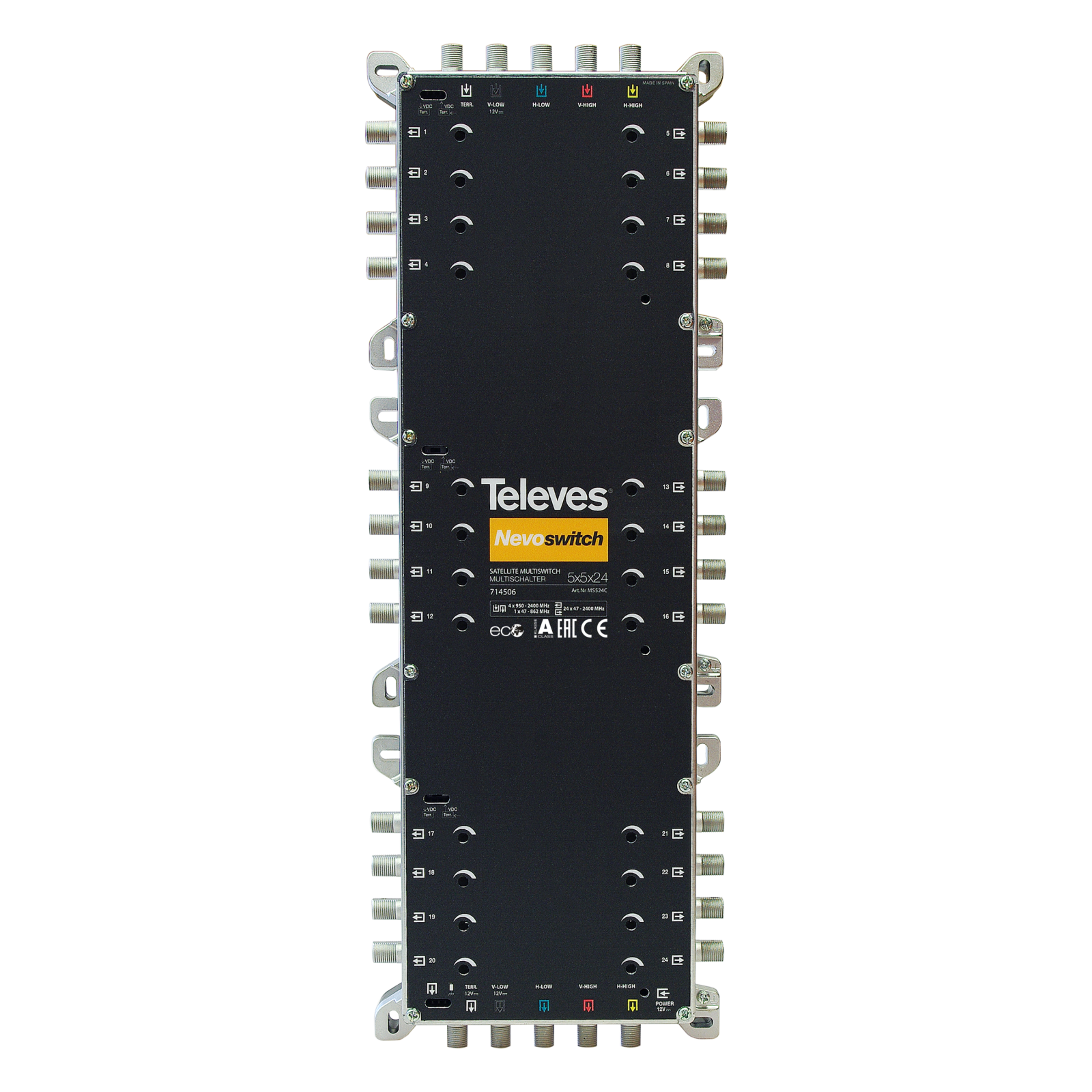

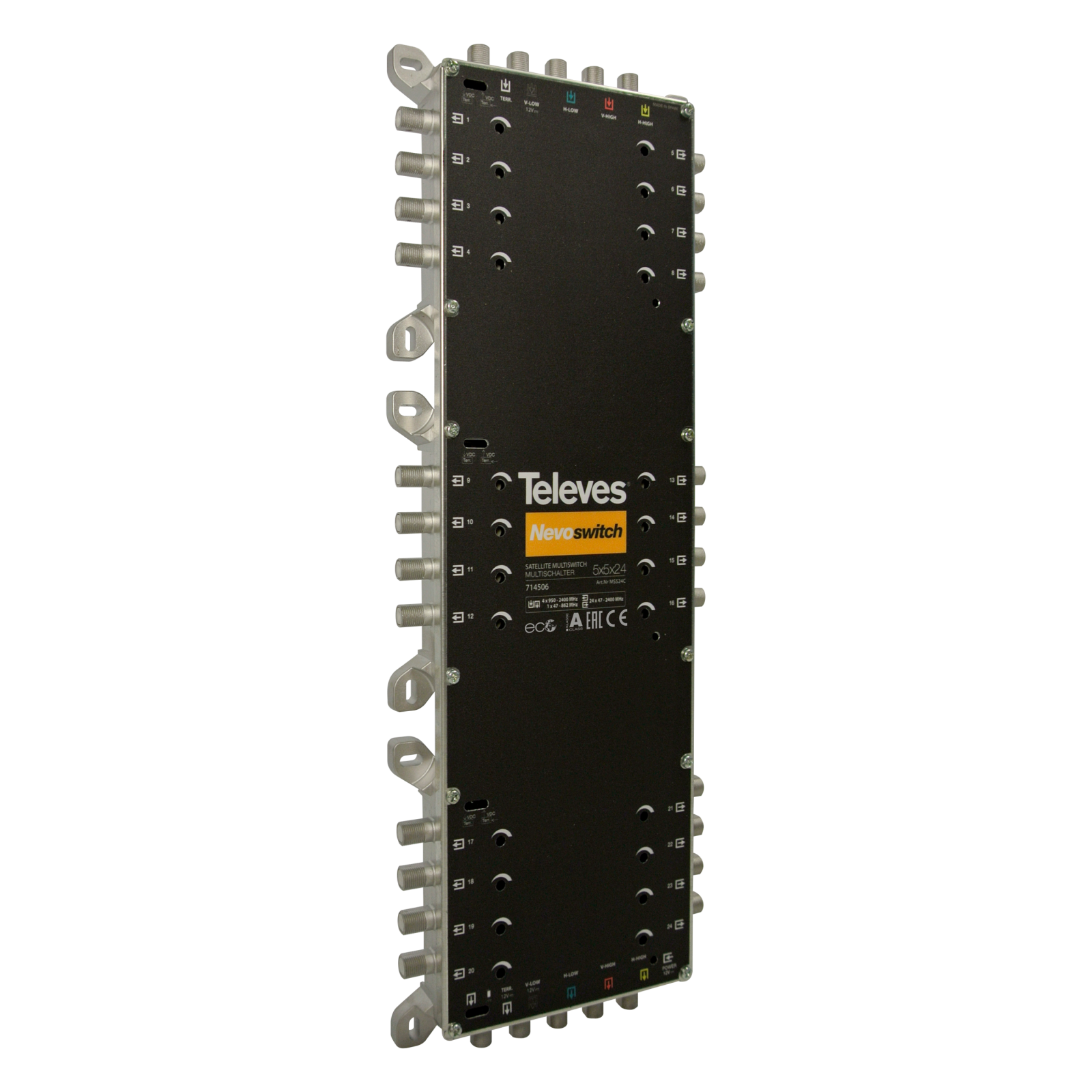

Televes NevoSwitch 5 inputs - 24 outputs (714506)
- Brand: Televes
- P\N: 714506
- UPC: 8424450172834
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Cascadable multiswitch equipped with 5 inputs (one terrestrial, and the four polarities of one satellite), 24 user outputs, and a 12 dB potentiometer per user output.
Can be used as a terminal (star topology) or as a cascade by using a simple switch.
Key Features:
- One potentiometer (12 dB) on each of the user outputs to optimize the level on an individual basis
- A switch for either powering terrestrial pre-amplifiers or allowing current circulation
- Can be powered directly from the satellite receiver, without the need for a power supply unit*
- Remote power feeding using VL
- Current circulation between all inputs and cascades
- Active terrestrial
- European design, quality, and manufacturing
Features
- Very compact
- Made of zamak
- Input and output color identification
- Available ECO mode
- Selector switch to shift between cascade and terminal modes
- 12 V power supply
- Low power consumption
Specifications
| Number of inputs | 5 | |
|---|---|---|
| Number of cascadable outputs | 5 | |
| Number of user outputs | 24 | |
| Frequency range TERR. | MHz | 47 ... 862 |
| Frequency range SAT. | MHz | 950 ... 2400 |
| Input level TERR. | dBμV | 92 |
| Input level SAT. | dBμV | 105 |
| Through losses TERR. | dB | 6 |
| Through losses SAT. | dB | 4.5 ... 12 |
| Tap losses 1...8 TERR. | dB | 2 |
| Tap losses 1...8 SAT. | dB | 1 |
| Tap losses 9...16 TERR. | dB | 4 |
| Tap losses 9...16 SAT. | dB | 2 |
| Tap losses 17...24 TERR. | dB | 6 |
| Tap losses 17...24 SAT. | dB | 5 |
| Tap regulation range | dB | 0 ... 12 |
| Isolation H/V | dB | > 30 |
| Isolation users | dB | > 25 |
| Powering | Vdc | 12 |
| Max. current (PSU) | mA | 175 |
| Max. current (STB) | mA | 35 |
| Operating temperature | °C | -5 ... 45 |
| Protection index | 20 |
