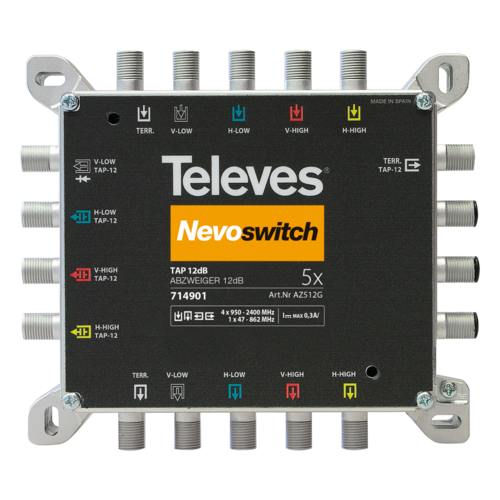

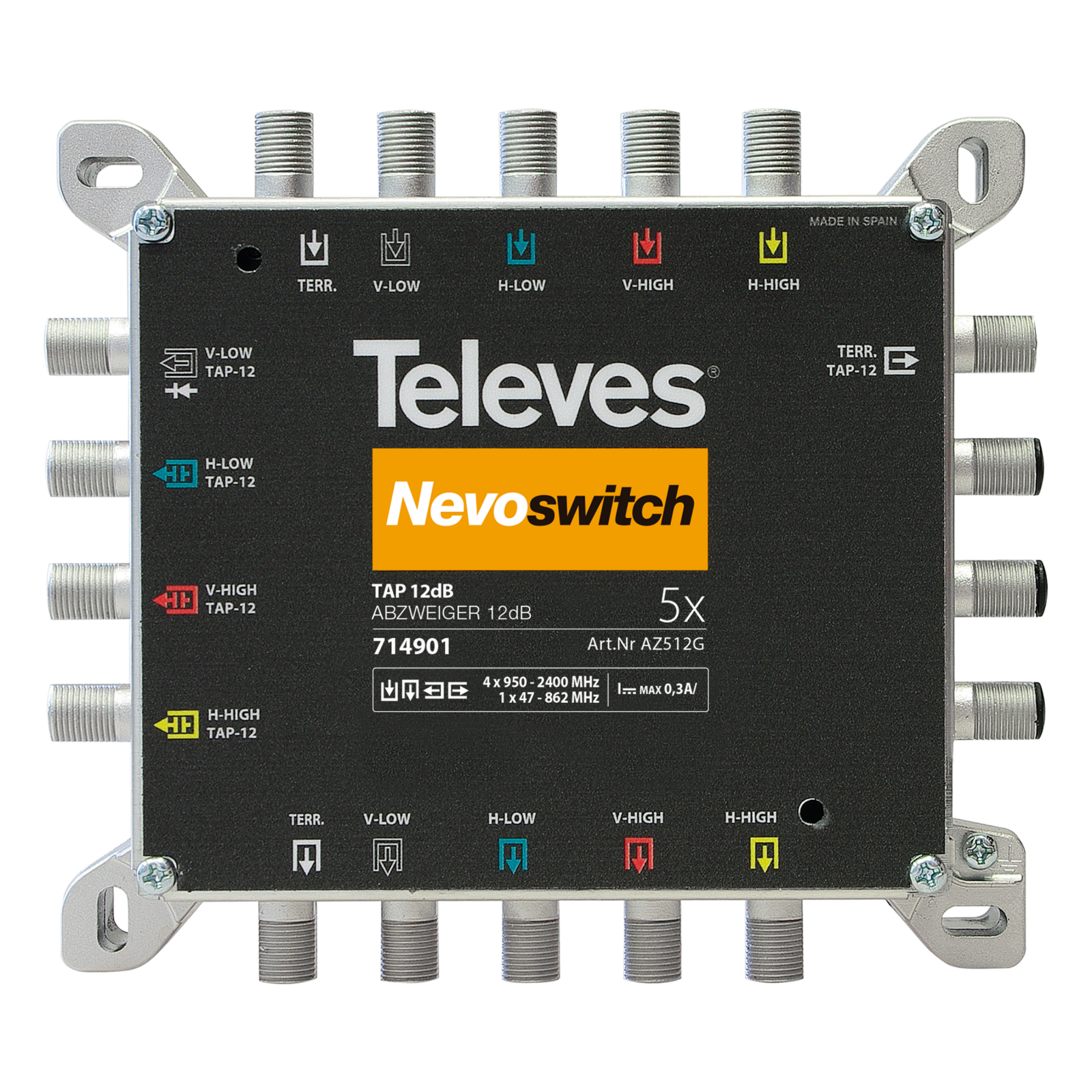

Televes NevoSwitch tap 5 inputs 12dB (714901)
- Brand: Televes
- P\N: 714901
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
NevoSwitch tap equipped with 5 inputs (one terrestrial and the four polarities of one satellite), with 12 dB bridging losses, that allows the balancing of the signals received by each user.
Key Features:
- Current circulation in all inputs and all outputs with DC bypass
- Current circulation in the vertical low (VL) bypass and terrestrial output
- Low through losses
- Very compact
- Made of zamak
- Input and output colour identification
- Passive element that does no require power feeding
Interested in learning more about this product?Check out our blog!
Specifications
| Number of inputs | 5 | |
|---|---|---|
| Number of cascadable outputs | 5 | |
| Number of user outputs | 5 | |
| Frequency range TERR. | MHz | 47 ... 862 |
| Frequency range SAT. | MHz | 950 ... 2400 |
| Through losses TERR. | dB | 1.5 |
| Through losses SAT. | dB | 1.5 |
| Tap losses TERR. | dB | 12 |
| Tap losses SAT. | dB | 15 |
| Isolation H/V | dB | > 25 |
| Isolation users | dB | > 25 |
| DC pass | In↔Out / Tap→In/Out | |
| Connectors | "F" type | |
| Operating temperature | °C | -5 ... 45 |
| Protection index (IP) | 20 |
