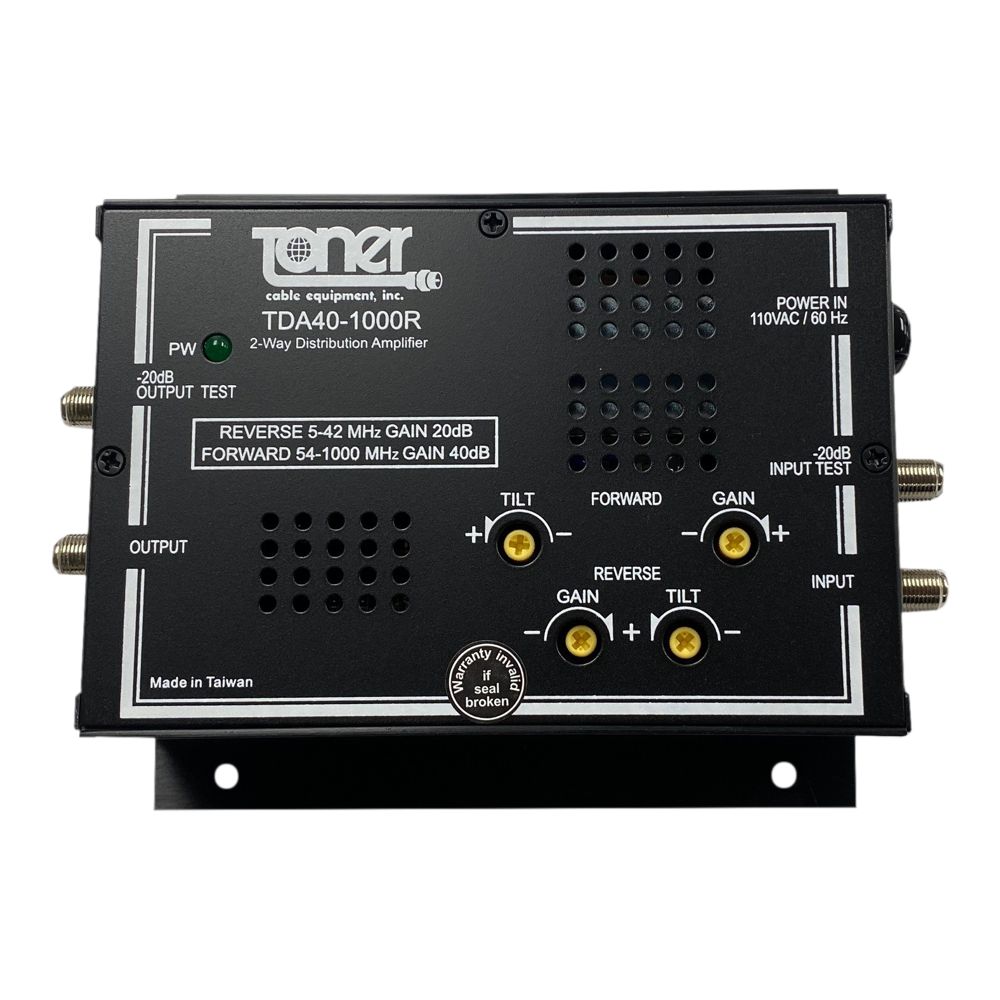

Toner Cable 2 Way Broadband Distribution Amplifier (TDA40-1000R)

The TDA40-1000R Amplifier allows system operator to provide 1 GHz amplification of their network in commercial properties, apartment buildings, and other locations where a reliable high performance 2 way amplifier is needed.

Using a GaAs silicone hybrid the amp provides 40 dB of gain with low distortion characteristics at a high level output. With an internal 42/54 MHz diplex filter 2 way operation is achieved with up to 20 dB gain in the reverse path. Both forward and reverse have 0 to 20 dB slope control.

With an internal UL listed power transformer, the amplifier only uses 9 watts of power and runs extremely cool.

Features:

• SMD PC Board Technology
• Lightweight Aluminum Housing for Heat Dissipation
• GaAs Silicone Hybrid for Low Distortions
• 40 dB Forward Gain
• 57 dB Output
• -20 dB Test Points
• F-Female Connectors
• 60″ Power Cord
