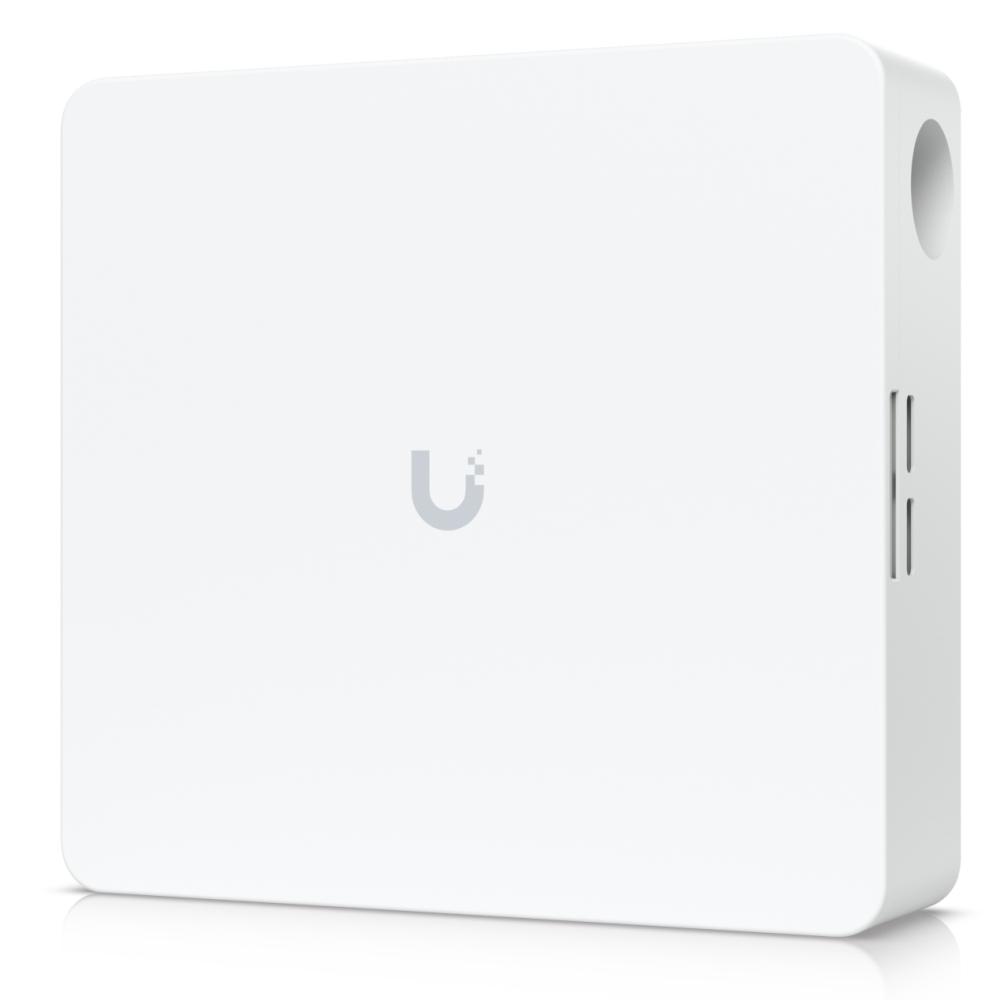

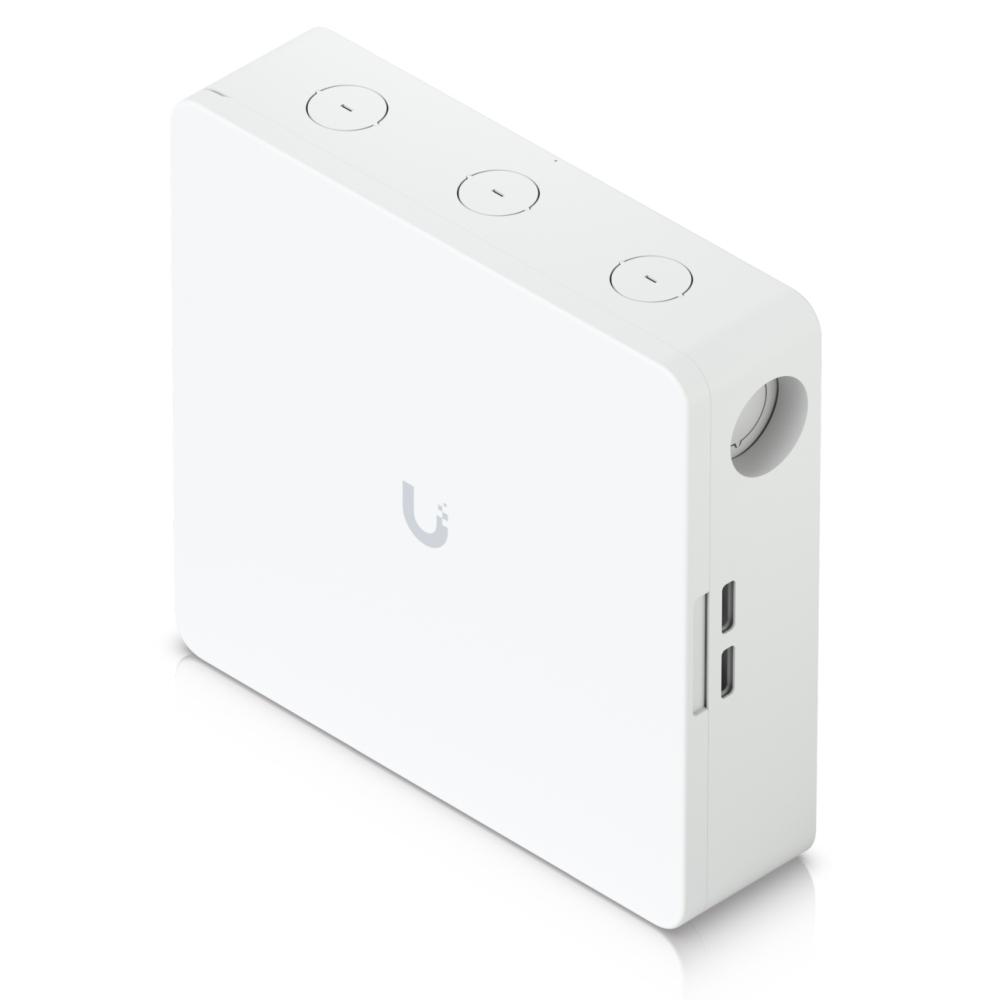

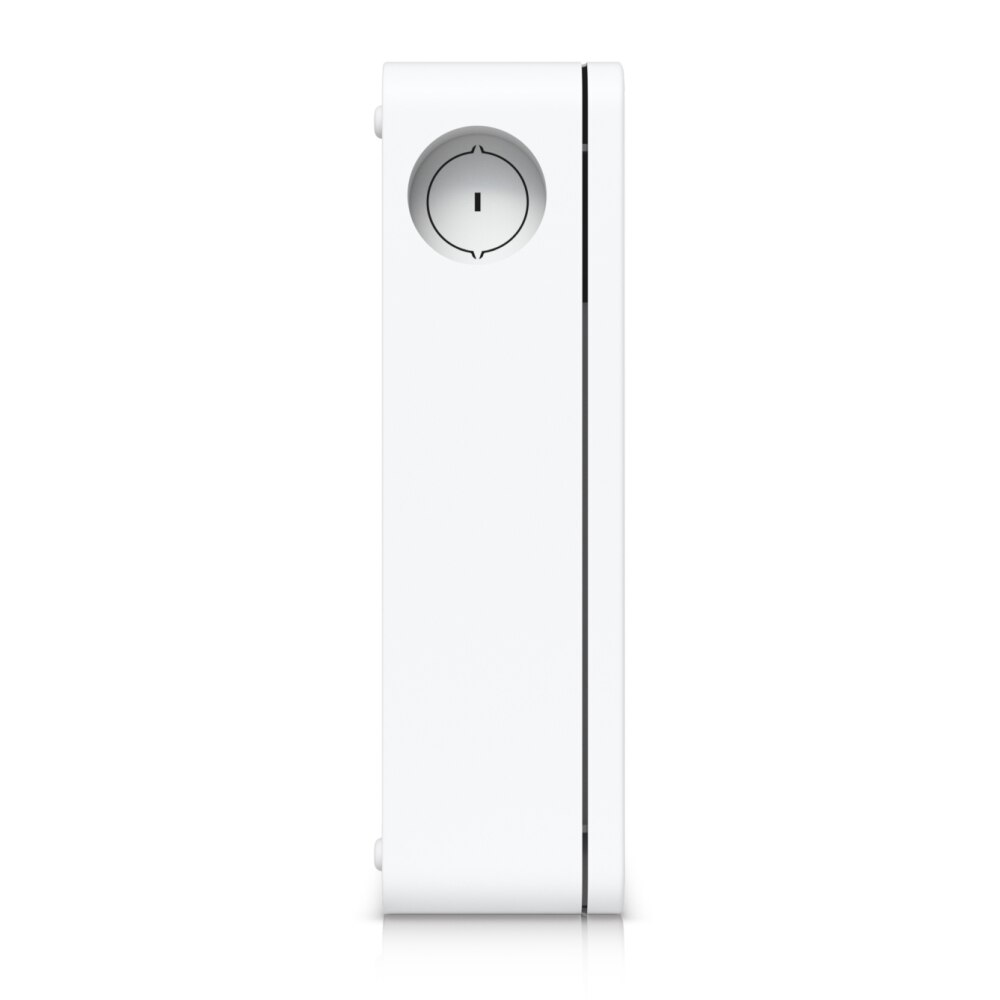

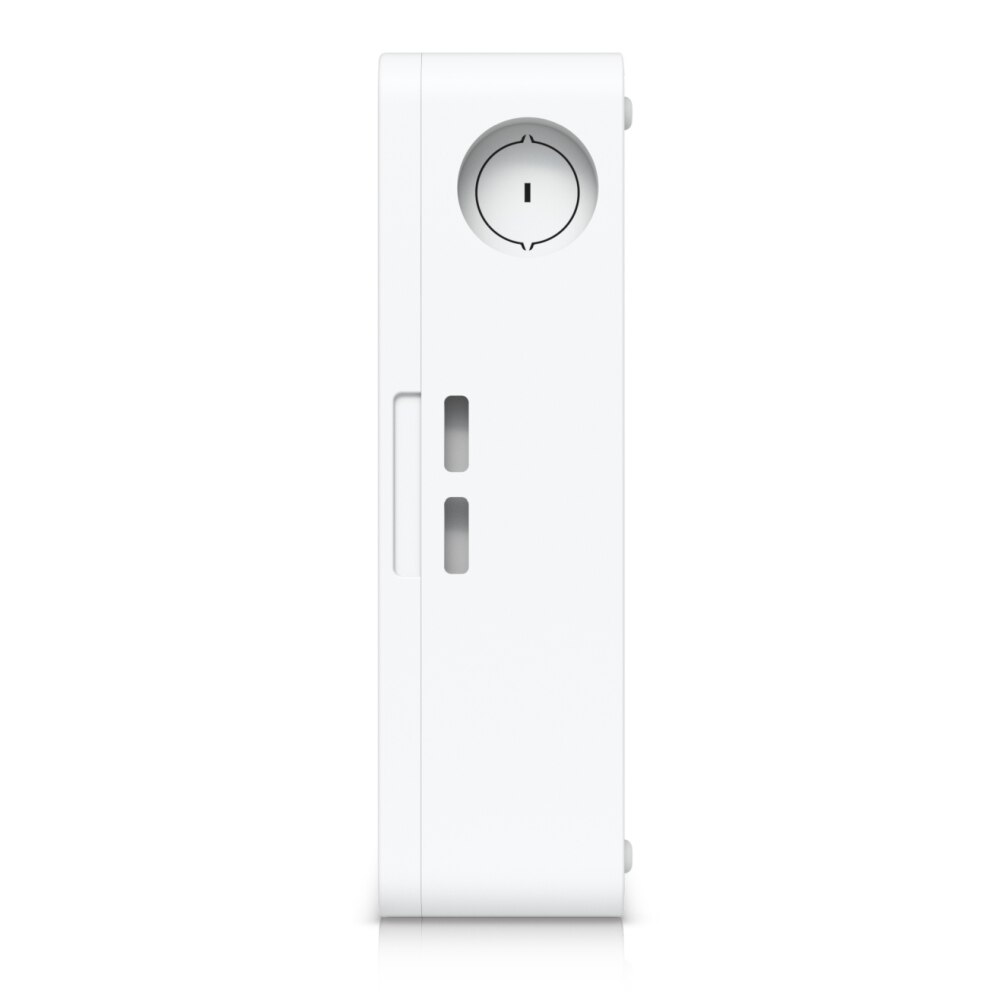

Ubiquiti Networks EAH-8 Enterprise Access Hub (EAH-8)
- Brand: Ubiquiti Networks
- P\N: EAH-8
Live Chat
Contact Us
Description
Ubiquiti Networks EAH-8 Enterprise Access Hub (EAH-8)
Enhance your enterprise security with the Ubiquiti Networks EAH-8 Enterprise Access Hub. This robust solution is designed to streamline access control and security management in a highly efficient manner.
Key Features

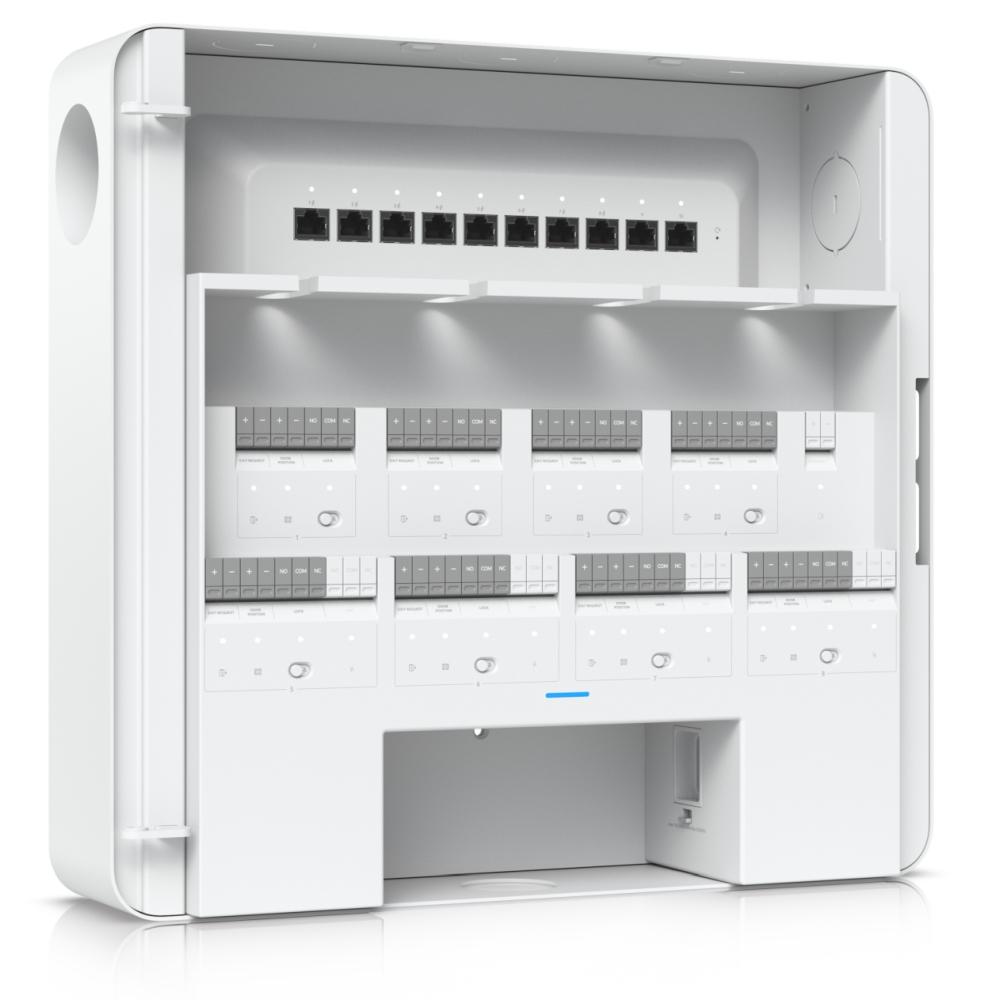

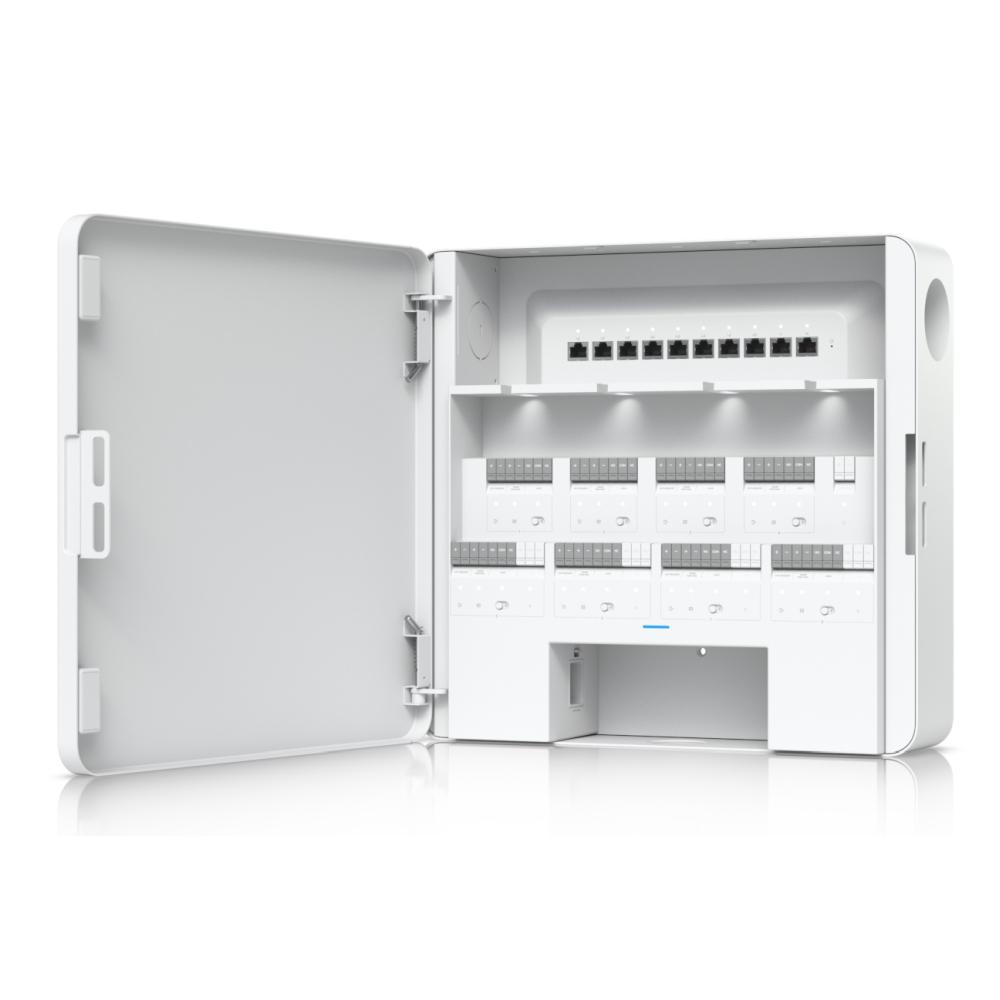

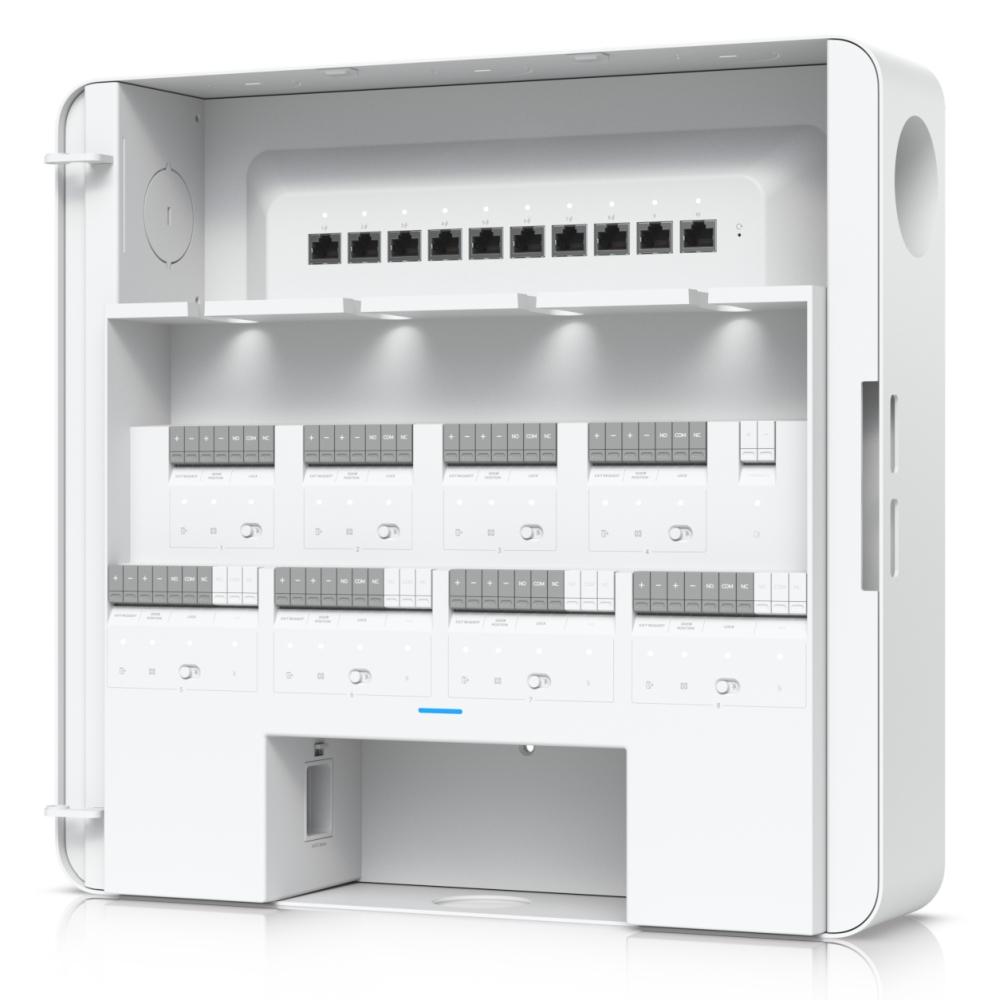

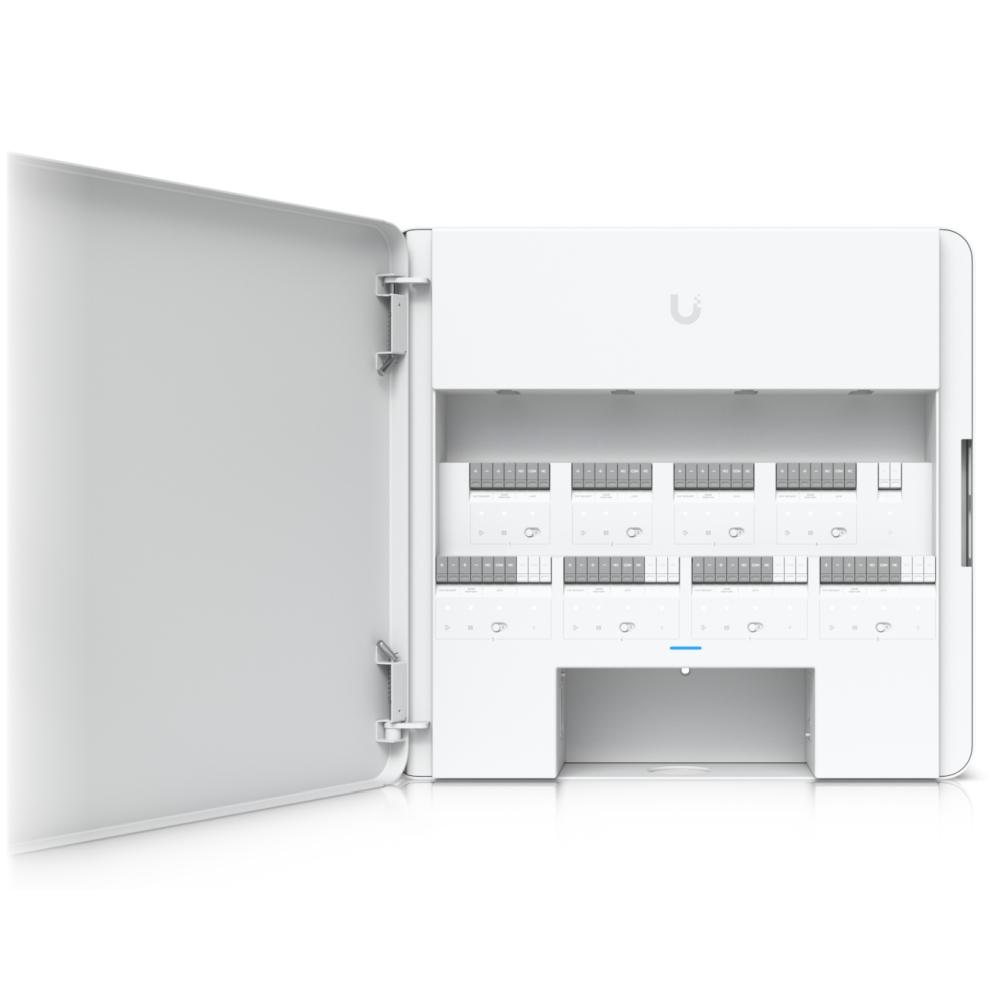

- Multiple Lock Terminals: Features eight lock terminals with options for 12V or Dry connections, providing versatile integration with security systems.
- Expanded Input Options: Includes sixteen inputs for request-to-exit devices and door position sensors, enhancing security and control.
- Power Over Ethernet Ports: Eight PoE ports allow easy connection to access readers, simplifying installation and reducing cable clutter.
- Auxiliary Terminals: Four auxiliary terminals for chimes, sirens, or door openers, offering extended utility and customization.
- Battery Backup Input: Supports a battery backup input from 32 to 48V, ensuring your system remains operational even during power outages.
The EAH-8 is not just a piece of hardware; it's a gateway to safer and more efficient workplace environments. Its integrated technology and user-friendly features ensure that your enterprise is equipped for the challenges of modern security management.
Upgrade your security infrastructure with the Ubiquiti Networks EAH-8 Enterprise Access Hub. Ensure your business is safeguarded with advanced technology that meets the demands of professional environments. Discover how this access hub can transform your enterprise security system today.
What's in the Box:
Interested in learning more about this product?Check out our blog!Features
Enterprise-grade access hub with entry and exit control up to eight doors and battery backup support.
(8) Lock terminals (12V or Dry)
(8+8) Inputs for request-to-exit devices and door position sensors
(8) PoE ports for Access Readers
(4) AUX terminals for chimes, sirens, or door openers
(1) Battery backup input (32–48V)Specifications
| Mechanical | |
|---|---|
| Dimensions | 379 x 355 x 105 mm (15 x 14 x 4.1") |
| Weight | Device: 9.1 kg (20 lb) Mount: 624 g (1.4 lb) |
| Enclosure material | SGCC housing with PC cover |

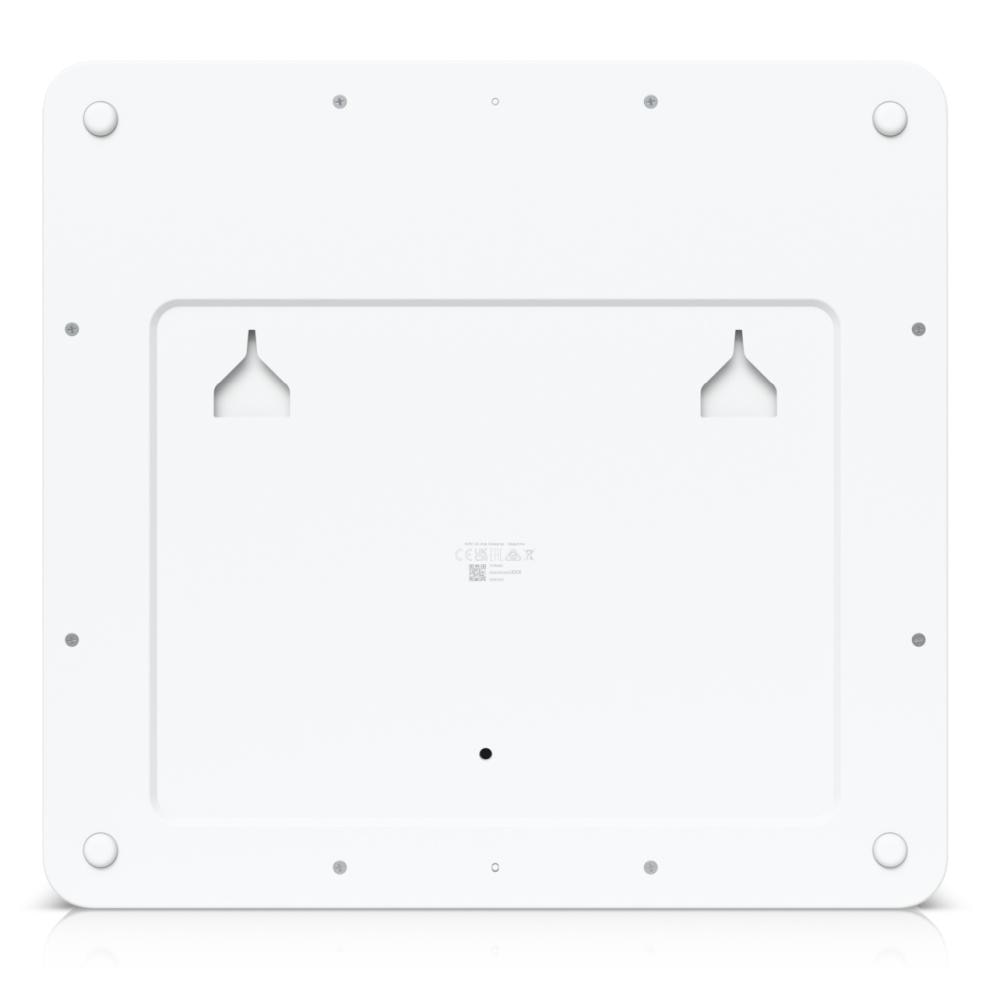

| Mounting material | SGCC wall mount plate |
| Hardware | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Networking interface | (10) 10/100/1000 Base-T | |||||||||||||||||||||||||
| Power method | Universal input, 100–240V AC, Max. 4.4A, 50/60Hz 32–48V DC Lead Acid Battery, Max. 7.5A @32V | |||||||||||||||||||||||||
| Power supply | AC/DC, internal | |||||||||||||||||||||||||
| Max. power consumption | 240W | |||||||||||||||||||||||||
| PoE interface | (8) PoE (Pins 1, 2+; 3, 6-) | |||||||||||||||||||||||||
| Voltage range PoE mode | 44–57V DC | |||||||||||||||||||||||||
| Total available PoE | 60W | |||||||||||||||||||||||||
| Max. PoE wattage per port | 15.4W | |||||||||||||||||||||||||
| LEDs | System: white/blue Output relays: steady white Ethernet: flashing white | |||||||||||||||||||||||||
| Button | (1) Factory-reset | |||||||||||||||||||||||||
| Digital input | (8) Inputs for request-to-exit devices (8) Inputs for door position sensors (1) Emergency | |||||||||||||||||||||||||
| Dry output relay | (8) Lock terminals (12V or Dry) (4) AUX terminals for advanced setup (Chime/Siren/Door opener) | |||||||||||||||||||||||||
| Powered output relay | Lock: 12V DC, 1A/ Dry Aux: Dry only | |||||||||||||||||||||||||
| Recommend max. cable length |
| |||||||||||||||||||||||||
| Operating environment | Indoor use only | |||||||||||||||||||||||||
| Ambient operating temperature | 0 to 40° C (32 to 104° F) | |||||||||||||||||||||||||
| Ambient operating humidity | 5 to 95% noncondensing | |||||||||||||||||||||||||
| UL 294 level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I | |||||||||||||||||||||||||
| UL 294 statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. | |||||||||||||||||||||||||
| PoE cabling requirements | Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2) for patch cords; 24 AWG (0.21 mm2) for horizontal or riser cable. | |||||||||||||||||||||||||
| CAN/ULC-60839-11-1 Grade | Grade assignment: I | |||||||||||||||||||||||||
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 | |||||||||||||||||||||||||
| Document number, and issue date and/or revision level | EAH-8, Ver 01 | |||||||||||||||||||||||||
| LED | |
|---|---|
| System | Steady blue: adopted, device is ready Steady white: pending adoption Blinking white/blue: upgrading firmware Breathing white: system initiating |
| Software | |
|---|---|
| Management application | UniFi Access: Version 1.22.17 and later |
