Ultra LP Low PIM Ceiling Mount Antenna CBRS (CFSA69383P-30NF)
- Brand: Laird Connectivity
- P\N: CFSA69383P-30NF
- UPC: 646444322928
Live Chat
Contact Us
Description
Ultra LP Low PIM Ceiling Mount Antenna CBRS (CFSA69383P-30NF)

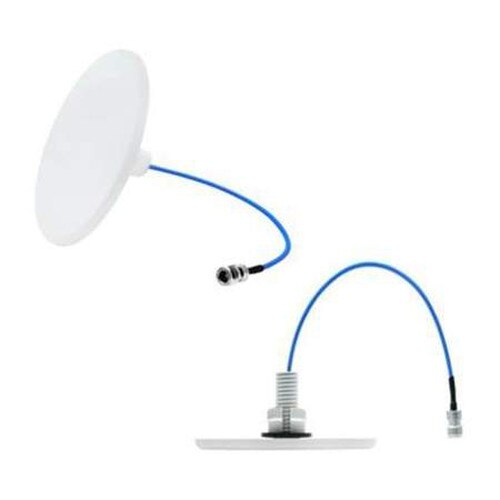

LAIRD's CFSA69383P-30NF low PIM indoor wideband omnidirectional low profile ceiling mount antenna in white. This antenna is designed to provide pattern coverage that is optimized for indoor coverage requirements at 698 – 960 MHz, and 1690 – 3800 MHz for the CBRS, GSM, DCS, UMTS, AWS-3, and LTE / WiMAX frequency bands.
The surprisingly small size and extreme low-profile enables maximum mounting flexibility while maintaining desired in-building aesthetics. It features linear horizontal polarization, 50 Ohm, and 50 W maximum power at ambient 25 degrees Celsius It has a 12 inch cable with N Female connector. Ceiling tile mounting. RoHS compliant.
Applications include: FirstNet/Public Safety, Small cells, Meeting rooms, Offices, Hotels, Museums, iDAS, Libraries, Retails malls, Bus terminals and train stations, along with other in-building areas
Specifications
| Item Weight | 0.5 lb |
| Item Height | 0.3 inch |
| Item Width | 7.1 inch |
| Item Length | 7.1 inch |
| Maximum Power (W) | 50 |
| PIM Minimum | -160 dBc |
| RF Connectors | N Female |
| Specific Frequency | 698-960 MHz, 1350-1550 MHz, 1690-3800 MHz |
