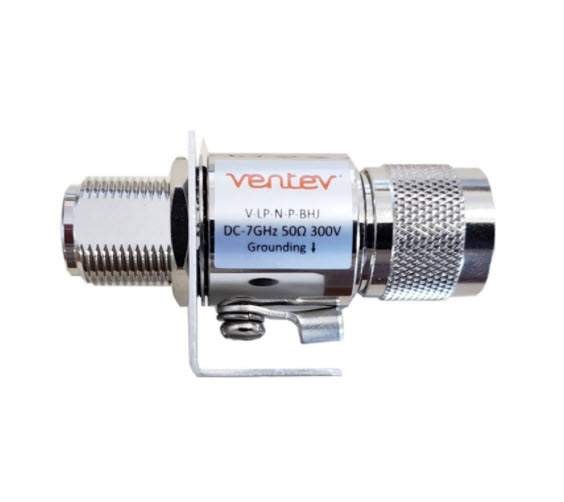

Ventev 0-7 GHz Lightning Arrestor (V-LP-N-P-BHJ)

Ventev V-LP-N-P-BHJ 0–7 GHz N-Connector Lightning Arrestor

Help protect an outdoor RF coaxial connection from static buildup and surge energy with this Ventev bidirectional gas-discharge-tube arrestor. It is designed for systems operating from DC to 7 GHz.

Specifications

• N male to N female bulkhead connectors
• 50-ohm impedance
• IP67 ingress protection rating
• 300 V gas-tube spark-over voltage
• Ground connection through feedthrough or screw terminal; manufacturer recommends 11 AWG ground wire

Install and ground according to the equipment and site requirements. Confirm RF power and DC requirements against the full Ventev datasheet.
