Winegard Directional Yagi Antenna (YA7000D)
- Brand: Winegard
- P\N: YA7000D
Live Chat
Contact Us
Description

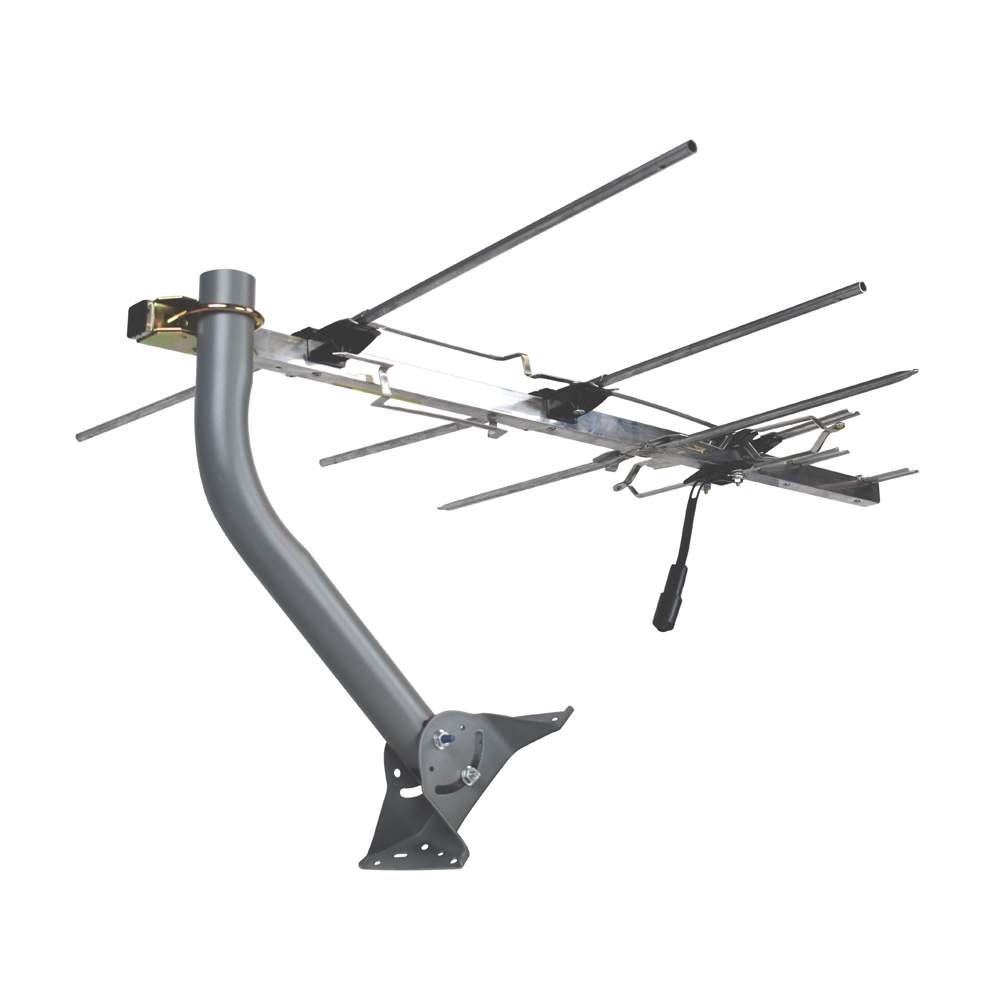

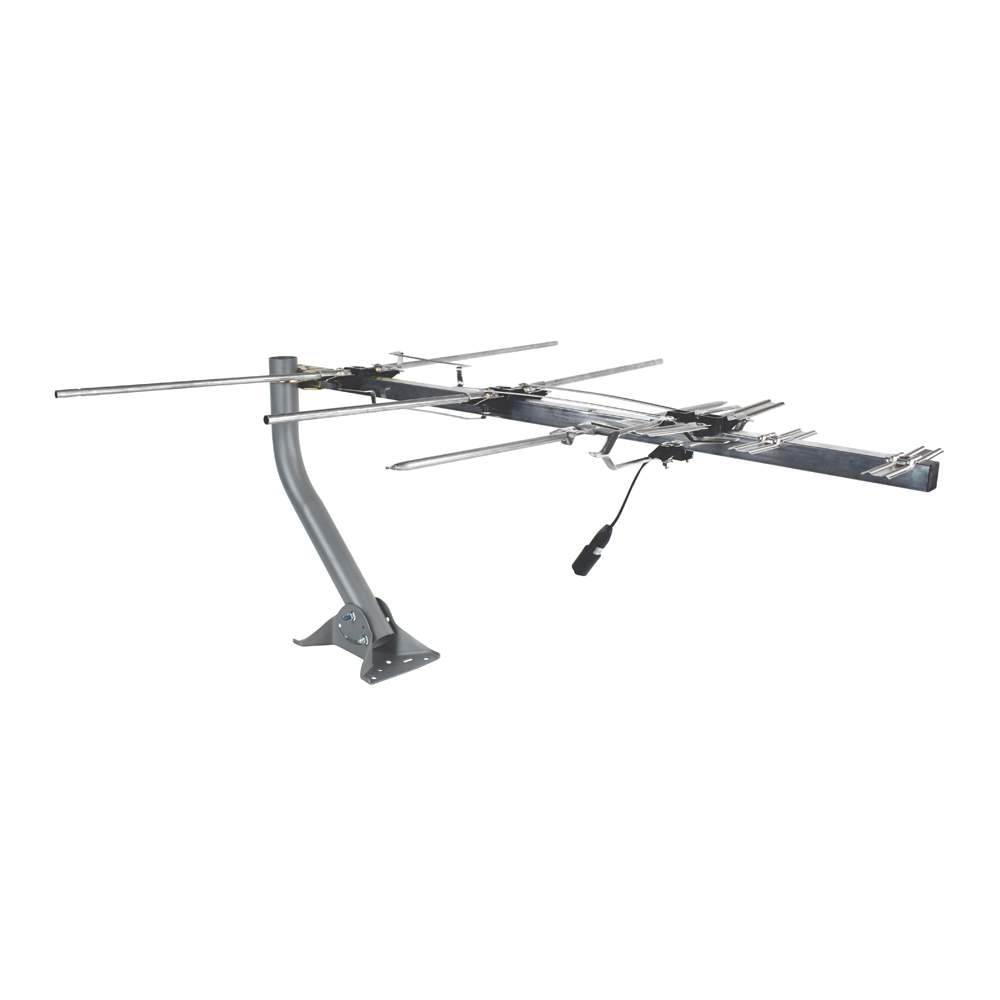

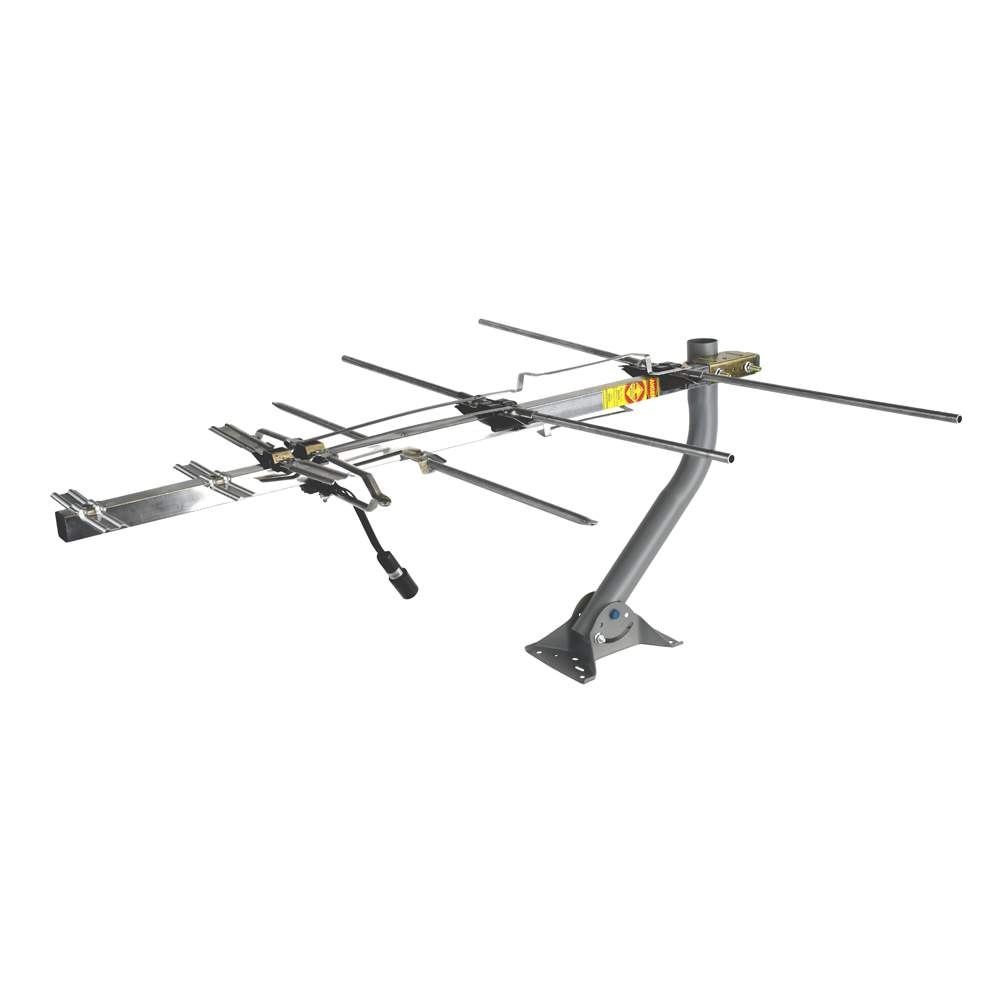

Winegard Directional Yagi TV Antenna (YA7000D)
Best For
Outdoor over-the-air TV installations where the desired broadcast towers are generally in the same direction and a compact directional antenna is appropriate.
Why Choose the Winegard YA7000D?
The YA7000D uses a directional Yagi design with fold-and-lock elements and low-band VHF extensions. Existing product information also identifies it as a replacement option for the HD7000R, GS-1100, and GS-2200.
Key Benefits
- Directional outdoor TV antenna
- Compact fold-and-lock design
- Low-band VHF extensions
- Uniform gain curve and increased front-to-back ratio described in existing product information
- NextGen TV compatible as listed in the product features
- Universal mounting pipe and foot included
Who Should Buy the YA7000D?
Viewers who have checked their local broadcast frequencies and tower directions and need a directional outdoor antenna. Reception distance is site-dependent; the legacy 70-mile figure is not a guarantee and varies with terrain, tower power, antenna height, obstructions, cabling, and interference.
What's Included
- YA7000-series antenna
- Universal mounting pipe and foot
- Hardware bag
- Printed documentation
Learn more:Visit the Solid Signal blog for Winegard articles.
Features
- NextGen TV Compatible
- Compact, long range outdoor antenna provides free programming from 70 miles away
- Simple setup and operation with fold-and-lock antenna elements
- Watch what you want without the expensive monthly cable bill
Specifications
- Antenna Directivity: Directional
- Reception Types: VHF/UHF
- High VHF (Very High Frequency): Provides channels 7-13 in the frequency range 174-216 MHz.
- UHF (Ultra High Frequency): Provides channels 14-36 in the frequency range 470-608 MHz.
- Compatible with any streaming device with over-the-air integration, TV, DVR, or computer with a digital tuner.
- To receive programming, run a channel scan on your TV after setting up the antenna. To keep your channel lineup up to date, it is a good idea to run a channel scan monthly and anytime a channel is lost.
- Weight: 4.80 lbs.
- Height: 4.75 Inches
- Width: 38.75 Inches
- Depth: 6.75 Inches
Downloads
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reviews
5 reviews
Worth the cost.
by James B.
Excellent product and excellent company. Great quality and solid signal did a great job on answering my questions.
Wingard Antenna
by Ken
Very happy with the performance of this antenna.
The best antenna available
by Greg
I needed an antenna that could get 3 low VHF channels in the Milwaukee area. This antenna was one of few that can do that. Most are not capable of low VHF. This antenna does the job and I'm very pleased with it. Solid Signal shipped quickly and I would buy from them again.
Great antenna
by Kenny Shelton
All I wanted was to receive the UHF and VHF antennas in my market. I always needed 2 antennas to achieve this until now. This antenna really gets the job done. Very pleased. I’m 66 miles away from the TV towers. Highly recommend.
Good performance, poor construction
by Rick
The antenna I received had a manufacturing defect. The rivet that holds the third parasitic element (counting from the front) was not installed correctly so the element was loose and wobbled freely. I had to drill out the loose rivet and install an aluminum machine screw to hold the element securely. The antenna performs well for my location and I was able to get a nearby low VHF channel (4) without adding all the longer low VHF elements, which was very convenient.
