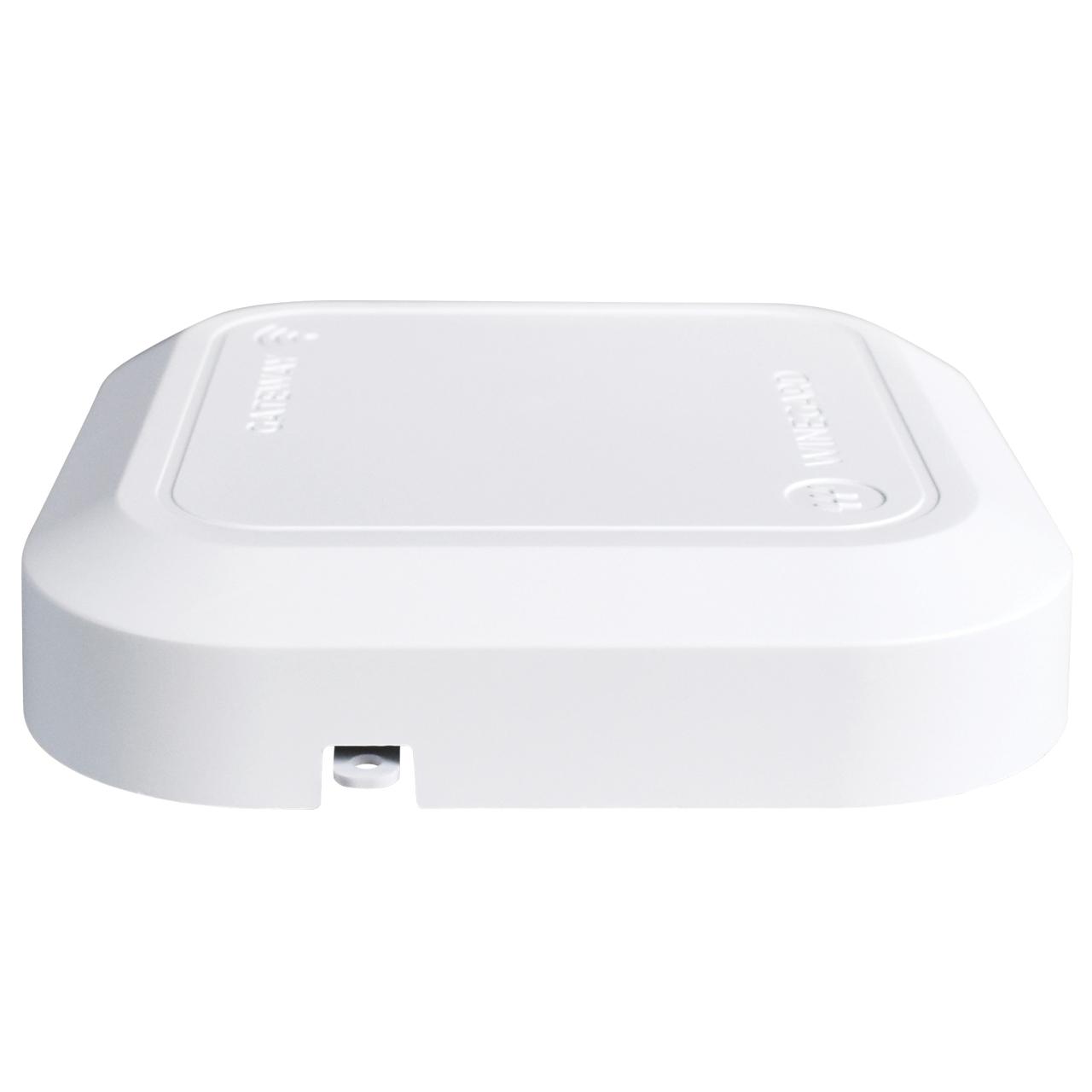

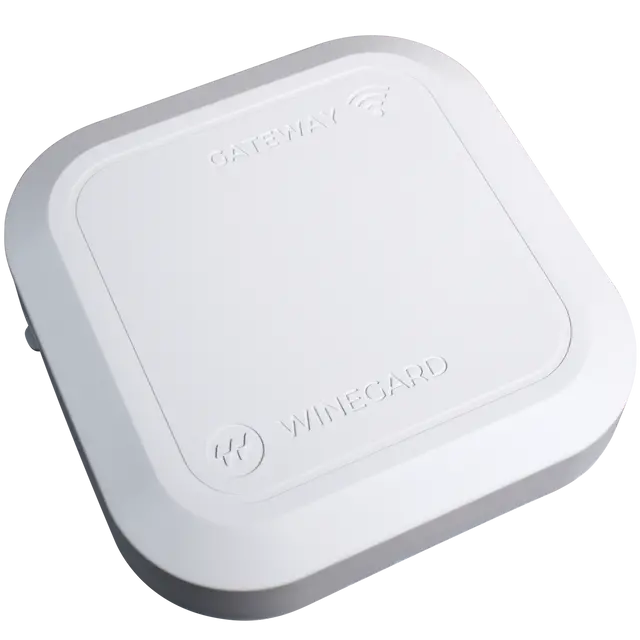

Winegard Gateway 4G Router (GW-1000)

Winegard Gateway 4G LTE WiFi Router (GW-1000)

Best For

Compatible RV installations equipped with a Winegard AIR 360+ antenna and needing a mobile WiFi/cellular connectivity hub.

Why Choose the GW-1000?

The Gateway is designed to integrate with compatible Winegard AIR 360+ systems to add cellular and WiFi routing for connected devices inside an RV.

Key Benefits

• Designed for compatible Winegard AIR 360+ installations
• 4G LTE cellular connectivity described in existing information
• WiFi routing for connected devices
• Existing information references carrier and Winegard FreedomGO service options

Who Should Buy the GW-1000?

RV owners who have confirmed AIR 360+ compatibility, cellular carrier/service-plan support, SIM/account requirements, current network bands, installation location, power, and coverage needs.

What's in the Box

• Winegard Gateway 4G LTE WiFi Router
• Mounting plate
• Installation hardware
• Power cable
• Printed documentation

Current-Compatibility Note

The existing description includes broad carrier, Starlink-integration, and up-to-0.5-mile WiFi claims. Because service support and integrations can change, verify current Winegard documentation and service compatibility before purchase.

Read Solid Signal's Winegard articles.

• Enable connectivity for your Air 360+
• Easily create a connectivity hub for your home on wheels
• Entertain and work from wherever the road takes you
• Starlink compatible to integrate all your internet sources
• Reduce outages by using all of your internet connections
• Winegard AIR 360⁺ or AIR 360⁺ 5G required (sold separately or RV Manufacturer installed)

• Connectivity Types: 4G, WiFi, Starlink*
• Setup Requirements: Wireless 802.11 b/g/n 2.4 GHz network; Winegard AIR 360+ antenna; computer, tablet, or smartphone with a web browser; *requires Starlink terminal connected via ethernet WAN
• Wireless Standard: 802.11b/g/n
• Wireless Speed: 2.4 GHz: 450Mbps (Rx), 450 Mbps (Tx)

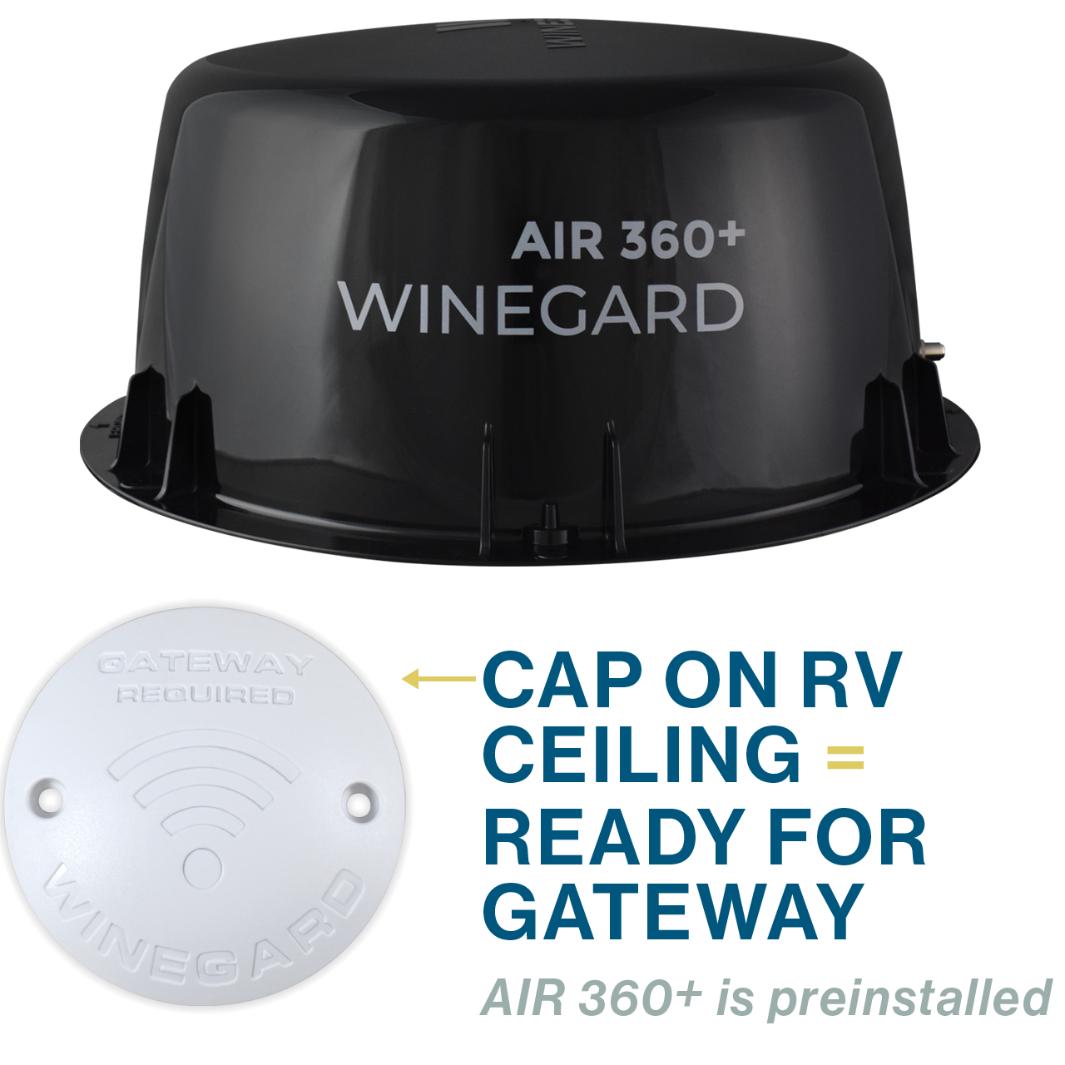

• Mounting: Installs on RV ceiling (remove cap indicating AIR 360+ is installed)
• Wireless Security: WPA, WPA2, WPA mixed
• Max WiFi Range: Up to .5 mi.
• Max 4G LTE Speed: 150 Mbps download
• SIM Card Port: Mini SIM (2FF) - (25mm x 15mm x 0.76mm)
• Power Rating: DC 9-16V, 1A
• Frequency Band: 2.4 GHz
• WiFi Antennas: (2) in Gateway & (1) in Air 360+
• 4G LTE Antennas: (2) in AIR 360+ GPS, (1) in Gateway
• Complimentary: Telephone and email support
• Online: Technical manuals and instructions
• Support: Large Dealer Support Network
• Warranty: 2-Year Parts, 1-Year Labor Warranty
• Weight: 1.38 LBS
• Height: 1.88 Inches
• Width: 10.50 Inches
• Depth: 8.50 Inches
