Winegard Replacement Power Inserter, for Carryout G3 and G2+ (PI-GM60)

Winegard PI-GM60 Satellite Power Inserter and Cable Extender

Best For

Replacing the power inserter on compatible Winegard Carryout G2+ and G3 antennas or adding in-line power support to compatible DISH Playmaker and Pathway installations.

Why Choose the Winegard PI-GM60?

The PI-GM60 powers compatible portable satellite antennas through the coaxial connection and supports provider selection on compatible Carryout systems. It can also help support longer coax runs on compatible Playmaker and Pathway installations.

Key Benefits

• Replacement power inserter for Carryout G2+ and G3
• Add-on accessory for compatible DISH Playmaker and Pathway antennas
• 24 VDC power supply included
• 36-inch jumper cable included
• Supports provider selection on compatible Carryout systems

Who Should Buy the PI-GM60?

Owners or installers servicing compatible Winegard portable satellite systems who need the specified replacement/add-on power inserter.

Installation Notes

1. Use a compatible antenna coaxial cable between the antenna's primary port and the power inserter's antenna port; this antenna coax is not included.
2. Connect the included 36-inch coax jumper between the receiver SAT IN and the power inserter's receiver port.
3. Connect the included power adapter to a 110/120 VAC outlet and the power inserter.

Provider-switch settings differ by antenna and service. Follow the PI-GM60 instructions for the correct switch configuration.

What's Included

• Power inserter
• 24 VDC power supply
• 36-inch jumper cable
• Printed documentation

Learn more:Visit the Solid Signal blog for Winegard articles.

• Replacement power inserter
• Compatible with Carryout G2+ and G3
• Add-on accessory for DISH Playmaker and Pathway
• Get additional power to your satellite antenna

TECH SPECS

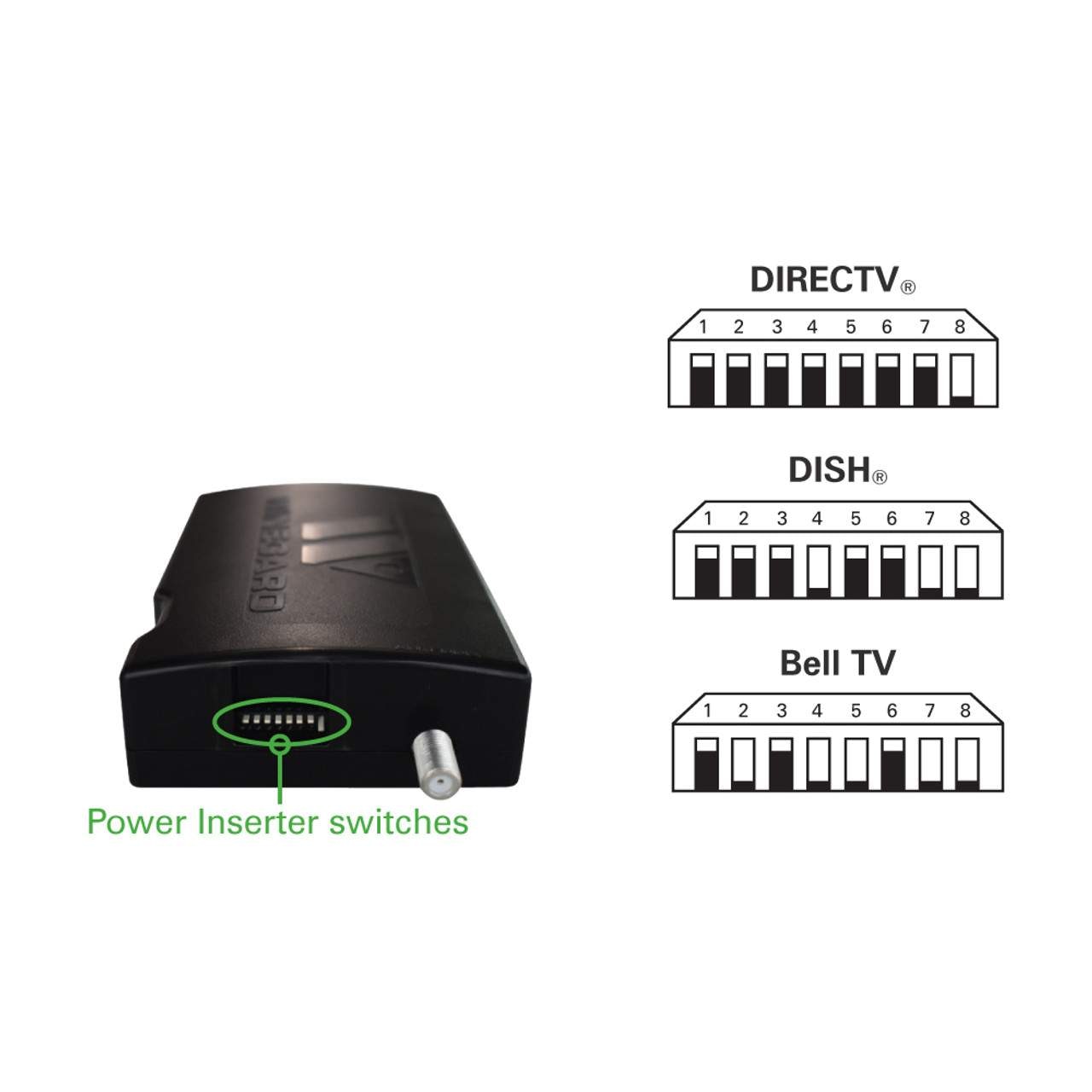

• Carryout antennas: Compatible with DIRECTV, DISH, and Bell TV programming. The PI-GM60 power inserter settings are preset for DIRECTV programming. To set your Carryout antenna for DISH or Bell TV programming, locate the switches on the power inserter and set according to the diagram located on the PI-GM60 instruction sheet
• DISH Playmaker and Pathway series antennas: Only compatible with DISH programming. The
  PI-GM60 power inserter settings are preset for DIRECTV programming. To set your antenna for DISH programming, locate the switches on the power inserter and set according to the diagram located on the PI-GM60 instruction sheet
• Coax Length: The length of coaxial cable you can add to your configuration will vary depending on the length and quality of coaxial cable inside your coach/cab. If you have copper-coated steel coax in your coach/cab, you can add up to 75 feet of solid copper coax; however, if your coach/cab has solid copper coax, you can add up to 125 feet of solid copper coax to your configuration
• Complimentary: Telephone and email support
• Online: Technical manuals and instructions
• Support: Large Dealer Support Network

Package Dimensions and Weights

• Weight: 1.30 LBS
• Height: 5.38 Inches
• Width: 7.25 Inches
• Depth: 6.25 Inches

Warranty:

• 1-Year Limited Warranty
