A-Neuvideo UHD 4K30 HDMI over Cat 6/5e Extender Set (ANI-HDB70X)

  • Brand: A-NeuVideo
  • P\N: ANI-HDB70X
  • UPC: 859777007596
(0)No Reviews yet

Availability: In Stock


Your Price: $148.50

Do you have questions?

Please contact our experts for assistance.

Description

A-Neuvideo UHD 4K30 HDMI over Cat 6/5e Extender Set (ANI-HDB70X)

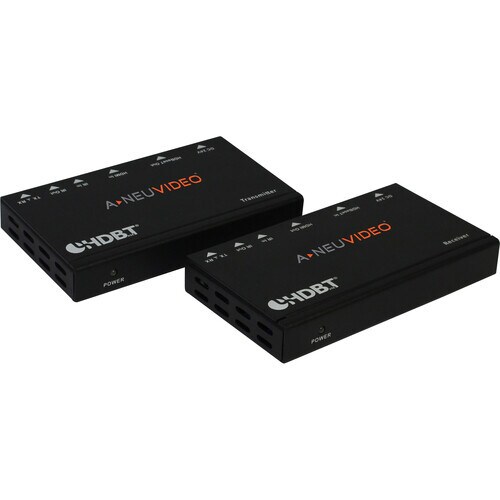

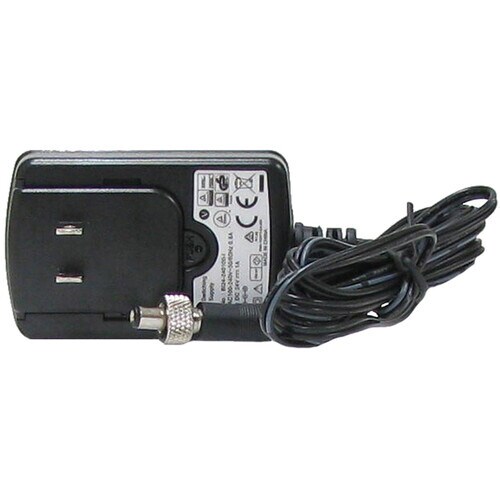

The UHD 4K30 HDMI over Cat 6/5e Extender Set from A-Neuvideo is a single HDMI signal transmitter/receiver set with bidirectional RS-232 and IR control. It transmits a UHD 4K30 signal with embedded audio 131 feet over HDBaseT output via a Cat 6 cable, sold separately. Full HD 1080p60 36-bit can be sent 230', and 1080p60 48-bit and 1080p120 24-bit up to 131 feet. A single power supply is included and can be used on either the transmitter or receiver side while both units are powered via PoC.

Key Features

  • Power-over-Cable (PoC): Only one side needs to be plugged into a power outlet (less than 10W PoC power consumption)
  • HDMI input, HDBaseT output, and bidirectional RS-232 and IR
  • 131 feet UHD 4K30 and 1080p120 transmission; up to 230 feet 1080p60

Specifications

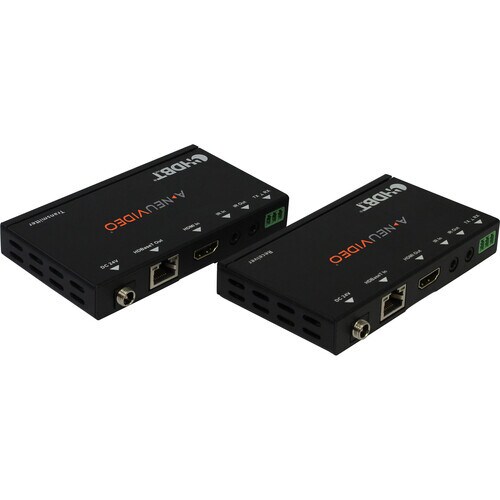

Transmitter Interfaces
Inputs
1x HDMI
Embedded Audio Input
HDMI
Outputs
1x RJ45 (HDBaseT)
Transmitter Other I/O

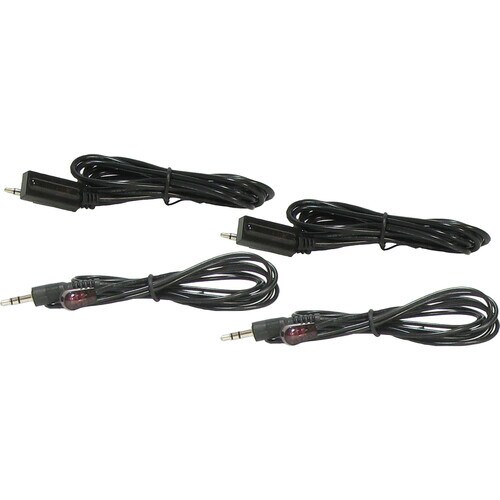

1x 1/8" / 3.5 mm IR Input
1x 1/8" / 3.5 mm IR Output
1x Block 3-Pin RS-232
Receiver Interfaces
Inputs
1x RJ45 (HDBaseT)
Outputs
1x HDMI
Embedded Audio Output
HDMI
Receiver Other I/O
1x 1/8" / 3.5 mm IR Input
1x 1/8" / 3.5 mm IR Output
1x Block 3-Pin RS-232
Transmission
Max Transmission Distance
UHD 4K at 30 Hz:
131' / 39.9 m
1080p at 60 Hz:
230' / 70.1 m (via Cat 6)
Video Format
HDMI
UHD 4K: 30 fps
1080p: 30/60/120 fps
Power
Transmitter Power I/O
1x Barrel (24 VDC at 1 A) Input
Receiver Power I/O
1x Barrel (24 VDC at 1 A) Input
General
Operating Conditions
32 to 72°F / 0 to 40°C at 20 to 90% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C
Transmitter Dimensions
4.5 x 2.6 x 0.7" / 115 x 65 x 17 mm
Receiver Dimensions
4.5 x 2.6 x 0.7" / 115 x 65 x 17 mm
Transmitter Weight
3.5 oz / 100 g
Receiver Weight
3.5 oz / 100 g
Packaging Info
Package Weight
1.795 lbs.
Box Dimensions (LxWxH)
8.6 x 6.4 x 2.9"
