Altelix NF141208VAU - 14x12x8 Vented Fiberglass Weatherproof NEMA Enclosure with 100-240 VAC Universal Power Outlet

Altelix NF141208VAU Vented Weatherproof NEMA Enclosure with 100-240VAC Power and Aluminum Equipment Plate

Best For

The Altelix NF141208VAU is a vented Weatherproof NEMA Enclosure with 100-240VAC Power and Aluminum Equipment Plate.

Why Choose the NF141208VAU?

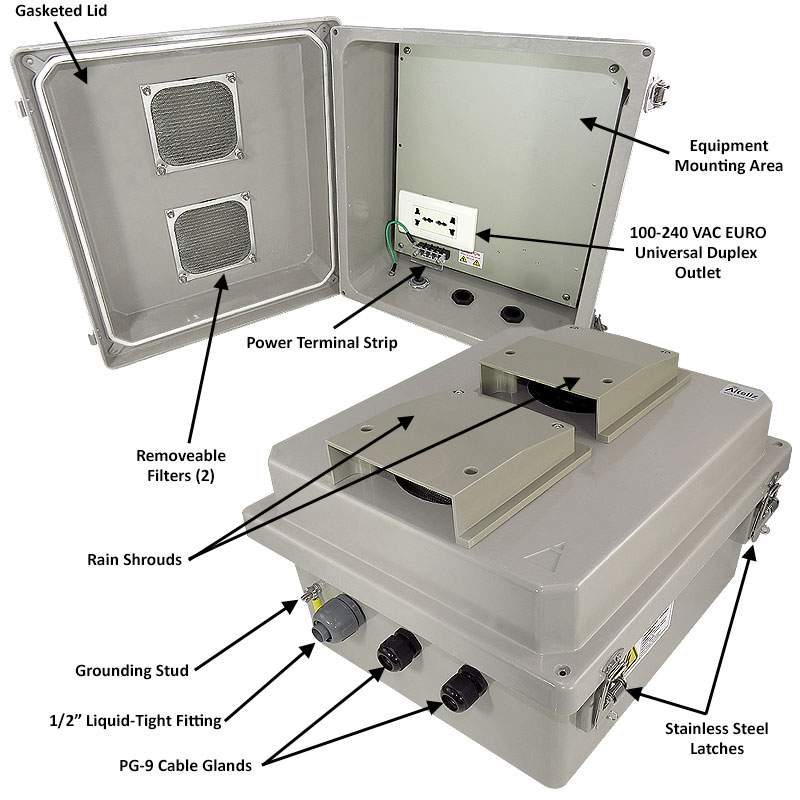

This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features a stainless steel continuous door hinge and stainless steel latches with provision for padlocks. The door is fully gasketed making this enclosure suitable for use indoors or outdoors. This enclosure is 8 inches deep and features an extended lid for an increased equipment clearance. This configuration consists of the fiberglass NEMA enclosure with hinged lid and a 2.5mm thick finished aluminum plate with a pre-wired 100-240VAC duplex universal power outlet. A terminal strip and ground lug are provided for simplified wiring on-site. One 1/2" liquid-tight gland is provided for the AC supply along with two PG9 cable glands for low voltage wiring. This enclosure is designed to operate at the following voltages:

• 110VAC 50/60Hz
• 115VAC 50/60Hz
• 220VAC 50/60Hz
• 230VAC 50/60Hz
• 240VAC 50/60Hz

Designed for worldwide operation, the universal 100-240 VAC power outlet is compatible with the following countries' plug types: UK/Ireland BS 1363, Italy CEI 23-16/VII, Denmark Afsnit 107-2-D1, Euro plug (2-pin) CEE 7/16, and India BS 546. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements. To help expel heat from within the enclosure, this model features two 4 inch air vents with cleanable aluminum mesh screens which are covered by rain shields. Four removable stainless steel mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. Great for use in applications such as Worldwide Operation, Indoor / Outdoor WiFi Equipment, SCADA Remote Terminal Unit, Security and Surveillance Systems, Outdoor use of Indoor Equipment, Protection of Equipment from Theft or Damage, and Concealment of Electronic Equipment. Key Features

• Dual 4" Vents with Rain Shields to Expel Heat
• Fiberglass Reinforced Polyester, FRP
• Stainless Steel Latches with Padlock Hasps
• Includes Aluminum Equipment Mounting Plate with Universal 100-240VAC Duplex Outlets
• (4) Stainless Steel Mounting Feet Included
• NEMA Type 3R, 3RX / IP24 Rated

Key Benefits

• Molded from durable, UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating.
• Two 4 inch air vents with rain shields help expel heat.
• Stainless steel continuous door hinge with stainless steel latches that provide for padlocks.
• Fully gasketed door, suitable for indoor or outdoor use.
• 2.5mm thick finished aluminum plate included for mounting equipment.
• Extended lid for increased equipment clearance.
• 100-240VAC universal power outlet.

Who Should Buy the NF141208VAU?

The Altelix NF141208VAU Vented Weatherproof NEMA Enclosure with 100-240VAC Power and Aluminum Equipment Plate is ideal for protecting equipment from harsh environments and tampering.
