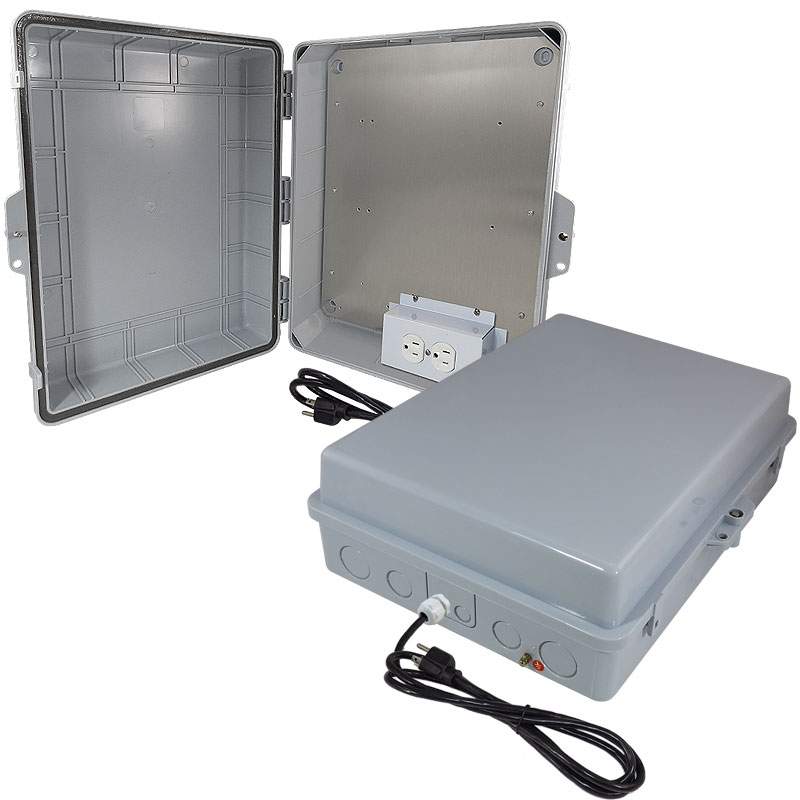

Altelix NP171406A1C - 17x14x6 PC + ABS Weatherproof Power Box NEMA Enclosure with 120V Power Outlets

The Altelix NP171406A1C NEMA Weatherproof Enclosure with 120VAC Power and Aluminum Equipment Plate is ideal for protecting equipment from harsh environments and tampering. This enclosure is IP55 rated and features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. Internal and external electrical ground points are also provided.

These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.

This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 2.0mm thick aluminum plate with two 120VAC power outlets. A 5 foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. A ground lug is provided on the side of the enclosure. Knock-outs on two sides of the enclosure are provided for additional wiring. Cable grommets are included with the accessory kit. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements. Can be wall mounted using the included wall anchors.

Key Features

• PC+ABS Polycarbonate / ABS Blend
• Gasketed Lid with Tamper-Proof Locking Screw
• Dual Door Latches
• Includes Aluminum Mounting Plate with 120VAC Outlets
• Pre-wired 5 foot power cord
