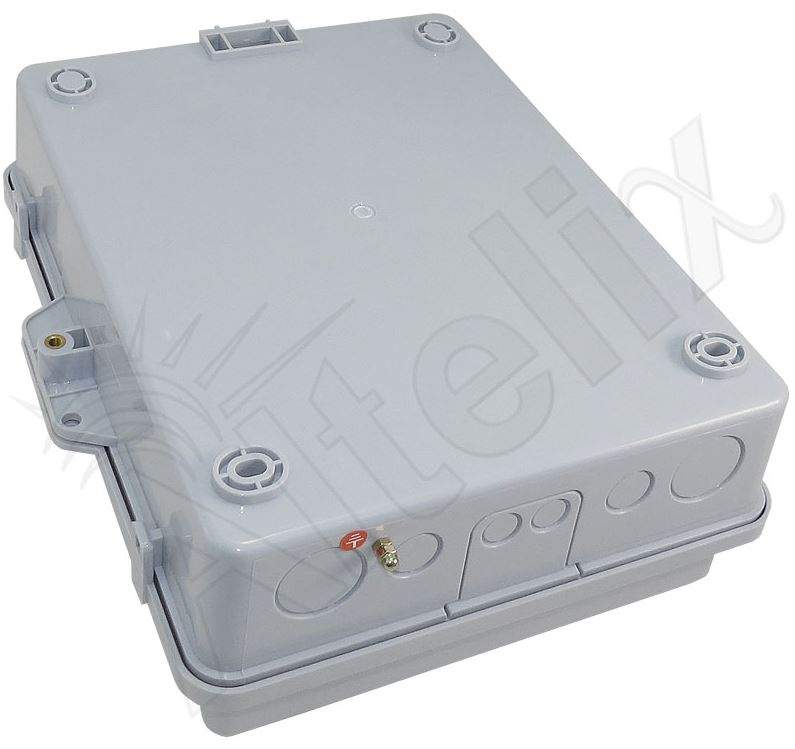

Altelix NP141105VP - 14x11x5 Polycarbonate + ABS Vented Weatherproof NEMA Enclosure with Aluminum Mounting Plate

The Altelix NP141105VP 14x11x5 Inch Vented Polycarbonate + ABS NEMA Weatherproof Enclosure is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside. These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.

This enclosure is IP24 rated and features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. Internal and external electrical ground points are also provided. This configuration consists of the PC+ABS enclosure with hinged lid and a 2.0mm thick aluminum plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

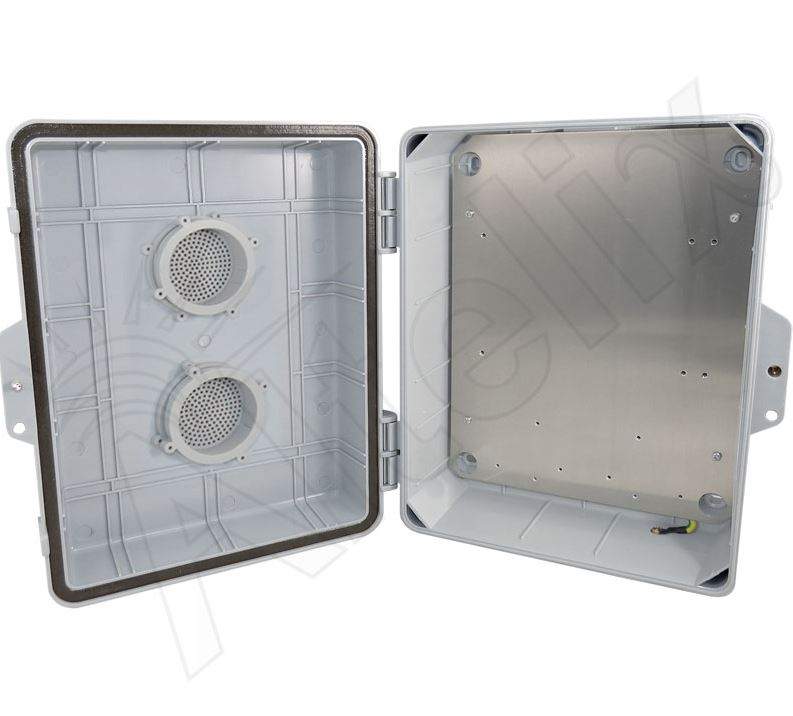

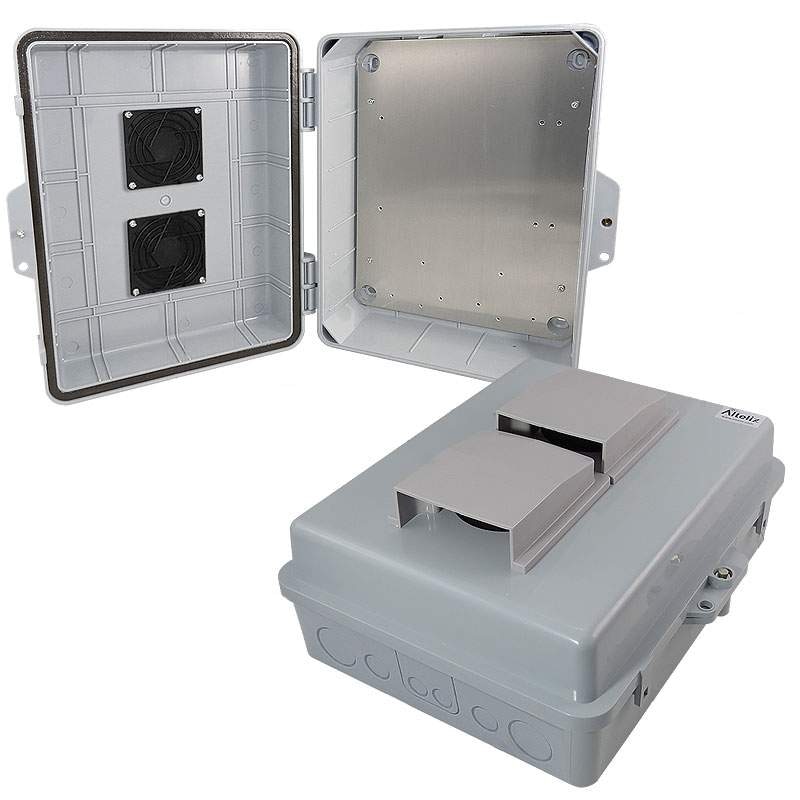

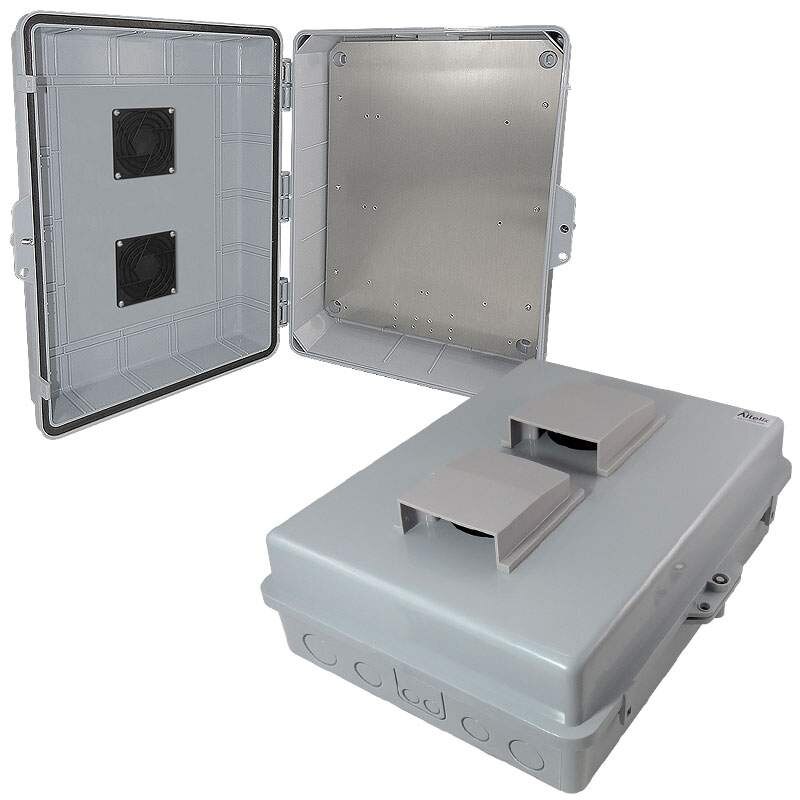

This enclosure features two 3.5 inch air vents with removable fan mounting rings. The fan mounting ring is for use with standard 80mm fans. Rain shields help prevent rain water from entering the enclosure. The enclosure can be wall mounted using the included wall anchors.

Key Features

• Dual 3.5” Vents with Rain Shields to Expel Heat
• PC+ABS Polycarbonate/ABS Blend
• Gasketed Lid with Tamper-Proof Locking Screw
• Dual Door Latches
• Aluminum Mounting Plate
