Altelix NFC241609VFA1C - 24x16x9 Vented Fiberglass Weatherproof NEMA Enclosure with Dual Cooling Fans and 120 VAC Outlets & Power Cord

Best For

The Altelix NFC241609VFA1C is designed for installers and system integrators who need to protect and power electronic equipment in indoor or outdoor locations while providing active ventilation. It is well suited for Wi-Fi and network equipment, SCADA and remote terminal equipment, security and surveillance systems, and other electronics that benefit from a weather-resistant enclosure with built-in 120VAC power and cooling fans.

Why Choose the Altelix NFC241609VFA1C?

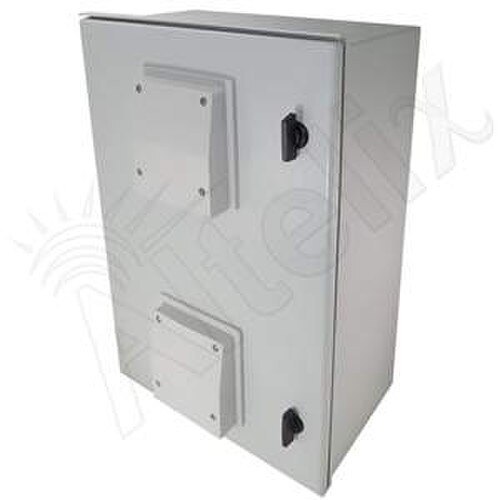

This 24 x 16 x 9-inch class fiberglass enclosure combines equipment protection, internal power, mounting space, and thermostat-controlled ventilation in one ready-to-install configuration. The enclosure is molded from UV-resistant fiberglass reinforced polyester (FRP), has a fully gasketed door, reinforced hinges, dual quarter-turn latches, and a drip rail above the door.

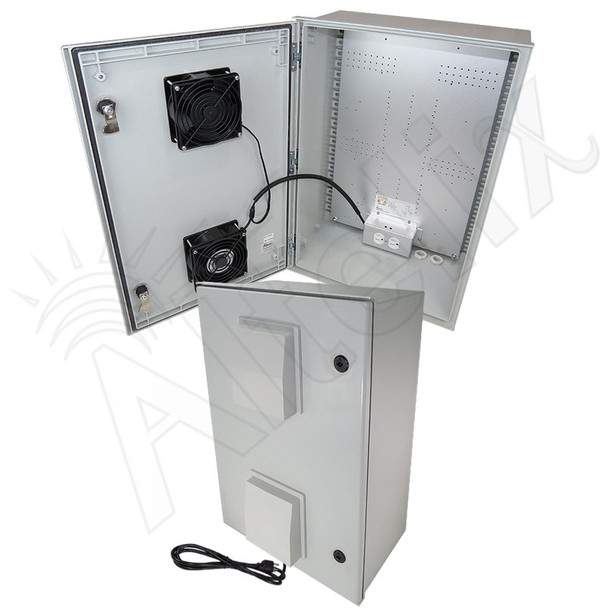

Inside, two pre-wired 120VAC outlets and a 5-foot pre-wired power cord provide convenient power for installed equipment. A 0.10-inch aluminum equipment mounting plate provides a secure surface for components, while dual 4-inch vents with thermostat-controlled cooling fans help remove accumulated heat. The fans turn on at approximately 100°F (38°C) and turn off at approximately 79°F (26°C).

Key Benefits

• Dual thermostat-controlled cooling fans with rain shields
• Two pre-wired 120VAC internal power outlets
• 5-foot pre-wired power cord
• 120VAC / 10A maximum equipment load
• UV-resistant fiberglass reinforced polyester construction
• 0.10-inch aluminum equipment mounting plate
• Dual quarter-turn door latches with removable keys

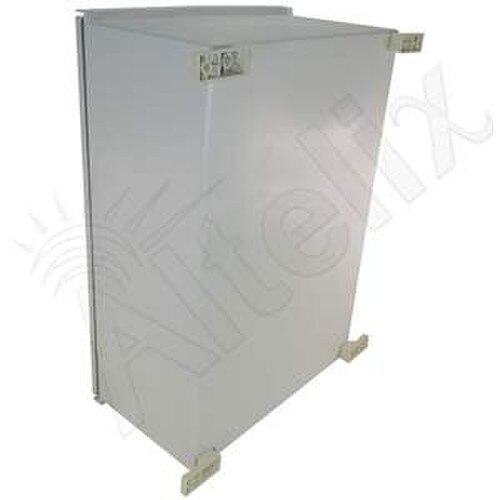

• Four mounting feet included for wall or structure mounting
• NEMA Type 3R, 3RX and IP24 rated

Who Should Buy the NFC241609VFA1C?

This enclosure is a strong fit for professionals who need a powered, ventilated equipment cabinet without separately adding outlets, a mounting plate, and cooling fans. It is especially useful where installed electronics generate heat and need protection from rain, outdoor exposure, or tampering while still allowing active airflow.

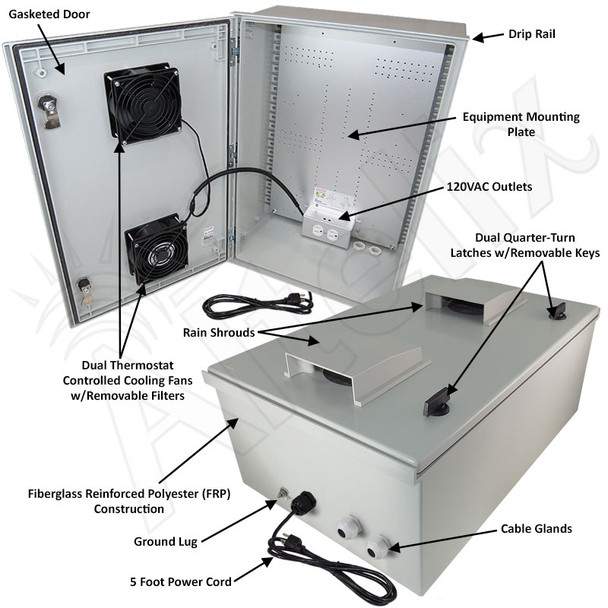

Product Details

The enclosure is molded from durable fiberglass reinforced polyester (FRP). The door is fully gasketed and features reinforced hinges and dual quarter-turn latches. A drip rail over the door provides added protection from water dripping into the cabinet while the enclosure is wet.

Two pre-wired 120VAC power outlets are installed inside the enclosure, and a 5-foot pre-wired power cord supplies power to the outlets. The internal equipment mounting plate provides a dedicated surface for mounting and securing components.

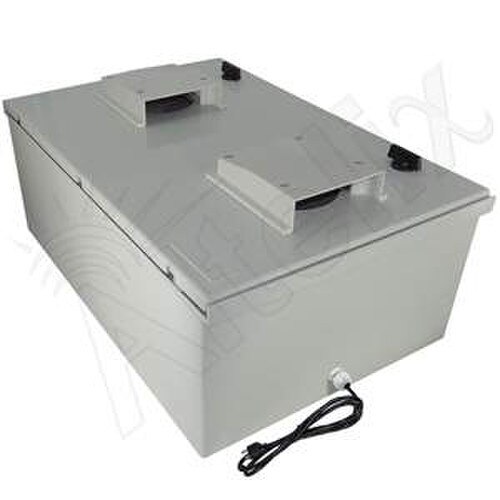

For ventilation, the enclosure uses two 4-inch air vents with rain shields and dual thermostat-controlled cooling fans. The fans are internally wired so the AC outlets remain available for installed equipment. Four mounting feet are included so the enclosure can be secured to a wall or other structure.

Important: Enclosure internal depth decreases when cooling fans, heaters, or mounting plates are used. If you have questions, contact Solid Signal customer service at 877-312-4547.

Specifications

• Material: Fiberglass reinforced polyester
• Color: Light gray
• Voltage / Maximum Load: 120VAC / 10A at 120VAC
• Outer Dimensions (H x W x D): 23.7 x 15.8 x 10.6 in. (602 x 399 x 269 mm)
• Inner Dimensions (H x W x D): 18.5 x 14.1 x 6.1 in. (470 x 359 x 156 mm)
• Cooling Fan Turn-On Temperature: 100°F (38°C)
• Cooling Fan Turn-Off Temperature: 79°F (26°C)
• Equipment Plate: 0.10 in. (2.5 mm) aluminum
• Equipment Plate Dimensions: 13.6 x 21.8 in. (345 x 554 mm)
• Power Cord Length: 5 ft. (1.5 m)
• Weight: 21.8 lb. (9.9 kg)
• Ratings: NEMA Type 3R, 3RX / IP24
