Blackmagic Design ATEM Mini Extreme (BMD-SWATEMMINICEXT)

  • Brand: Blackmagic Design
  • P\N: BMD-SWATEMMINICEXT
  • UPC: 9338716007299
(0)No Reviews yet

Availability: In Stock


Your Price: $1,095.00

Do you have questions?

Please contact our experts for assistance.

Description

Blackmagic Design ATEM Mini Extreme (BMD-SWATEMMINICEXT)

Discover the advanced capabilities of the Blackmagic Design ATEM Mini Extreme, the perfect low-cost solution for multi-camera, live production. It features 8 HDMI inputs, 16-way multiview, dual HDMI outputs, and two USB ports, enhancing your professional broadcasts. Equipped with 4 ATEM Advanced Chroma Keyers and SuperSource with additional DVEs, it’s ideal for professional multi-camera productions for live streaming or business presentations via platforms like YouTube, Skype, or Zoom.

Key Features:

  • Connect Multiple Devices: Easily switch between up to 8 high-quality video camera inputs, computers for presentations, or gaming consoles.
  • Advanced Broadcast Features: Includes live streaming, recording to USB disks, and built-in video effects like picture-in-picture and exciting transition effects.
  • Streamlined Operation: Simple to use with front panel buttons for source selection, video effects, and transitions, supporting both simple cuts and complex effects transitions.
  • Enhanced Audio and Video Control: Integrates a Fairlight audio mixer and supports advanced video standards conversion for each HDMI input.
  • Broadcast Quality Design: Lightweight, ergonomic design made from carbon fiber polycarbonate, featuring multifunction controls for easy operation.
  • Live Stream and Record: Capable of streaming directly via Ethernet and recording broadcasts to USB flash disks simultaneously.

Perfect for professional broadcasters, event producers, and content creators looking for a compact yet powerful live production switcher.


What's in the Box:

  • ATEM Mini Extreme
  • External 12V DC power supply with international socket adapters

Interested in learning more about this product?Check out our blog!

Features

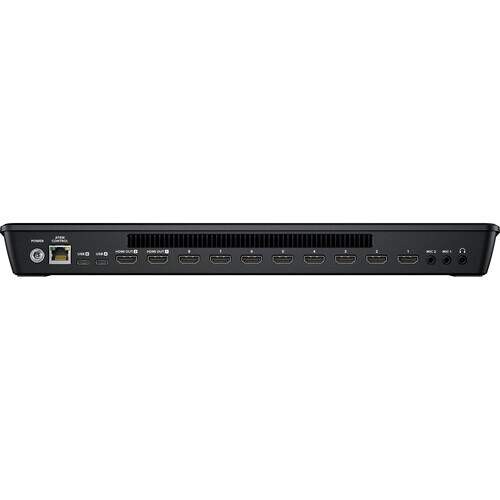

  • 8 HDMI inputs for maximum connectivity
  • 2 separate HDMI outputs for versatile display options
  • 2 USB ports for additional device integration
  • Headphone connection for private audio monitoring
  • 4 chroma keyers for high-quality green screen effects
  • 6 picture in picture DVEs for dynamic video editing
  • 2 media players for seamless content playback
  • Multiview with up to 16 views for comprehensive scene monitoring

Specifications

Connections

Total Video Inputs

8

Total Outputs

4

Total Aux Outputs

2

Total Audio Inputs

2 x 3.5mm stereo mini jack.

Total Audio Outputs

1 x 3.5mm stereo mini jack.

Timecode Connection

None

HDMI Video Inputs

8 x HDMI type A, 10-bit HD switchable.
2 channel embedded audio.

Video Input Re-Sync

On all 8 HDMI inputs.

Frame Rate and Format Converters

On all 8 HDMI inputs.

HDMI Program Outputs

2

Ethernet

Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.

Computer Interface

2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

Standards

HD Video Input Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HD Video Output Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Video Streaming Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards

None

Video Sampling

4:2:2 YUV

Color Precision

10-bit

Color Space

Rec 709

HDMI Input Resolutions from Computers

1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz
1920 x 1080i 50, 59.94Hz and 60Hz

Colorspace Conversion

Hardware based real time.

Product Specifics

Upstream Keyers

4

Downstream Keyers

2

Advanced Chroma Keyers

Up to 4

Linear/Luma Keyers

Up to 4

Transition Keyer

DVE only.

Total Number of Layers

9

Pattern Generators

5

Color Generators

2

DVE With Borders and Drop Shadow

2

Interface

Minimum monitor resolution of 1366 x 768.

Audio

Audio Mixer

11 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

Analog Input

Unbalanced stereo

Analog Input Delay

Up to 8 frames

Input Impedance

1.8k

Max Input Level

+6dBV

Mic Plug In Power

Available on both 3.5mm mini jack connections.

Streaming

Direct Streaming

ATEM Mini Extreme supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.

Recording

Direct Recording Video and Audio

USB-C 3.1 Gen 1 expansion port can record directly to external media.

Video Recording

1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.

Media Format

Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.

Multi View Monitoring

Multi View Monitoring

Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.

Multi View Video Standard

HD

Media Player

Media Players

2

Channels

Fill and key for each Media Player.

Media Pool Still Image Capacity

20 with fill and key.

Media Pool Still Image Format

PNG, TGA, BMP, GIF, JPEG and TIFF.

Control

Control Panel

Built in control panel. Software control panel with camera control included. Supports optional hardware panel.

Control Panel Connection

Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Extreme also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.

Control Panel Compatibility

Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Extreme can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.

Control Panel Included

ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina, Mac 11 Big Sur or later and Windows 10 64 bit only.

Software

Software Updates

Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.

Configuration

Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Operating Systems

Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.

Windows 10 and 11.

Power Requirements

Power Supply

1 x External 12V power supply.

Power Usage

36W

Physical Specifications

Environmental Specifications

Operating Temperature

5° C to 40° C (41° - 104° F)

Storage Temperature

-10° to 60° C (14° to 140° F)

Relative Humidity

0% to 90% non-condensing
