Blackmagic Design Smartview Duo Dual LCD Monitor (BMD-HDL-SMTVDUO2)

  • Brand: Blackmagic Design
  • P\N: BMD-HDL-SMTVDUO2
  • UPC: 9338716004465
(0)No Reviews yet

Availability: In Stock

Ships Within: Next Business Day

Your Price: $629.00

Do you have questions?

Please contact our experts for assistance.

Description

Blackmagic Design Smartview Duo Dual LCD Monitor (BMD-HDL-SMTVDUO2)

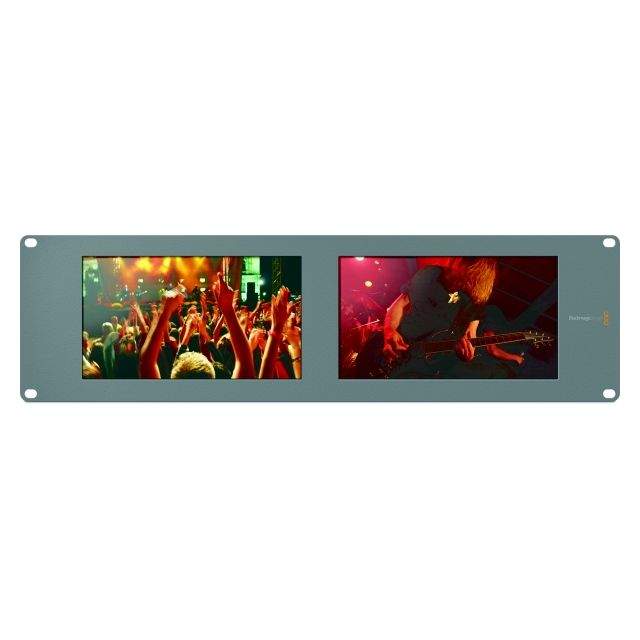

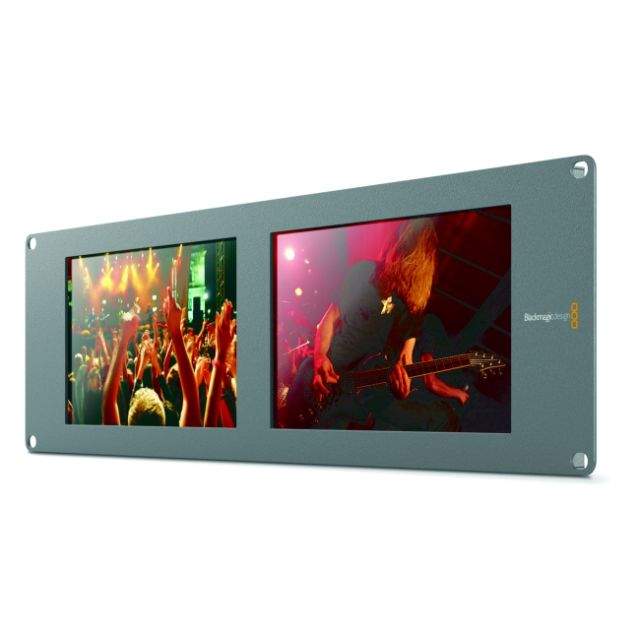

Experience the ultimate SDI monitoring with the Blackmagic Design Smartview Duo. This state-of-the-art device is equipped with two large 8 inch LCD screens in a compact rack mount design that is less than an inch thick. It handles all SD, HD, and 3Gb/s SDI video standards, making it ideal for local monitoring, post-production, and broadcast or live events.

Key Features

  • All screens can be remotely adjusted via your ethernet network
  • Designed for building a video wall for monitoring all sources into live production switchers
  • Includes a standard 12V power supply with socket adapters for each country
  • Save monitor settings from one monitor and copy to another
  • Allows firmware updating so it is easy to upgrade to new SDI video formats when they are invented, and updates are FREE from the Blackmagic Design website

Experience the Future of SDI Monitoring

With the Smartview Duo, you're not just buying a monitor; you're investing in the future. Its firmware updating feature ensures that you can easily upgrade to new SDI video formats as they are invented. Plus, these updates are available for FREE from the Blackmagic Design website, ensuring your device stays up-to-date and relevant.

Convenience at Your Fingertips

With the ability to remotely adjust all screens via your ethernet network, the Smartview Duo offers unparalleled convenience. Whether you're building a video wall for monitoring all sources into live production switchers or saving monitor settings from one monitor to copy to another, this device makes it easy.

Don't miss out on the opportunity to experience the future of SDI monitoring. Order your Blackmagic Design Smartview Duo today!

What's in the Box:

  • SmartScope Duo 4K
  • Power Supply
  • Welcome wallet with QR code for software download
Interested in learning more about this product?Check out our blog!

Specifications

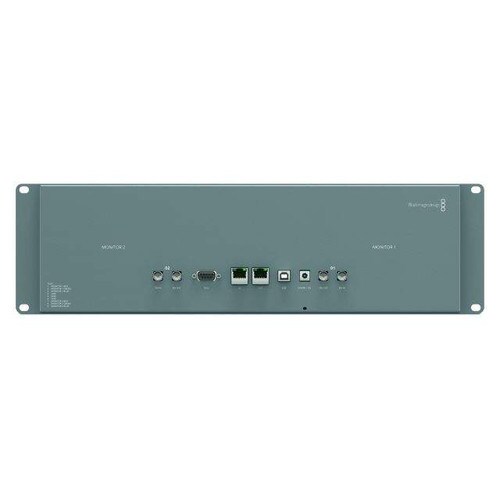

Connections

SDI Video Input

Automatically switches between SD, HD and 6G-SDI. Reclocked loop through output.

SDI Video Output

1 x 10 bit loop through SD, HD and
6G-SDI switchable.

SDI Audio Input

16 channels embedded in SD, HD and UHD.

SDI Audio Output

16 channels embedded in SD, HD and UHD.

Multi Rate Support

Standard definition SDI, high definition SDI and 6G-SDI.

Tally

9-pin D connector

SmartScope Duo 4K

Standards

SD Format Support

525i29.97 NTSC, 625i50 PAL

HD Format Support

720p50, 59.94, 60
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF23.98, 24, 25, 29.97, 30
1080i50, 59.94, 60

2K Format Support

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Format Support

2160p23.98, 24, 25, 29.97, 30

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M.

Audio Sampling

Television sample rate of 48KHz

Video Sampling

4:2:2 and 4:4:4

Color Precision

8-bit

Color Space

YUV and RGB

Computer Interface

USB 2.0 for software updates and Ethernet for configuration

Colorspace Conversion

Hardware based real time.

Scopes

Luminance Waveform, Vectorscope, RGB Parade, YUV Parade, Histogram, Audio phase and level.

Software

Software Included

Configuration utility for MAC and Windows.

Internal Software Upgrade

Via included firmware updater software.

Physical Installation

3RU

Operating Systems

Mac icon

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows Icon

Windows 10, 64-bit.

Power Requirements

Power Supply

12V universal power supply included with international socket adapters for all countries.

Power Consumption

< 20 Watts

Operational Voltage Range

12V - 15V

Physical Specifications

SmartScope Duo 4K

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing
