Blonder Tongue Broadband Indoor Distribution Amp Power Doubling 30dB (BIDA-100B-30P)
- Brand: Blonder Tongue
- P\N: BIDA-100B-30P
Do you have questions?
Please contact our experts for assistance.
Description

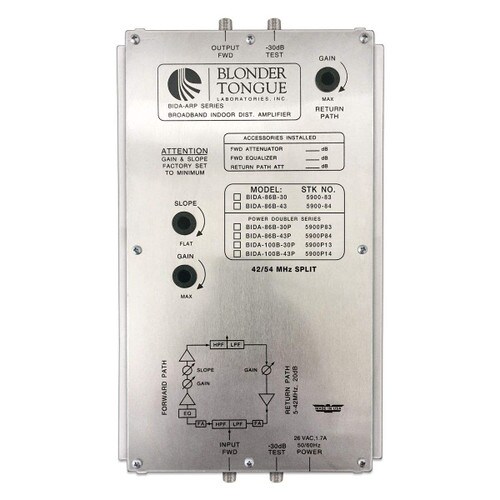

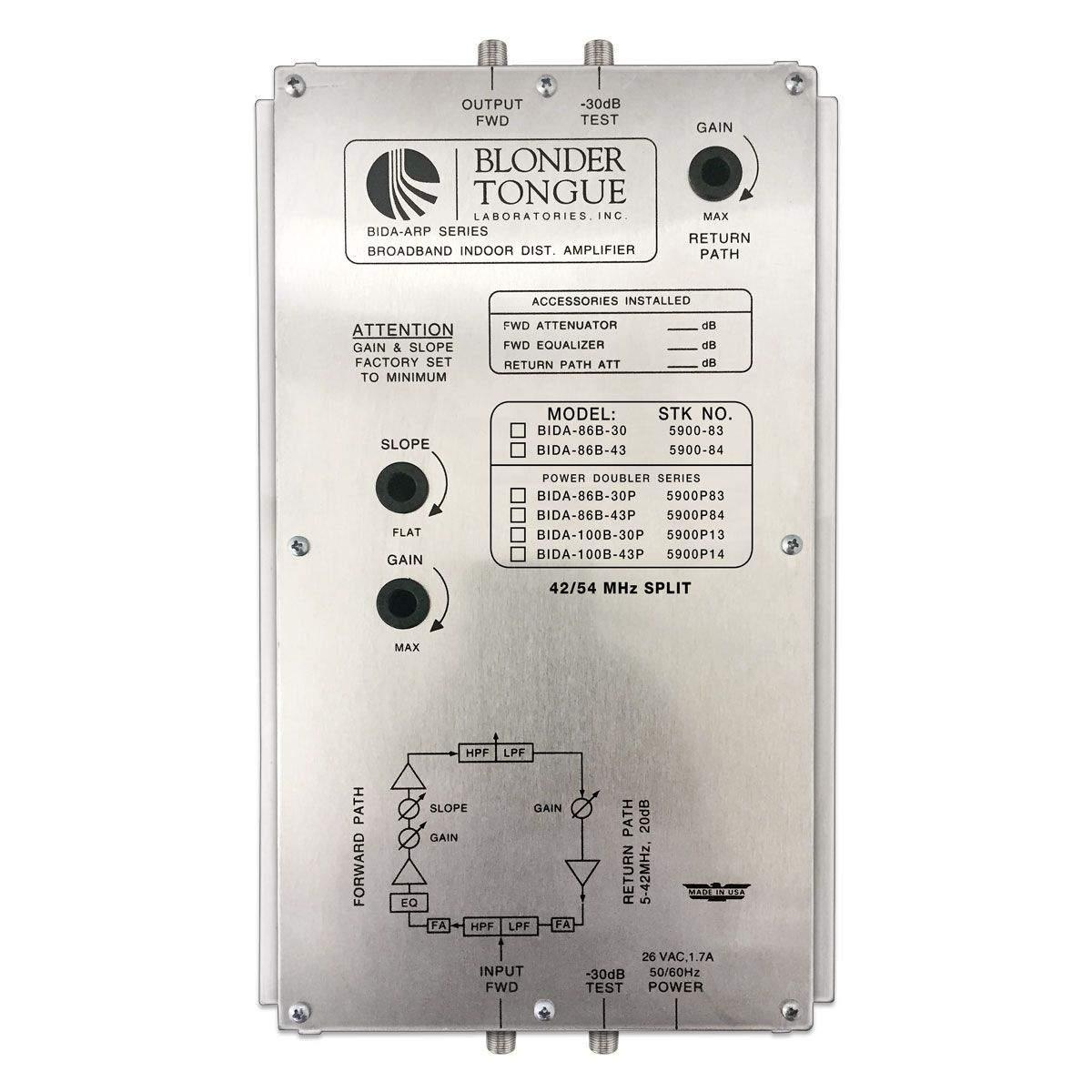

Blonder Tongue Broadband Indoor Distribution Amp Power Doubling 30dB (BIDA-100B-30P)
Experience superior signal distribution with the Blonder Tongue Broadband Indoor Distribution Amp. This self-contained amplifier is designed for CATV and SMATV signal distribution systems that use a cable drop as a signal source. It's equipped with power-doubling technology for enhanced performance.
Key Features
- Two-way capability with a passive or active return path set by field-changeable jumpers
- Front panel gain and slope controls for easy adjustments
- Hybrid IC circuitry for high output and low distortion
- Optional plug-in fixed equalizer and attenuator capability for input signal conditioning
- Integrated return path configurable for either passive or active operation
- Input and output test ports for easy monitoring
The Blonder Tongue Broadband Indoor Distribution Amp boasts an RF bandwidth range of 54-1000 MHz with 30dB gain. The return bandwidth is 5-42 MHz and can be configured for either a passive or integrated active return. When field configured to have an active return, it provides a full gain of 20dB.
Exceptional Heat Dissipation
Designed with a robust aluminum chassis, the Blonder Tongue Broadband Indoor Distribution Amp ensures excellent heat dissipation. This allows operation at high ambient temperatures without any degradation of performance or reliability.
Experience the Difference
With its power-doubling technology and high output, the Blonder Tongue Broadband Indoor Distribution Amp is a game-changer. It's designed to provide you with a seamless and high-quality signal distribution experience. Don't settle for less when you can have the best.
Experience the difference today. Order your Blonder Tongue Broadband Indoor Distribution Amp now!
Specifications
Weight | 6 lbs. |
---|---|
Dimensions | 10.5 × 7.25 × 3.25 inches |
