Blonder Tongue Broadband Indoor Distribution Amp Power Doubling 43dB (BIDA-100B-43P)

Blonder Tongue Broadband Indoor Distribution Amp Power Doubling 43dB (BIDA-100B-43P)

Experience the power of the Blonder Tongue Broadband Indoor Distribution Amp, a self-contained amplifier designed for CATV and SMATV signal distribution systems. This model, the BIDA-100B-43P, is equipped with power-doubling technology and offers an RF bandwidth range of 54-1000 MHz with 43dB gain.

Key Features

• Two-way capability with a passive or active return path set by field-changeable jumpers

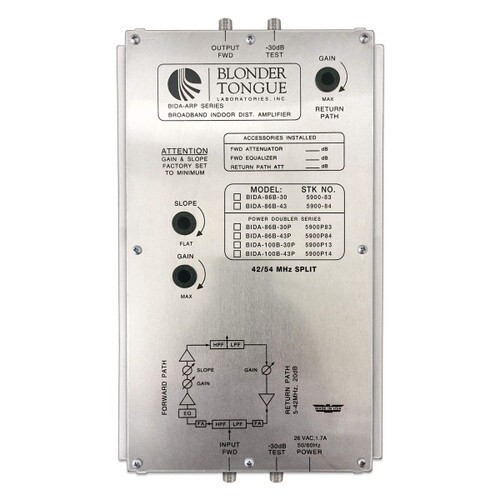

• Front panel gain and slope controls that are easily adjustable
• Hybrid IC circuitry for high output and low distortion
• Optional plug-in fixed equalizer and attenuator capability for input signal conditioning
• Integrated return path configurable for either passive or active operation
• Power-doubling model
• Input and output test ports
• Large heat sinks for exceptional heat dissipation

The BIDA-100B-43P is a robust and reliable amplifier, weighing in at 7 pounds. It has a return bandwidth of 5-42 MHz and can be configured for either a passive or integrated active return. When field configured to have an active return, there is a full gain of 20dB. The aluminum chassis is designed to provide excellent heat dissipation, allowing operation at high ambient temperatures with no degradation of performance or reliability.

Unleash the Power of the BIDA-100B-43P

With the Blonder Tongue Broadband Indoor Distribution Amp, you can enjoy high-quality signal distribution with minimal distortion. The power-doubling technology ensures that you get the most out of your CATV and SMATV systems. The easily adjustable front panel controls allow you to fine-tune your signal to your specific needs. The optional plug-in fixed equalizer and attenuator provide additional input signal conditioning.

Experience the difference that a high-quality, reliable amplifier can make in your signal distribution system. The BIDA-100B-43P is designed to provide exceptional performance, even in high ambient temperatures. The large heat sinks ensure that the amplifier stays cool, providing reliable performance and longevity.

Don't settle for less. Upgrade your signal distribution system with the Blonder Tongue Broadband Indoor Distribution Amp today.
