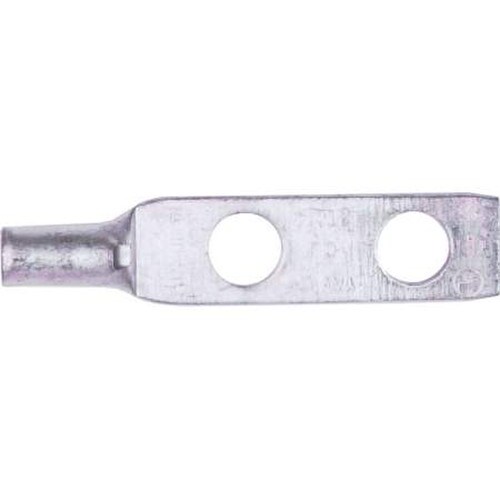

BURNDY 2 Hole Stand Lug 10-14 AWG Stranded (YAV10-2TC14)
- Brand: BURNDY
- P\N: YAV10-2TC14
- UPC: 729198180690
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
BURNDY 2 Hole Stand Lug 10-14 AWG Stranded (YAV10-2TC14)
Burndy's YAV102TC14 two-hole standard barrel compression lug with inspection window features a 1/4 in stud size and 5/8 in stud hole spacing. Designed to be used with either #14 – #10 AWG stranded wire or #12 - #10 AWG solid wire. Electro-Tin plated copper, UL Listed, 90 Deg. C, Up to 35kV. Install with Y8MRB-1 tool.
Specifications
| Wire Conductor Type | Stranded |
| Wire Size | #14 |
| Barrel Length | 0.38 in |
| Barrel Description | Short (Standard) |
| Inspection Hole | Yes |
| Bolt Hole Spacing | 5/8 inch |
| Insulated | No |
| Stud Size | 1/4 inch |
| Number of Studs | 2 |
