C. Crane CC Vector Home Long Range WiFi Extender / Receiver System 2.4 GHz (VEC1)

  • Brand: C.Crane
  • P\N: VEC1
  • UPC: 696714103160
1 Review

Availability: In Stock


Your Price: $239.99

Do you have questions?

Please contact our experts for assistance.

Description

C. Crane CC Vector Home Long Range WiFi Extender / Receiver System 2.4 GHz (VEC1)

The CC Vector Home is a more powerful WiFi solution than a standard wireless Wifi Extender.


- Works With All Devices.

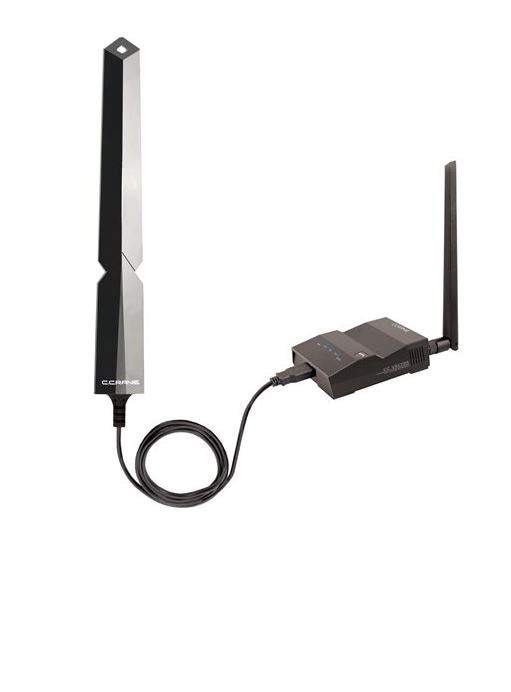

How it Works: Our antenna can be located so it more favorably connects to a distant WiFi signal from your router. The antenna is wired to the CC Vector which transmits and receives a new reliable WiFi signal to all types of devices. It uses the most popular 2.4 GHz band which also is the longest-range band. The newly created signal by the CC Vector has the same strength and coverage as a router.

Great for extending the range to upstairs, back rooms, garage and garden. The CC Vector is a good choice to deliver a new signal across a street. Bob's shop is about 50 ft. away from the router in the house and there are several walls that make the WiFi signal from a standard range extender unreliable. The CC Vector Home easily picked up the signal when the antenna was put in a shop window toward the house and delivered a robust signal to his Internet radio and phone in the shop.

The CC Vector advantage is a high power omni-directional Antenna which allows for better placement and pickup of the host router signal. The antenna's sensitivity exceeds average WiFi range extenders designed for in-home use and the system works on all Windows®, Android®, Apple®, iPhone® and Smart TVs.

It is small and can be mounted on a wall, to a window with suction cups or outside for improved coverage and stability. The host signal can be rather weak and the CC Vector Home will do a good job.

There are two available Ethernet ports on the CC Vector for hardwiring additional computers or routers. The setup is straightforward for basic computer users.

The CC Vector Home is capable of supporting two users watching standard quality video like Netflix™ or several users browsing the Internet simultaneously. As distance is increased, speed is reduced.

Comes with C. Crane US based tech support.

In the Box
  • Super USB WiFi Antenna DX
  • 15 foot USB Cable
  • Hanging Lanyard
  • Cable Tie
  • Hook and Loop Material
  • (2) Suction Cups

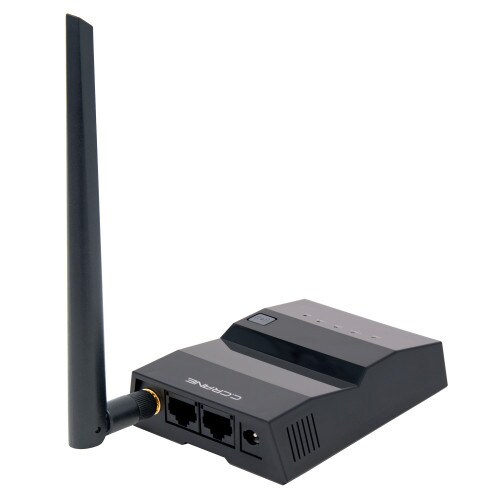

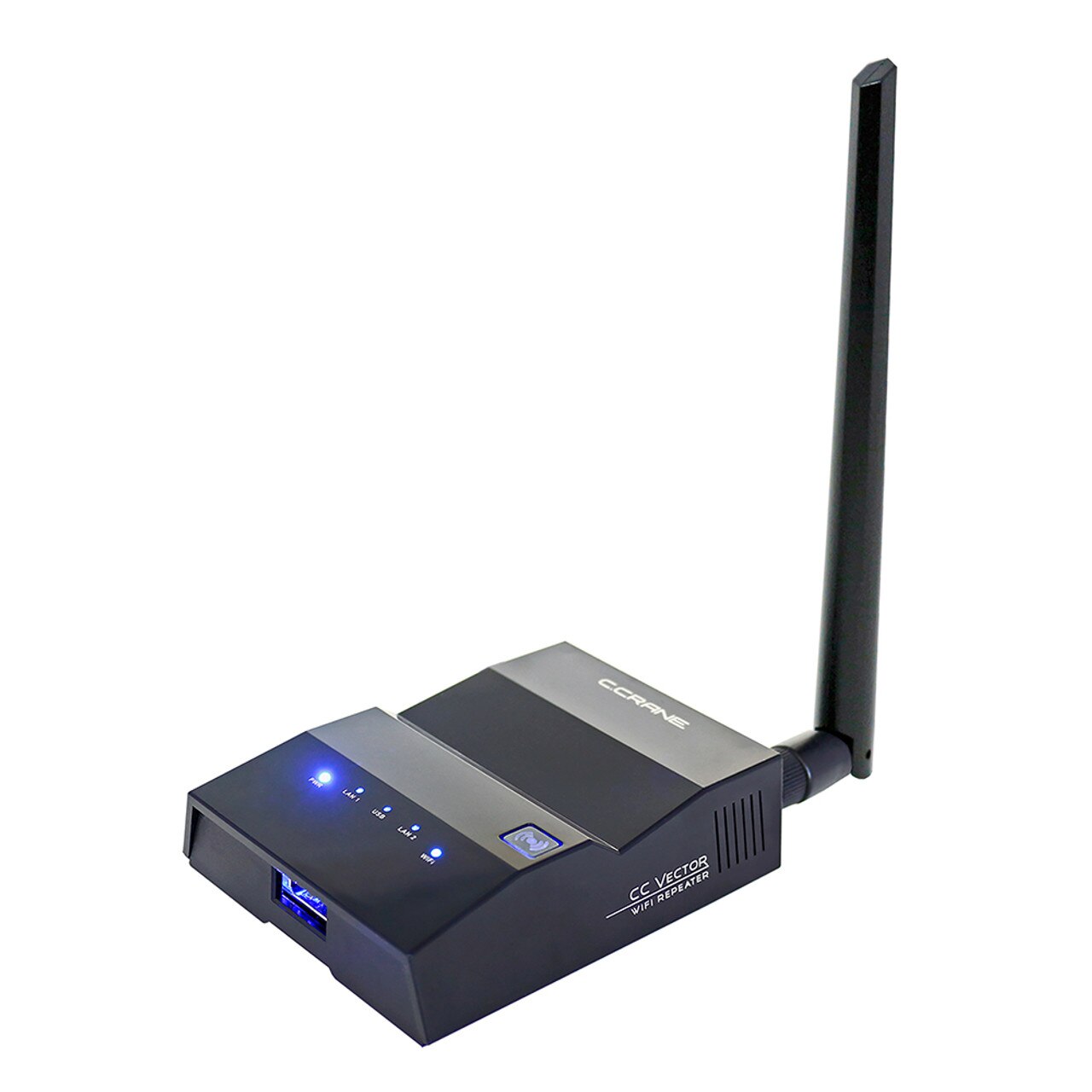

  • CC Vector WiFi Repeater
  • CC Vector WiFi Repeater AC Adapter
  • CC Vector WiFi Repeater Quick Setup Guide
  • CC Vector WiFi Repeater Assembly Guide

Features

General Features:
  • Repeats WiFi Signal to Multiple Devices such as: gaming consoles, Windows®, Android®, Apple®, iPhone® and Smart TVs, internet radios and more.
  • Omni-Directional indoor antenna.
  • Includes the Super USB WiFi Antenna DX, CC Vector WiFi Repeater, AC Power Adapter, 15' USB Split Cable, 18" Ethernet Cable, Suction Cups and Hanging Lanyard
  • Up to 150Mbs connection rate using 802.11n
  • WPS button for quickly connecting a new WiFi device.
  • Includes 2 Ethernet port for connecting a second router, computer or wired device.
  • AC/DC Adapter Specifications:
    Input: AC 100-240 Volts, 50-60 Hz 0.28 Amp.
    Output: DC 12 Volts, 1 Amp.
    Polarity: Center Tip Positive

Specifications

Super USB WiFi Antenna DX General Specifications
Wireless Standard:802.11b
802.11g
802.11n
802.11ac
*Sold after 5/5/22
Frequency Band:2.4GHz / 5GHz
Antenna Gain:4.5 dBi
Chipset Gain:25 dBm
Power Consumption Voltage:5V ±5%
LED light:Link / Active
Operation mode:Infrastructure or Ad hoc
Security:WEP 64/128, WPA, WPA2, WPA-PSK, 802.1x support
Wireless Broadcast Range:Up to 1 mile line of sight with no obstructions
Certifications:FCC, IP65, RoHS
Antenna Dimensions:10" L x 1.4" W x 0.6" D
Operating Temperature:32° F - 122° F
Storage Temperature:14° F - 149° F
Antenna Weight:1.8 oz
Warranty:1-Year Limited
Note: Specifications are subject to change without notice.
CC Vector WiFi Repeater General Specifications
StandardsWired: IEEE 802.3/802.3u
Wireless: 802.11b, 802.11g, 802.11n
InterfaceWAN: 10/100BASE-TX Port * 1
LAN: 10/100BASE-TX Port * 1
USB 2.0 Port * 1
SecurityWEP Encryption
WPA/WPA2-PSK (Pre-Shared Key)
WPA/WPA2 AES
WiFi Protected Setup (WPS)
PowerInput: 100-240V ~50/60Hz @ 0.35A
Output: 12V, 1A
Compatible USB Wireless AdapterSuper USB WiFi Antenna 3
Super USB WiFi Antenna DX
CC X Mile Omni
CC X Mile Long Range
Versa WiFi USB Adapter 3
RT3070 USB Adapter (Any)
Frequency2412~2462MHz (FCC)
2412~2472MHz (ETSI)
2412~2484MHz (Japan)
ModeReceiver Sensitivity (dBm)
802.11n20MHz: MCS0 : -90, MCS7 : -71
40MHz: MCS0 : -88, MCS7 : -69
802.11g6Mbps : -92
54Mbps : -75
802.11b1Mbps : -95
11 Mbps : -90
Warranty:1-Year Limited
Note: Specifications are subject to change without notice.

Downloads

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Reviews

1 review

  • 4
  • 0 reviews
  • 3
  • 0 reviews
  • 2
  • 0 reviews
  • 1
  • 0 reviews
Write a Review

When it said up to a mile away i was really going to test it to see if it went that far.... But my cabin is 700' from my old farmhouse and shed....I just stuck the antenna on the window, powered it up and followed setup...

by

What i find amazing is that it came on line right away and i got wifi immediately, even in the steel shed.... Now i want to get an extender that goes a mile using directional hi gain antennas
