C. Crane PTP Point To Point WiFi Antenna (PTP)
- Brand: C.Crane
- P\N: PTP
- UPC: 696714103054
Do you have questions?
Please contact our experts for assistance.
Description

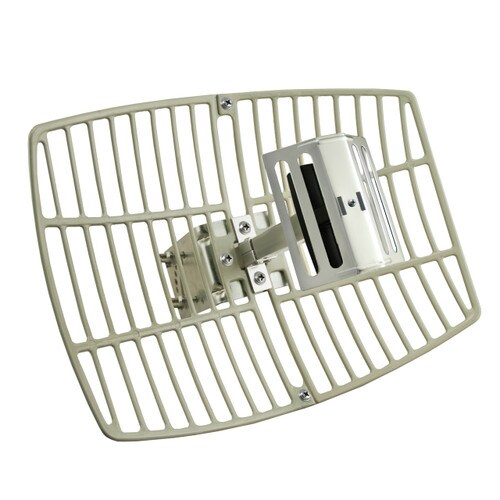

C. Crane PTP Point To Point WiFi Antenna
Boost WiFi up to 3 miles!
This 15dBi WiFi antenna is a powerful booster parabolic antenna that works best for point to point applications over a long distance. We found it provided a longer range signal than similar gain Yagi type antennas because has a narrower beam width (16° horizontal/21° vertical). This helps reduce or prevent interference from other neighborhood WiFi equipment. With permission it can be used as an directional extender to share an existing wireless service with a neighbor.
The antenna is made of precision cast aluminum alloy and is protected with a durable powder coat finish. The design presents has low wind resistance. The antenna works best with a clear line of sight, especially at long distances. Included: Stainless steel "U" bolts for pole mount with. Size: 11.8" x 15.75", assembly required. N Female connector. This antenna is part of our CC Vector Extended Long Range WiFi Repeater System, and recommended for our WiFi Bridge system and our other Custom WiFi systems.
Note: This antenna is an accessory and will not work without other gear.
Key Features:
- Compact design for easy installation and use
- 15dBi antenna for superior signal strength
- Narrow beam width (16 degrees horizontal/21 degrees vertical) for directed WiFi signal
- Helps prevent interference from neighboring equipment
- Enables sharing of WiFi signal with permission
What's in the box:
- 15dBi Directional Antenna
- Pole Mount w/ "U" Bolts
- Assembly Guide & Safety Instructions
- One Year Limited Warranty
Don't let poor WiFi signal affect your productivity. Upgrade to the C. Crane PTP Point To Point WiFi Antenna and experience the difference. Order now and enjoy a seamless, uninterrupted internet connection.
Specifications
General Specifications | |
---|---|
Frequency Range: | 2400-2483 MHz |
Antenna Gain: | 15dBi |
Polarization Type: | Horizontal or Vertical |
VSWR: | <1.5 |
Horizontal Beamwidth: | 16° |
Vertical Beamwidth: | 21° |
Front to Back Ratio: | >20dB |
Connector Type: | N-Female |
Input Impedance: | 50Ω |
Directional: | Yes |
Construction Materials: | Aluminum and Steel |
Operating Temperature: | -40°F to 149°F |
Mount Type: | Mounts to a Pole (not included) |
Diameter of Pole Needed: | 1.25" ~ 2" |
Rated Wind Velocity: | 85 MPH |
Antenna Dimensions: | 15.75" W x 11.8" H |
Antenna Weight: | 3.3 lbs |
Warranty: | 1-Year Limited |
