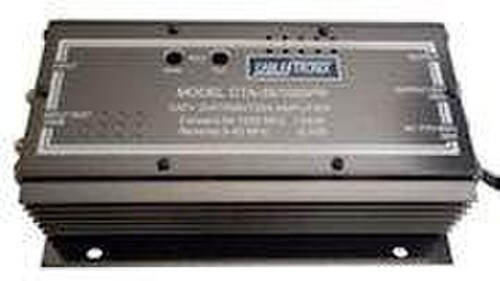

CableTronix 35dB Gain Amplifier With Passive Return (CTA-35-1000PR)

CableTronix CTA-35-1000PR 35 dB Distribution Amplifier with Passive Return

Best For

Indoor CATV and VHF/UHF distribution systems that need strong forward-path amplification with a passive return path.

Why Choose the CTA-35-1000PR?

This commercial-quality amplifier provides 35 dB of forward gain across 54-1000 MHz. A front-panel gain control provides up to 16 dB of adjustment, while input and output test ports make system setup and troubleshooting easier without interrupting service.

Key Benefits

• 35 dB forward gain
• 54-1000 MHz forward bandwidth
• Passive return path
• Up to 16 dB front-panel gain adjustment
• Input and output test ports
• Designed for indoor CATV and VHF/UHF distribution

Who Should Buy the CTA-35-1000PR?

Professional installers who need a high-gain indoor distribution amplifier and a passive return path for a compatible RF system.

Product Selection Note

The existing Contact Us notice identifies the Pico Digital CA-30-1000 as an alternative part. That notice remains preserved separately from this Detailed Description.

• 35 dB Forward gain
• 54-1,000 MHz Forward bandwidth
• 5-42 MHz Reverse bandwidth
• Passive return path
• Forward gain & slope control
• 16 dB Forward gain control range
