CommScope 1-1/4 Inch Ground Kit with 5-Foot Cable (241088-60)

CommScope 1-1/4 Inch Ground Kit with 5-Foot Cable (241088-60)

Key Features and Benefits

• Standard Grounding Kit for 1-1/4 in corrugated coaxial cable and elliptical waveguide 64 and 77
• High-quality copper materials for optimal conductivity and durability
• Tested to withstand 100,000 amps peak current surge
• Compliant with various industry standards and certifications
• Easy installation with included hardware and tapes

Ensure the safety and reliability of your communication systems with the CommScope 1-1/4 Inch Ground Kit with 5-Foot Cable (241088-60). This high-quality grounding kit is designed for use with 1-1/4 inch corrugated coaxial cable and elliptical waveguide 64 and 77, providing structural support and protection against electrical surges.

Technical Specifications

Constructed with copper materials for optimal conductivity and durability, this grounding kit features a PVC-jacketed bonding conductor and a copper grounding strap. The kit is designed to be compatible with a range of cable diameters and waveguide sizes, ensuring a secure fit for your specific application.

Electrical performance is a top priority, and this grounding kit has been tested to withstand 100,000 amps peak current surge, ensuring your equipment is protected from potential damage. Additionally, the kit meets various industry standards and certifications, including MIL-STD and IEC, for added peace of mind.

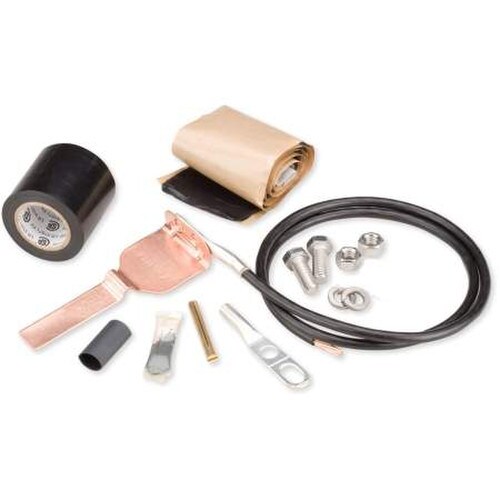

Installation is made easy with the included hardware, lug, and rolls of PVC and butyl rubber tape. The kit is also compliant with environmental specifications, such as operating and storage temperature ranges, as well as resistance to UV, corrosion, and weatherproofing.

User Instructions

• Ensure the cable or waveguide is clean and free of debris before installation
• Attach the grounding strap to the cable or waveguide using the included hardware
• Secure the lug to the grounding strap and connect it to the grounding conductor
• Apply the included PVC and butyl rubber tapes to seal and protect the connection

With the CommScope 1-1/4 Inch Ground Kit with 5-Foot Cable (241088-60), you can trust that your communication systems are protected and operating at their best. Don't leave your equipment vulnerable to electrical surges and potential damage – invest in this high-quality grounding kit today.

Order now and experience the peace of mind that comes with a reliable and secure grounding solution for your communication systems.
