CommScope 1/2" DIN Male Positive Stop LDF4 HL4RP AL4RPV (L4TDM-PSA)
- Brand: CommScope
- P\N: L4TDM-PSA
- UPC: 888063074233
Live Chat
Contact Us
Description
CommScope 1/2 inch DIN Male Positive Stop LDF4 HL4RP AL4RPV (L4TDM-PSA)

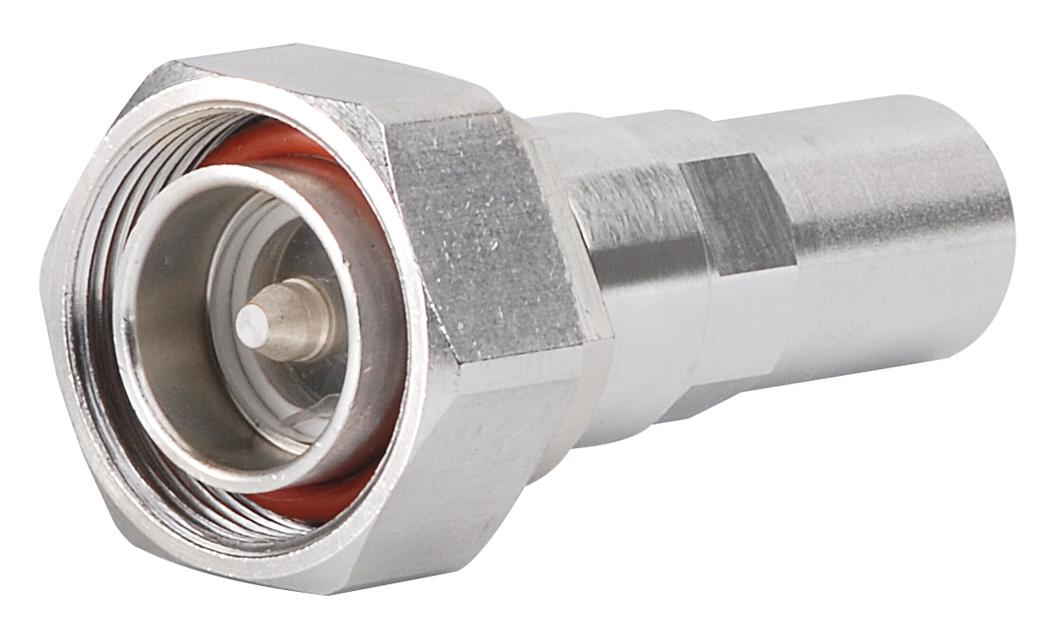

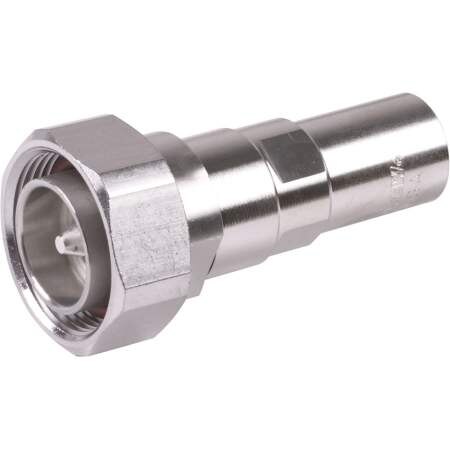

CommScope's L4TDM-PSA 7/16 DIN Male Positive Stop straight connector for 1/2 inch AL4RPV-50, LDF4-50A, HL4RPV cable. 0 - 8800 MHz, 50 Ohm, 0.05 dB insertion loss. Trimetal plated outer contact, Silver plated inner contact. Ring-flare outer attachment, Captivated inner attachment. Meets RoHS standards and is designed, manufactured and/or distributed under ISO 9001:2015
Specifications
| Maximum VSWR | 1.1:1 |
| RF Connector | 7/16 DIN Male |
| RF Impedance | 50 Ohms |
| RF Connector Body Style | Straight |
| Body | Trimetal |
| Low PIM | No |
| Body Material | Tri-Metal Plated Brass |
| Fits | AL4RPV-50, HL4RP-50, LDF4-50A |
| Frequency Range | 0-8.8 GHz |
| Outer Contact Attachment Type | Self-flare |
