CommScope 1/2in 50 Ohm Fire Retardant Superflex Cable Black (FSJ4RK-50B)

  • Brand: CommScope
  • P\N: FSJ4RK-50B
  • UPC: 888063344558
(0)No Reviews yet

Availability: In Stock


Your Price: $4.99

Do you have questions?

Please contact our experts for assistance.

Description

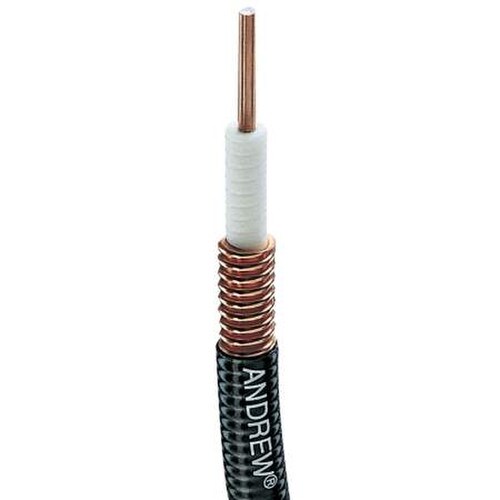

CommScope 1/2in 50 Ohm Fire Retardant Superflex Cable Black (FSJ4RK-50B)

Experience the superior performance of the CommScope 1/2in 50 Ohm Fire Retardant Superflex Cable Black. This high-quality cable is designed to provide reliable and efficient data transmission, making it an ideal choice for professionals who demand the best.

Key Features:

  • 1/2" super-flexible cable with a black fire-retardant jacket
  • Less prone to kinks due to the spiral copper corrugated outer conductor
  • Copper-clad aluminum center conductor
  • 10.2 GHz maximum frequency capacity

Don't compromise on your data transmission needs. Choose the CommScope Superflex Cable Black for reliable, high-speed data transmission. Order now to experience the difference!

Specifications

Product Classification

Product TypeCoaxial wireless cable
Product BrandHELIAX® | SureFlex®
Product SeriesFSJ4-50B
Ordering NoteCommScope® standard product in Asia Pacific

General Specifications

Product Number520094502/00 | SZ520094502/00
FlexibilitySuperflexible
Jacket ColorBlack
Performance NoteAttenuation values typical, guaranteed within 5%

Dimensions

Diameter Over Dielectric8.89 mm | 0.35 in
Diameter Over Jacket13.462 mm | 0.53 in
Inner Conductor OD3.556 mm | 0.14 in
Outer Conductor OD12.192 mm | 0.48 in
Nominal Size1/2 in

Electrical Specifications

Cable Impedance50 ohm ±1 ohm
Capacitance82.7 pF/m | 25.207 pF/ft
dc Resistance, Inner Conductor2.69 ohms/km | 0.82 ohms/kft
dc Resistance, Outer Conductor5.12 ohms/km | 1.561 ohms/kft
dc Test Voltage2500 V
Inductance0.207 µH/m | 0.063 µH/ft
Insulation Resistance100000 MOhms-km
Jacket Spark Test Voltage (rms)4000 V
Operating Frequency Band1 – 10200 MHz
Peak Power22.5 kW
Velocity81 %

Attenuation

FrequencyAttenuation (dB/100 m)Attenuation (dB/100 ft)Average Power (kW)
1.0 MHz0.3270.10022.50
1.5 MHz0.4010.12222.50
2.0 MHz0.4630.14122.50
10.0 MHz1.0440.31810.12
20.0 MHz1.4850.4537.11
30.0 MHz1.8280.5575.78
50.0 MHz2.3770.7244.44
85.0 MHz3.1300.9543.38
88.0 MHz3.1870.9713.32
100.0 MHz3.4061.0383.10
108.0 MHz3.5461.0812.98
150.0 MHz4.2141.2852.51
174.0 MHz4.5581.3892.32
200.0 MHz4.9081.4962.15
204.0 MHz4.9601.5122.13
300.0 MHz6.0951.8581.73
400.0 MHz7.1212.1701.48
450.0 MHz7.5922.3141.39
460.0 MHz7.6842.3421.37
500.0 MHz8.0422.4511.31
512.0 MHz8.1482.4831.30
600.0 MHz8.8912.7101.19
700.0 MHz9.6832.9511.09
800.0 MHz10.4313.1791.01
824.0 MHz10.6053.2321.00
894.0 MHz11.1013.3830.95
960.0 MHz11.5553.5220.91
1000.0 MHz11.8243.6040.89
1218.0 MHz13.2264.0310.80
1250.0 MHz13.4234.0910.79
1500.0 MHz14.9064.5430.71
1700.0 MHz16.0274.8850.66
1794.0 MHz16.5375.0400.64
1800.0 MHz16.5705.0500.64
2000.0 MHz17.6245.3710.60
2100.0 MHz18.1375.5280.58
2200.0 MHz18.6415.6820.57
2300.0 MHz19.1385.8330.55
2500.0 MHz20.1106.1290.53
2700.0 MHz21.0566.4180.50
3000.0 MHz22.4326.8370.47
3400.0 MHz24.1987.3750.44
3600.0 MHz25.0557.6360.42
3700.0 MHz25.4787.7650.41
3800.0 MHz25.8987.8930.41
3900.0 MHz26.3148.0200.40
4000.0 MHz26.7278.1460.40
4100.0 MHz27.1368.2710.39
4200.0 MHz27.5428.3940.38
4300.0 MHz27.9468.5170.38
4400.0 MHz28.3468.6390.37
4500.0 MHz28.7448.7610.37
4600.0 MHz29.1398.8810.36
4700.0 MHz29.5319.0010.36
4800.0 MHz29.9219.1190.35
4900.0 MHz30.3089.2380.35
5000.0 MHz30.6939.3550.34
6000.0 MHz34.42710.4930.31
8000.0 MHz41.40312.6190.26
8800.0 MHz44.05413.4270.24
10000.0 MHz47.91414.6030.22

Return Loss/VSWR

Frequency BandVSWRReturn Loss (dB)
680–800 MHz1.20120.80
800–960 MHz1.20120.80
1700–2200 MHz1.20120.80
2300–2700 MHz1.20120.80

Material Specifications

Dielectric MaterialFoam PE
Jacket MaterialNon-halogenated, fire retardant polyolefin
Inner Conductor MaterialCopper-clad aluminum wire
Outer Conductor MaterialCorrugated copper

Mechanical Specifications

Minimum Bend Radius, multiple Bends31.75 mm | 1.25 in
Minimum Bend Radius, Single Bend31.75 mm | 1.25 in
Number of Bends, minimum30
Number of Bends, typical50
Tensile Strength79 kg | 174.165 lb
Bending Moment2.7 N-m | 23.897 in lb
Flat Plate Crush Strength2 kg/mm | 111.995 lb/in

Environmental Specifications

Installation temperature-40 °C to +60 °C (-40 °F to +140 °F)
Operating Temperature-40 °C to +60 °C (-40 °F to +140 °F)
Storage Temperature-40 °C to +60 °C (-40 °F to +140 °F)
Attenuation, Ambient Temperature20 °C | 68 °F
Average Power, Ambient Temperature40 °C | 104 °F
Average Power, Inner Conductor Temperature100 °C | 212 °F
EN50575 CPR Cable EuroClass Fire PerformanceB2ca
EN50575 CPR Cable EuroClass Smoke Ratings1a
EN50575 CPR Cable EuroClass Droplets Ratingd1
EN50575 CPR Cable EuroClass Acidity Ratinga1
Fire Retardancy Test MethodIEC 60332-1-2 | NFPA 130-2010 | UL 1666/CATVR/CMR
Smoke Index Test MethodIEC 61034
Toxicity Index Test MethodIEC 60754-1 | IEC 60754-2

Packaging and Weights

Cable weight0.24 kg/m | 0.161 lb/ft

Regulatory Compliance/Certifications

AgencyClassification
CENELECEN 50575 compliant, Declaration of Performance (DoP) available
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHSCompliant
UL/ETL CertificationCATVR/CMR
CHINA-ROHSBelow maximum concentration value
REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHSCompliant
