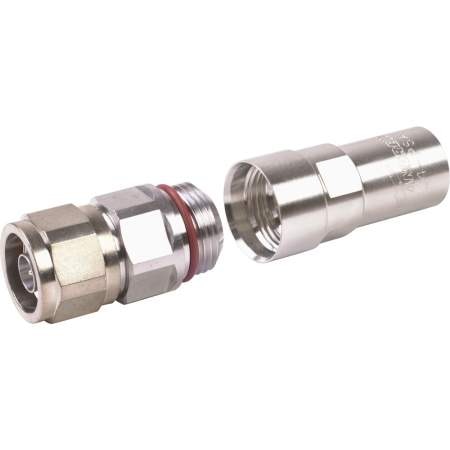

CommScope 1/2in N-Male Positive Stop 50 Ohm Connector (L4TNM-PSA)
- Brand: CommScope
- P\N: L4TNM-PSA
- UPC: 888063772733
Live Chat
Contact Us
Description
CommScope 1/2in N-Male Positive Stop 50 Ohm Connector (L4TNM-PSA)
Experience a high-quality, reliable connection with the CommScope 1/2in N-Male Positive Stop 50 Ohm Connector (L4TNM-PSA). This connector is part of the CommScope Wired for Wireless® Solution and the HELIAX® | Positive Stop product series, ensuring enhanced performance and compatibility with AL4RPV-50, LDF4-50A, and HL4RPV-50 cables.
Key Features:
- Easy installation with captivated inner contact and ring-flare outer contact
- Superior shielding effectiveness of -130 dB
- Wide operating frequency band of 0 – 8800 MHz
- Robust construction for durability and long-lasting performance
Upgrade your wireless and radiating connector system with the CommScope 1/2in N-Male Positive Stop 50 Ohm Connector for enhanced performance, reliability, and durability. Don't wait – order now and experience the difference!
Specifications
Product Classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® | Positive Stop™ |
| Product Series | LDF4-50A |
| Ordering Note | CommScope® standard product (Global) |
General Specifications
| Body Style | Straight |
| Cable Family | AL4-50 |
| Harmonized System (HS) Code | 85366910 (Coaxial cable and other coaxial electric conductors) |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | N Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Ring-flare |
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 76.71 mm | 3.020 in |
| Diameter | 22.35 mm | 0.880 in |
| Nominal Size | 1/2 in |
Electrical Specifications
| 3rd Order IMD at Frequency | -116 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 0.6 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2000 V |
| Inner Contact Resistance, maximum | 2 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 8800 MHz |
| Outer Contact Resistance, maximum | 0.3 mOhm |
| Peak Power, maximum | 10 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
| Shielding Effectiveness | -130 dB |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
|---|---|---|
| 45–1000 MHz | 1.023 | 38.89 |
| 1010–2200 MHz | 1.036 | 35.00 |
| 2210–3000 MHz | 1.046 | 32.96 |
| 3010–4000 MHz | 1.094 | 26.96 |
| 4010–6000 MHz | 1.260 | 19.00 |
| 6010–8000 MHz | 1.330 | 17.00 |
Mechanical Specifications
| Attachment Durability | 25 cycles |
| Connector Retention Tensile Force | 889.64 N | 200.000 lbf |
| Connector Retention Torque | 5.42 N-m | 47.998 in lb |
| Coupling Nut Proof Torque | 4.52 N-m | 39.997 in lb |
| Coupling Nut Retention Force | 444.82 N | 100.000 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Insertion Force | 66.72 N | 15.000 lbf |
| Insertion Force Method | MIL-C-39012C-3.12, 4.6.9 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202, Method 213, Test Condition I |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Immersion Depth | 1 m |
| Immersion Test Mating | Unmated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | IEC 60068-2-6 |
| Water Jetting Test Mating | Unmated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and Weights
| Weight, net | 94.71 g | 0.209 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
CHINA-ROHS | Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
