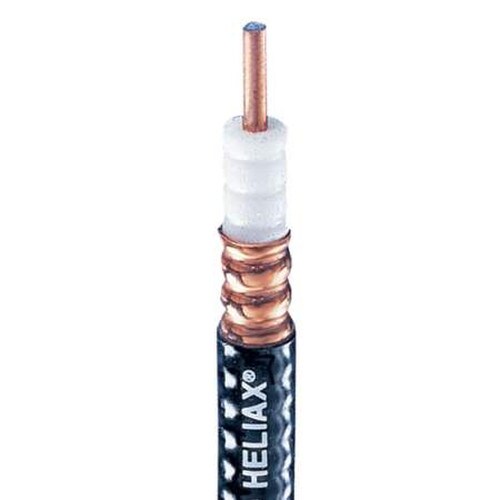

CommScope 1/4in Foam Heliax Cable (LDF1-50)

  • Brand: CommScope
  • P\N: LDF1-50
  • UPC: 646444691628
(0)No Reviews yet

Availability: In Stock


Your Price: $1.99

Do you have questions?

Please contact our experts for assistance.

Description

CommScope 1/4in Foam Heliax Cable: Unleash the Power of Connectivity

Experience the superior performance of the CommScope 1/4in Foam Heliax Cable. Designed for high-quality transmission and durability, this cable is a must-have for professionals seeking reliable connectivity.

Key Features:

  • High-quality material: The cable features a 50 ohms annular corrugated copper outer and copper clad aluminum, ensuring optimal signal transmission and longevity.
  • Lightweight: With a product weight of just 0.07, this cable is easy to handle and install.
  • Brand reliability: Manufactured by CommScope, a trusted name in the industry, you can be assured of the product's quality and performance.

Don't compromise on your connectivity. Trust in the quality and reliability of CommScope. Upgrade your network with the CommScope Foam Heliax Cable today!

Specifications

Product Classification

Product TypeCoaxial wireless cable
Product BrandHELIAX®
Product SeriesLDF1-50 | MLOC

General Specifications

Product Number520100002/00 | SZ520100002/00
FlexibilityStandard
Jacket ColorBlack
Performance NoteAttenuation values typical, guaranteed within 5%

Dimensions

Diameter Over Dielectric6.858 mm | 0.27 in
Diameter Over Jacket8.763 mm | 0.345 in
Inner Conductor OD2.54 mm | 0.1 in
Outer Conductor OD7.874 mm | 0.31 in
Nominal Size1/4 in

Electrical Specifications

Cable Impedance50 ohm ±1 ohm
Capacitance76.8 pF/m | 23.409 pF/ft
dc Resistance, Inner Conductor5.151 ohms/km | 1.57 ohms/kft
dc Resistance, Outer Conductor4.003 ohms/km | 1.22 ohms/kft
dc Test Voltage2200 V
Inductance0.194 µH/m | 0.059 µH/ft
Insulation Resistance100000 MOhms-km
Jacket Spark Test Voltage (rms)5000 V
Operating Frequency Band1 – 15800 MHz
Peak Power12.1 kW
Velocity86 %

Attenuation

FrequencyAttenuation (dB/100 m)Attenuation (dB/100 ft)Average Power (kW)
1.0 MHz0.3940.12012.10
1.5 MHz0.4830.14712.10
2.0 MHz0.5580.17012.10
10.0 MHz1.2540.3825.83
20.0 MHz1.7810.5434.11
30.0 MHz2.1880.6673.34
50.0 MHz2.8380.8652.58
85.0 MHz3.7241.1351.96
88.0 MHz3.7911.1561.93
100.0 MHz4.0491.2341.81
108.0 MHz4.2131.2841.74
150.0 MHz4.9931.5221.47
174.0 MHz5.3921.6441.36
200.0 MHz5.7981.7671.26
204.0 MHz5.8581.7851.25
300.0 MHz7.1682.1851.02
400.0 MHz8.3422.5430.88
450.0 MHz8.8802.7060.82
460.0 MHz8.9842.7380.81
500.0 MHz9.3912.8620.78
512.0 MHz9.5112.8990.77
600.0 MHz10.3513.1550.71
700.0 MHz11.2443.4270.65
800.0 MHz12.0843.6830.61
824.0 MHz12.2783.7420.60
894.0 MHz12.8333.9110.57
960.0 MHz13.3394.0660.55
1000.0 MHz13.6394.1570.54
1218.0 MHz15.1924.6300.48
1250.0 MHz15.4104.6970.47
1500.0 MHz17.0405.1940.43
1700.0 MHz18.2665.5670.40
1794.0 MHz18.8235.7370.39
1800.0 MHz18.8585.7480.39
2000.0 MHz20.0036.0970.37
2100.0 MHz20.5596.2660.36
2200.0 MHz21.1046.4320.35
2300.0 MHz21.6406.5960.34
2500.0 MHz22.6866.9140.32
2700.0 MHz23.7017.2240.31
3000.0 MHz25.1717.6720.29
3400.0 MHz27.0488.2440.27
3600.0 MHz27.9568.5210.26
3700.0 MHz28.4038.6570.26
3800.0 MHz28.8468.7920.25
3900.0 MHz29.2848.9250.25
4000.0 MHz29.7199.0580.25
4100.0 MHz30.1499.1890.24
4200.0 MHz30.5769.3190.24
4300.0 MHz30.9999.4480.24
4400.0 MHz31.4199.5760.23
4500.0 MHz31.8359.7030.23
4600.0 MHz32.2499.8290.23
4700.0 MHz32.6599.9540.22
4800.0 MHz33.06610.0780.22
4900.0 MHz33.47010.2010.22
5000.0 MHz33.87110.3230.22
6000.0 MHz37.74211.5030.19
8000.0 MHz44.88813.6810.16
8800.0 MHz47.57914.5010.15
10000.0 MHz51.47515.6890.14
12000.0 MHz57.66417.5750.13
14000.0 MHz63.55219.3700.12
15800.0 MHz68.64620.9220.11

Return Loss/VSWR

Frequency BandVSWRReturn Loss (dB)VSWR, typicalReturn Loss, typical (dB)
806–960 MHz1.15023.13
1700–2000 MHz1.15023.13
4000–6000 MHz1.43314.991.29018.00

Material Specifications

Dielectric MaterialFoam PE
Jacket MaterialPE
Inner Conductor MaterialCopper-clad aluminum wire
Outer Conductor MaterialCorrugated copper

Mechanical Specifications

Minimum Bend Radius, multiple Bends76.2 mm | 3 in
Minimum Bend Radius, Single Bend38.1 mm | 1.5 in
Number of Bends, minimum15
Number of Bends, typical30
Tensile Strength91 kg | 200.62 lb
Bending Moment1.4 N-m | 12.391 in lb
Flat Plate Crush Strength1.4 kg/mm | 78.396 lb/in

Environmental Specifications

Installation temperature-40 °C to +60 °C (-40 °F to +140 °F)
Operating Temperature-55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature-70 °C to +85 °C (-94 °F to +185 °F)
Attenuation, Ambient Temperature20 °C | 68 °F
Average Power, Ambient Temperature40 °C | 104 °F
Average Power, Inner Conductor Temperature100 °C | 212 °F

Packaging and Weights

Cable weight0.09 kg/m | 0.060 lb/ft

Regulatory Compliance/Certifications

AgencyClassification
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHSCompliant
CHINA-ROHSBelow maximum concentration value
REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHSCompliant
