CommScope 150-158 MHz 3/6bB Exposed Dipole Omni Antenna (DB222-A)

  • Brand: CommScope
  • P\N: DB222-A
  • UPC: 729198901233
(0)No Reviews yet

Availability: In Stock


Your Price: $1,052.00

Do you have questions?

Please contact our experts for assistance.

Description

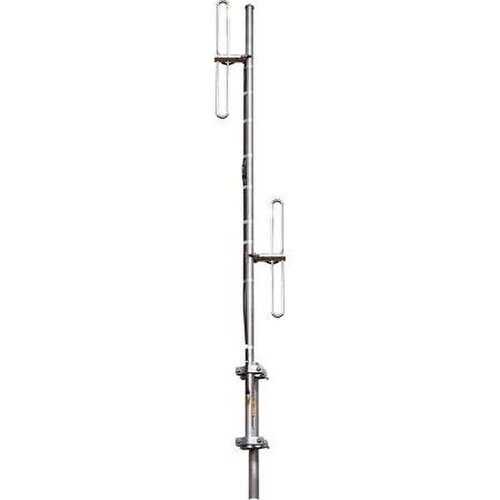

CommScope 150-158 MHz 3/6bB Exposed Dipole Omni Antenna (DB222-A)

Andrew's 150 - 158 MHz one (1) port omni exposed dipole antenna. This 50 Ohm outdoor antenna can handle up to 500-Watts maximum input power per port. It is terminated with an N Male connector located on the bottom. Designed, manufactured and/or distributed under ISO 9001:2

Features and Benefits:

  • 360° HPBW, fixed electrical tilt
  • Broad response
  • Moisture resistant
  • Color: Silver

Includes a pipe mounting kit that consists of two clamps for mounting antennas to round members 1.25 - 3.5 inch OD round members.

Specifications

Item Weight16 lbs.
Item Length127 inch
Gain dBd3 dBd
Gain dBi (dBi)5.1 dBi
Horizontal Beamwidth360 deg
Jumper IncludedYes
Maximum Power (W)500
RF ConnectorsN Male
PolarizationVertical
Specific Frequency150-158 MHz
Vertical Beamwidth (Deg)36
Maximum Rated Wind Velocity125 mile/h
Maximum VSWR1.5:1
Tuned Frequency (MHz)150-158
Connector PlacementBottom
Antenna PatternAdjustable
Lightning ProtectionDC Ground
Frequency BandVHF
