CommScope 2-1/4 Inch Grounding Kit with 3 Inch (223700-724)

CommScope 2-1/4 Inch Grounding Kit with 3 Inch (223700-724): A Reliable Solution for Your Grounding Needs

Key Features and Benefits

• Designed for 2-1/4 in and 3 in corrugated coaxial cable and elliptical waveguide 28 and 37
• Standard Grounding Kit for enhanced structural support and protection
• High-quality copper materials for optimal conductivity and durability
• Tested to withstand 100,000 amps peak current surge
• Compliant with various industry standards and certifications

Technical Specifications

The CommScope 2-1/4 Inch Grounding Kit with 3 Inch (223700-724) is designed to provide reliable grounding and bonding for your corrugated coaxial cable and elliptical waveguide installations. This standard grounding kit is made from high-quality copper materials, ensuring optimal conductivity and durability for long-lasting performance.

With a 6-gauge bonding conductor wire size and a field-attached two-hole lug, this grounding kit is designed to handle high current surges, having been tested to withstand 100,000 amps peak current surge. The kit is also compliant with various industry standards and certifications, including MIL-STD-1757, MIL-STD-188-124A, IEC 1024-1, and more.

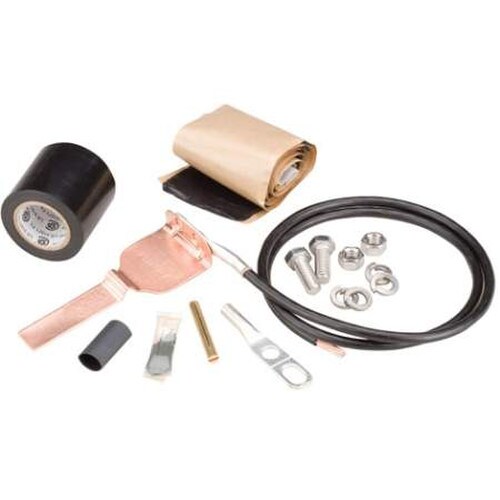

Operating temperature ranges from -40 °C to +85 °C (-40 °F to +185 °F), ensuring reliable performance in various environmental conditions. The kit also includes hardware, a lug, one roll of 2 in PVC tape, and one roll of 24 in butyl rubber tape for easy installation and weatherproofing.

Enhance Your Installation with CommScope Quality

When it comes to grounding and bonding your corrugated coaxial cable and elliptical waveguide installations, trust the CommScope 2-1/4 Inch Grounding Kit with 3 Inch (223700-724) to provide the reliable performance and protection you need. With its high-quality materials, tested current handling capabilities, and compliance with industry standards, this grounding kit is an essential addition to your installation toolkit.

Don't compromise on quality and safety – choose the CommScope 2-1/4 Inch Grounding Kit with 3 Inch (223700-724) for your grounding and bonding needs today.

Order now and experience the difference of CommScope quality and reliability in your installations!
