CommScope 3.5in Antenna Mast Mounting Clamp Kit Two Pack (DB365-OS)
- Brand: CommScope
- P\N: DB365-OS
- UPC: 729198556761
Live Chat
Contact Us
Description

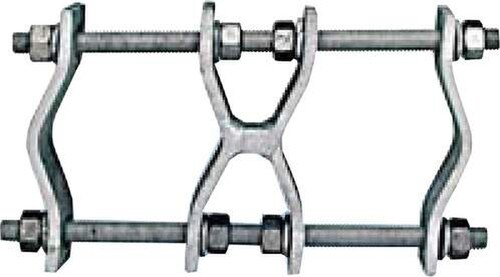

CommScope DB365-OS 3.5-Inch Antenna Mast Mounting Clamp Kit - Two Pack
Best For
Professional outdoor antenna installations that need to secure compatible base-station antennas to round or angled tower members.
Why Choose the CommScope DB365-OS?
The DB365-OS uses hot-dip galvanized steel for outdoor corrosion resistance and a welded center section for mechanical stability. The kit supports a useful range of round tower-leg and support-pipe sizes.
Key Benefits
- Supports round members from 1.25 to 3.5 inches O.D. (35-89 mm)
- Supports compatible angled tower legs up to 3 inches per side
- Hot-dip galvanized steel construction
- Welded center section for stability
- Two pipe-to-pipe crossover clamps with mounting hardware
Who Should Buy the DB365-OS?
Wireless and RF installers mounting compatible antennas to tower legs, support pipes, or other suitable structural members.
Installation Notes
Verify antenna load, member dimensions, structural capacity, grounding, hardware torque, and site requirements before installation. The existing product notice identifies this item as non-cancellable and non-returnable.
