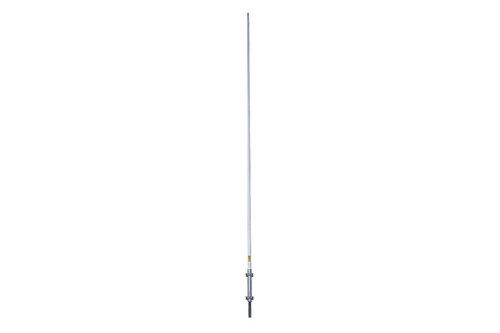

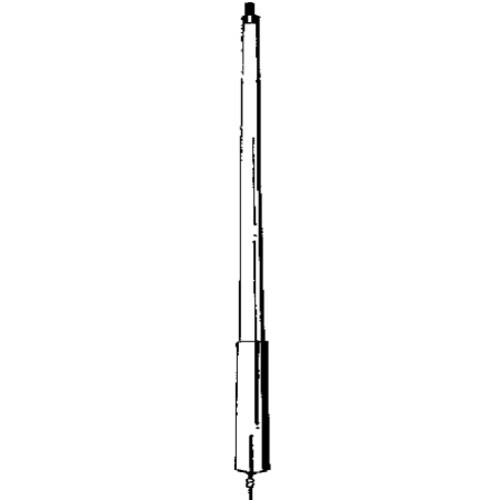

CommScope 450-470 MHz 10dB Fiberglass Omni Antenna (ASP705K)
- Brand: CommScope
- P\N: ASP705K
- UPC: 729198344504
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
CommScope 450-470 MHz 10dB Fiberglass Omni Antenna (ASP705K): Enhance Your Communication System
Upgrade your communication system with the CommScope 450-470 MHz 10dB Fiberglass Omni Antenna. Designed for outdoor usage, this high-quality antenna offers exceptional performance and reliability, ensuring clear and consistent signal transmission. With its 360° horizontal beamwidth and fixed electrical tilt, the ASP705K provides comprehensive coverage and optimal signal strength for your communication needs.
Key Features
- High-performance 1-port omni antenna for 450-470 MHz frequency range
- 360° horizontal beamwidth for comprehensive coverage
- Fixed electrical tilt for optimal signal strength
- Invert mountable for versatile installation options
- Durable fiberglass radome with UV resistance for outdoor use
- 50 ohm impedance and 12.1 dBi gain for efficient signal transmission
Experience the difference in communication quality and reliability with the CommScope 450-470 MHz 10dB Fiberglass Omni Antenna. Upgrade your system today and enjoy enhanced performance and durability for years to come.
Specifications
General Specifications
| Antenna Type | Omni |
| Band | Single band |
| Color | Off-white |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Brass |
| RF Connector Interface | N Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 1 |
Dimensions
| Length | 5588 millimeter | 220 inch |
| Net Weight, without mounting kit | 10 kg | 22.046 lbs. |
| Outer Diameter | 76.2 millimeter | 3 inch |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 450 – 470 MHz |
| Polarization | Vertical |
Electrical Specifications
| Frequency Band, MHz | 450–470 |
|---|---|
| Gain, dBi | 12.1 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 7 |
| Beam Tilt, degrees | 0 |
| VSWR | Return loss, dB | 1.5 | 14.0 |
| Input Power per Port, maximum, watts | 500 |
Mechanical Specifications
| Wind Loading @ Velocity, maximum | 364.8 N @ 100 mph (82.0 lbf @ 100 mph) |
| Wind Speed, maximum | 201 km/h (125 mph) |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
