CommScope 450-470 MHz 6.6-7.8dB Exposed Dipole Omni Antenna (DB408-B)
- Brand: CommScope
- P\N: DB408-B
- UPC: 729198651435
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

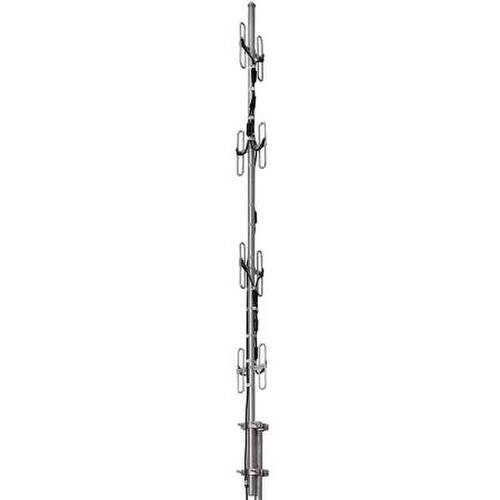

CommScope 450-470 MHz Exposed Dipole Omni Antenna (DB408-B)
ANDREW's omnidirectional exposed dipole antenna operates in the 450 – 470 MHz frequency range. The 8.7 dBi gain UHF dipole omni can handle 250 W maximum input power. The antenna comes with an N Male connector at the end of a flexible lead.
This antenna features broad response and is ideal for duplex operations. It is extremely rugged, has an extra heavy-duty construction, and is moisture and lightning resistant.
Features:
- Broad response
- Moisture resistant
- Rugged, reliable design
Note: A DB365-OS pipe mounting kit for 1.25 – 3.5 inch OD round members is included.
Meets RoHS 2002/95/EC.
Specifications
| Item Weight | 17 lbs. |
| Item Length | 113 inch |
| Gain dBi (dBi) | 8.7 dBi |
| Horizontal Beamwidth | 360 deg |
| Jumper Included | Yes |
| Maximum Power (W) | 250 |
| RF Connectors | N Male |
| Polarization | Vertical |
| Specific Frequency | 450-470 MHz |
| Vertical Beamwidth (Deg) | 14 |
| Maximum Rated Wind Velocity | 125 mile/h |
| Maximum VSWR | 1.5:1 |
| Connector Placement | Pigtail |
| Antenna Pattern | Omnidirectional |
| Lightning Protection | DC Ground |
| Frequency Band | UHF |
