CommScope 5-Inch Cable Entry Boot 4-Holes (48939A-17)
- Brand: CommScope
- P\N: 48939A-17
- UPC: 646444303118
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

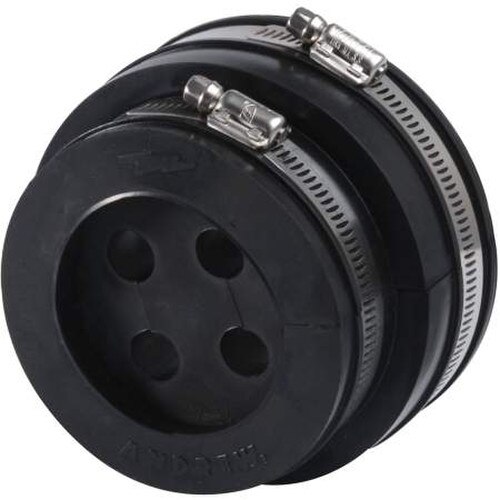

Introducing the CommScope 5-Inch Cable Entry Boot 4-Holes (48939A-17)
Upgrade your cable management system with the CommScope 5-Inch Cable Entry Boot 4-Holes (48939A-17), designed to provide a secure and weather-resistant seal for your corrugated coaxial cables. This high-quality boot assembly is made from durable EPDM rubber, ensuring long-lasting performance and protection for your cables.
Key Features
- Designed for 1/2 inch corrugated coaxial cables
- Accommodates up to 4 cables per cushion
- Constructed from durable EPDM rubber material
- UV and weather-resistant for outdoor use
- Compliant with ISO 9001:2015, ROHS, REACH-SVHC, and UK-ROHS standards
- Easy installation with included boot, cushion, and two clamps
Don't let your cables suffer from poor management and exposure to the elements. Invest in the CommScope 5-Inch Cable Entry Boot 4-Holes (48939A-17) today and experience the difference in quality and performance that only CommScope can provide. Order now and give your cables the protection they deserve!
Specifications
Product Classification
| Product Type | Boot assembly |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Cable Type | Corrugated |
| Cables per Cushion | 4 |
| Color | Black |
Dimensions
| Height | 127 mm | 5 in |
| Length | 76.2 mm | 3 in |
| Nominal Size | 1/2 in |
Material Specifications
| Material Type | EPDM rubber |
Environmental Specifications
| UV Resistance Test Method | MIL-STD-810E, Procedure 11, Method 505 |
| UV Resistance, minimum with no degradation | ≥1000 hours |
| Weather Resistance Test Method | 04AS00-03.9.0 | IEC 60529:2001, IP66 |
Packaging and Weights
| Height, packed | 190.5 mm | 7.5 in |
| Width, packed | 170.18 mm | 6.7 in |
| Length, packed | 78.74 mm | 3.1 in |
| Included | Boot | Cushion | Two clamps |
| Packaging quantity | 1 |
| Weight, gross | 0.9 kg | 1.984 lbs. |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
