CommScope 7/16 DIN Male Positive Stop 7/8in AL5-50 AVA5-50 (AL5DM-PSA)

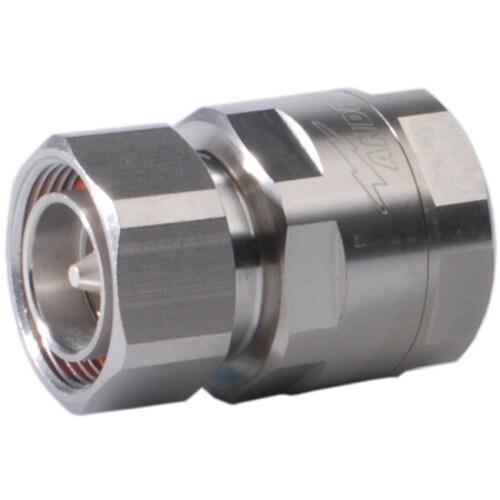

CommScope 7/16 DIN Male Positive Stop Connector for 7/8in AL5-50 and AVA5-50 Cables (AL5DM-PSA)

Key Features and Benefits

• High-quality HELIAX® | Positive Stop™ wireless and radiating connector
• Compatible with AL5-50 and AVA5-50 cable families
• Easy installation with captivated inner contact and ring-flare outer contact
• Excellent electrical performance with low insertion loss and high shielding effectiveness
• Durable and reliable with a wide operating temperature range

Overview

The CommScope AL5DM-PSA is a 7/16 DIN Male Positive Stop connector designed for use with 7/8in AL5-50 and AVA5-50 cables. This high-quality connector from the renowned HELIAX® | Positive Stop™ series ensures reliable and efficient connections for your wireless and radiating systems. With its easy installation and excellent electrical performance, the AL5DM-PSA connector is the perfect choice for professionals looking to optimize their network infrastructure.

Technical Specifications

• Body Style: Straight
• Inner Contact Plating: Silver
• Interface: 7-16 DIN Male
• Mounting Angle: Straight
• Outer Contact Plating: Trimetal
• Pressurizable: No
• Dimensions: Length - 52.83 mm (2.080 in), Diameter - 37.08 mm (1.460 in)
• Operating Frequency Band: 0 – 5200 MHz
• Connector Impedance: 50 ohm
• Return Loss/VSWR: 45–1000 MHz - 1.023 38.89, 1010–2200 MHz - 1.027 37.51, 2210–3000 MHz - 1.034 35.54, 3010–5200 MHz - 1.083 27.99
• Environmental Specifications: Operating Temperature - -55 °C to +85 °C (-67 °F to +185 °F), Storage Temperature - -55 °C to +85 °C (-67 °F to +185 °F)
• Weight, net: 151.61 g (0.334 lb)

Designed, manufactured, and distributed under the ISO 9001:2015 quality management system, the CommScope AL5DM-PSA connector is compliant with ROHS and UK-ROHS regulations, ensuring that it meets the highest standards of quality and safety.

Upgrade Your Network Infrastructure Today

Don't settle for subpar connections in your wireless and radiating systems. Invest in the CommScope AL5DM-PSA 7/16 DIN Male Positive Stop connector for 7/8in AL5-50 and AVA5-50 cables and experience the difference that a high-quality connector can make. With its easy installation, excellent electrical performance, and durable design, the AL5DM-PSA connector is the perfect choice for professionals looking to optimize their network infrastructure. Upgrade your connections today and enjoy the benefits of a reliable and efficient network.
