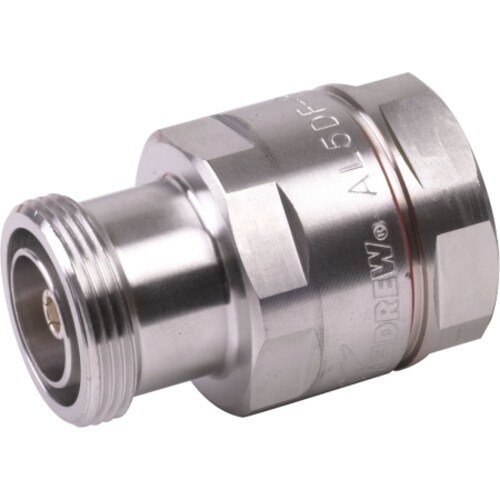

CommScope 7/8 DIN Female for AVA5-50 (AL5DF-PSA)
- Brand: CommScope
- P\N: AL5DF-PSA
- UPC: 888063832628
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Introducing the CommScope 7/8 DIN Female Connector for AVA5-50 (AL5DF-PSA)
Upgrade your wireless and radiating connections with the high-quality CommScope 7/8 DIN Female Connector for AVA5-50 (AL5DF-PSA). Designed for professionals who demand the best in performance and reliability, this connector is part of the HELIAX® Positive Stop™ series and is compatible with both AL5-50 and AVA5-50 cables.
Key Features
- Superior electrical performance with low insertion loss and high shielding effectiveness
- Easy installation with captivated inner contact and ring-flare outer contact attachment methods
- Durable construction with silver inner contact plating and trimetal outer contact plating
- Wide operating frequency band from 0 to 5200 MHz
- High connector retention tensile force and torque for secure connections
- Environmentally tested for corrosion, moisture, and thermal shock resistance
- Compliant with ISO 9001:2015, ROHS and UK-ROHS standards
Don't settle for subpar connections when you can enhance your wireless and radiating systems with the CommScope 7/8 DIN Female Connector for AVA5-50 (AL5DF-PSA). With its superior performance, easy installation, and durable construction, this connector is the perfect choice for professionals who demand the best. Order now and experience the difference for yourself.
Specifications
Product Classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® | Positive Stop™ |
| Product Series | AVA5-50 | AVA5RK-50 |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Body Style | Straight |
| Cable Family | AL5-50 | AVA5-50 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Ring-flare |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Length | 54.86 millimeter | 2.160 inch |
| Diameter | 37.08 millimeter | 1.460 inch |
| Nominal Size | 7/8 inch |
Electrical Specifications
| 3rd Order IMD at Frequency | -120 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 3.0 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 4000 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 5200 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 40 kW |
| RF Operating Voltage, maximum (vrms) | 1415 V |
| Shielding Effectiveness | -130 dB |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
|---|---|---|
| 824–1019 MHz | 1.023 | 38.89 |
| 1710–1044 MHz | 1.023 | 38.89 |
| 1850–1990 MHz | 1.023 | 38.89 |
| 1910–2200 MHz | 1.027 | 37.51 |
| 2200–2700 MHz | 1.034 | 35.54 |
| 3010–4000 MHz | 1.125 | 24.61 |
| 4010–5200 MHz | 1.206 | 20.59 |
Mechanical Specifications
| Attachment Durability | 25 cycles |
| Connector Retention Tensile Force | 1334.47 N | 300.000 lbf |
| Connector Retention Torque | 8.14 N-m | 72.001 in lb |
| Insertion Force | 200.17 N | 45.000 lbf |
| Insertion Force Method | IEC 61169-1:15.2.4 |
| Interface Durability | 50 cycles |
| Interface Durability Method | IEC 61169-4:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Immersion Depth | 1 m |
| Immersion Test Mating | Unmated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | IEC 60068-2-6 |
| Water Jetting Test Mating | Unmated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and Weights
| Weight, net | 132 g | 0.291 lbs. |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant, Compliant/Exempted |
