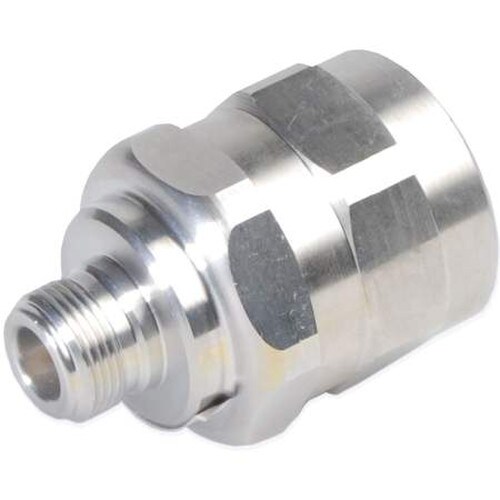

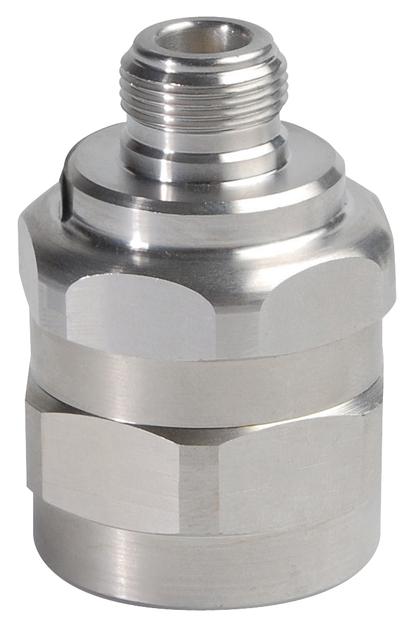

CommScope 7/8in Cable N-Female EZfit (78EZNF)
- Brand: CommScope
- P\N: 78EZNF
- UPC: 888063334382
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
CommScope 7/8 inch Cable N-Female EZfit Connector (78EZNF)
Upgrade your wireless and radiating connections with the CommScope 7/8in Cable N-Female EZfit Connector (78EZNF). Designed for professionals who demand high-quality and reliable connections, this connector is compatible with AVA5-50, AVA5-50FX, and FXL-780 cables. With its straight body style and clamp outer contact attachment method, the 78EZNF ensures a secure and stable connection for optimal performance.
Key Features
- Compatible with AVA5-50, AVA5-50FX, and FXL-780 cables
- Silver-plated inner contact for enhanced conductivity
- Trimetal outer contact plating for durability and corrosion resistance
- 50-ohm cable and connector impedance for consistent signal transmission
- Operating frequency band of 0 - 5000 MHz for versatile use
- High connector retention tensile force and torque for secure connections
- Environmental specifications for reliable performance in various conditions
Don't compromise on the quality of your connections. Upgrade to the 78EZNF today and experience the difference in performance and reliability. Order now and enhance your wireless and radiating systems with this premium connector.
Specifications
Product Classification
| Product Type | Wireless and radiating connector |
| Product Brand | EZfit® |
| Product Series | AVA5-50 | AVA5-50FX | AVA5RK-50 |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Body Style | Straight |
| Cable Family | AVA5-50 | AVA5-50FX | FXL-780 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Length | 52.07 millimeter | 2.050 inch |
| Diameter | 37.08 millimeter | 1.460 inch |
| Nominal Size | 7/8 inch |
Electrical Specifications
| 3rd Order IMD at Frequency | -116 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2000 V |
| Inner Contact Resistance, maximum | 2 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 5000 MHz |
| Outer Contact Resistance, maximum | 0.3 mOhm |
| Peak Power, maximum | 10 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
|---|---|---|
| 50–1000 MHz | 1.020 | 40.09 |
| 1000–1900 MHz | 1.025 | 38.17 |
| 1900–2200 MHz | 1.041 | 33.94 |
| 2200–2700 MHz | 1.058 | 31.00 |
| 2700–3600 MHz | 1.065 | 30.04 |
| 3600–5000 MHz | 1.106 | 25.96 |
Mechanical Specifications
| Attachment Durability | 25 cycles |
| Connector Retention Tensile Force | 1334.47 N | 300.000 lbf |
| Connector Retention Torque | 8.14 N-m | 72.001 in lb |
| Insertion Force | 66.72 N | 15.000 lbf |
| Insertion Force Method | MIL-C-39012C-3.12, 4.6.9 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | IEC 60068-2-6 |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and Weights
| Weight, net | 135.54 g | 0.299 lbs. |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
