  • CommScope 7/8in Foam Heliax Cable Fire Retardant (AVA5RK-50)

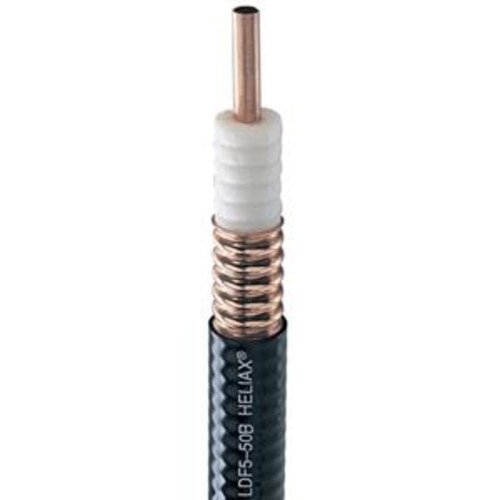

CommScope 7/8in Foam Heliax Cable Fire Retardant (AVA5RK-50)

  • Brand: CommScope
  • P\N: AVA5RK-50
  • UPC: 888063855566
(0)No Reviews yet

Availability: In Stock


Special Note: This item is Non-Cancellable and Non-Returnable

Ships Within: 1 - 2 Business Days

Your Price: $15.99

Do you have questions?

Please contact our experts for assistance.

Description

CommScope 7/8 Inch Foam Heliax Cable Fire Retardant (AVA5RK-50)

Experience the superior performance of the CommScope 7/8 Inch Foam Heliax Cable Fire Retardant. This high-quality cable is designed with a low-density foam dielectric, ensuring optimal signal transmission for your professional needs.

Key Features

  • Low Density Foam Dielectric: Enhances signal transmission for clear, uninterrupted communication.
  • 50 Ohms: Perfectly balanced for professional use, ensuring consistent performance.
  • Fire Retardant: Offers an added layer of safety, making it ideal for use in various environments.
  • Annular Corrugated Outer Conductor: Provides durability and longevity, ensuring your cable withstands the test of time.
  • Smooth Round Center Conductor: Ensures optimal signal transmission, enhancing your communication experience.

Don't compromise on your communication needs. Choose the CommScope 7/8in Foam Heliax Cable Fire Retardant for a seamless, efficient, and safe communication experience. Order now and experience the difference!

Specifications

Product Classification

Product TypeCoaxial wireless cable
Product BrandHELIAX®
Product SeriesAVA5-50

General Specifications

Product Number520097502/00 | SZ520097502/00
FlexibilityStandard
Jacket ColorBlack
Performance NoteAttenuation values typical, guaranteed within 5%
Specification Sheet Revision LevelB

Dimensions

Diameter Over Dielectric24.13 millimeter | 0.95 inch
Diameter Over Jacket27.94 millimeter | 1.1 inch
Inner Conductor OD9.4488 millimeter | 0.372 inch
Outer Conductor OD25.4 millimeter | 1 inch
Nominal Size7/8 inch

Electrical Specifications

Cable Impedance50 ohm ±1 ohm
Capacitance73.2 pF/m | 22.311 pF/ft
dc Resistance, Inner Conductor1.435 ohms/km | 0.437 ohms/kft
dc Resistance, Outer Conductor1.116 ohms/km | 0.34 ohms/kft
dc Test Voltage6000 V
Inductance0.184 µH/m | 0.056 µH/ft
Insulation Resistance100000 MOhms-km
Jacket Spark Test Voltage (rms)8000 V
Operating Frequency Band1 – 5000 MHz
Peak Power91 kW
Velocity91 %

Attenuation

FrequencyAttenuation (dB/100 m)Attenuation (dB/100 ft)Average Power (kW)
1.0 MHz0.1130.03474.43
1.5 MHz0.1380.04260.73
2.0 MHz0.1600.04952.56
10.0 MHz0.3590.11023.37
20.0 MHz0.5100.15616.46
30.0 MHz0.6270.19113.39
50.0 MHz0.8140.24810.32
85.0 MHz1.0680.3267.86
88.0 MHz1.0880.3327.72
100.0 MHz1.1620.3547.23
108.0 MHz1.2090.3686.95
150.0 MHz1.4330.4375.86
174.0 MHz1.5480.4725.43
200.0 MHz1.6650.5075.05
204.0 MHz1.6820.5134.99
300.0 MHz2.0590.6284.08
400.0 MHz2.3980.7313.50
450.0 MHz2.5530.7783.29
460.0 MHz2.5830.7873.25
500.0 MHz2.7000.8233.11
512.0 MHz2.7350.8343.07
600.0 MHz2.9770.9072.82
700.0 MHz3.2350.9862.60
800.0 MHz3.4781.0602.42
824.0 MHz3.5341.0772.38
894.0 MHz3.6941.1262.27
960.0 MHz3.8411.1712.19
1000.0 MHz3.9271.1972.14
1218.0 MHz4.3771.3341.92
1250.0 MHz4.4401.3531.89
1500.0 MHz4.9121.4971.71
1700.0 MHz5.2681.6051.59
1794.0 MHz5.4291.6551.55
1800.0 MHz5.4391.6581.54
2000.0 MHz5.7711.7591.46
2100.0 MHz5.9331.8081.42
2200.0 MHz6.0911.8561.38
2300.0 MHz6.2471.9041.34
2500.0 MHz6.5501.9961.28
2700.0 MHz6.8452.0861.23
3000.0 MHz7.2722.2171.15
3400.0 MHz7.8192.3831.07
3600.0 MHz8.0832.4641.04
3700.0 MHz8.2132.5031.02
3800.0 MHz8.3422.5421.01
3900.0 MHz8.4702.5810.99
4000.0 MHz8.5962.6200.98
4100.0 MHz8.7222.6580.96
4200.0 MHz8.8462.6960.95
4300.0 MHz8.9692.7340.94
4400.0 MHz9.0922.7710.92
4500.0 MHz9.2132.8080.91
4600.0 MHz9.3332.8450.90
4700.0 MHz9.4532.8810.89
4800.0 MHz9.5722.9170.88
4900.0 MHz9.6892.9530.87
5000.0 MHz9.8062.9890.86

Return Loss/VSWR

Frequency BandVSWRReturn Loss (dB)
680–800 MHz1.13024.30
800–960 MHz1.13024.30
1700–2200 MHz1.13024.30

Material Specifications

Dielectric MaterialFoam PE
Jacket MaterialNon-halogenated, fire retardant polyolefin
Inner Conductor MaterialCopper tube
Outer Conductor MaterialCorrugated copper

Mechanical Specifications

Minimum Bend Radius, multiple Bends254 millimeter | 10 inch
Minimum Bend Radius, Single Bend127 millimeter | 5 inch
Number of Bends, minimum15
Number of Bends, typical30
Tensile Strength159 kg | 350.535 lbs.
Bending Moment19 N-m | 168.164 in lbs.
Flat Plate Crush Strength1.3 kg/mm | 72.797 lbs./inch

Environmental Specifications

Installation temperature-40 °C to +60 °C (-40 °F to +140 °F)
Operating Temperature-40 °C to +60 °C (-40 °F to +140 °F)
Storage Temperature-40 °C to +60 °C (-40 °F to +140 °F)
Attenuation, Ambient Temperature20 °C | 68 °F
Average Power, Ambient Temperature40 °C | 104 °F
Average Power, Inner Conductor Temperature100 °C | 212 °F
EN50575 CPR Cable EuroClass Fire PerformanceB2ca
EN50575 CPR Cable EuroClass Smoke Ratings1a
EN50575 CPR Cable EuroClass Droplets Ratingd2
EN50575 CPR Cable EuroClass Acidity Ratinga1
Fire Retardancy Test MethodIEC 60332-1-2 | NFPA 130-2010 | UL 1666/CATVR/CMR
Smoke Index Test MethodIEC 61034
Toxicity Index Test MethodIEC 60754-1 | IEC 60754-2

Packaging and Weights

Cable weight0.53 kg/m | 0.356 lbs./foot

Regulatory Compliance/Certifications

AgencyClassification
CENELECEN 50575 compliant, Declaration of Performance (DoP) available
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHSCompliant
UL/ETL CertificationCATVR/CMR
CHINA-ROHSBelow maximum concentration value
REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHSCompliant

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
