CommScope AVA-5 Automated Prep Tool 7/8in (A5FX-EZPT)
- Brand: CommScope
- P\N: A5FX-EZPT
- UPC: 888063126369
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
CommScope AVA-5 Automated Prep Tool 7/8in (A5FX-EZPT)

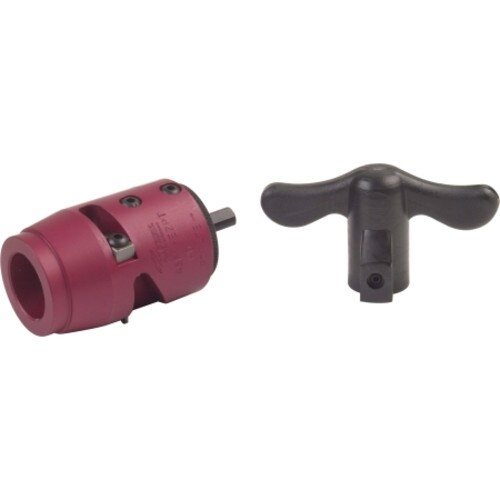

COMMSCOPE's A5FX-EZPT EZfit automated coaxial cable coring and stripping preparation tool is made for use with AVA5 HELIAX 7/8 in coaxial cable. Andrew drill-driven automated cable prep tools prepare cable quickly and consistently. This drill-driven coring tool also includes a T-handle for manual hand operation. Simply insert the coaxial cable prep tool onto a reversible power drill, close the chuck, and strip the cable in as little as ten seconds. The rust-proof anodized aluminum stripper removes the cable jacket, outer conductor, and foam. Plus, it cuts back and chamfers the inner conductor to the correct dimensions for connector attachment. For fast, clean, and consistent cable preparations go with Andrew Solutions EZfit drill-driven automated cable preparation tools.
Specifications
Product Classification
| Product Type | Tool |
| Product Brand | EZfit® |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Application | Prepares cable for connector attachment |
| Cutting Blade Life | 150 cable preparations |
| Cutting Blades Included | 2 |
| Jacket Blades Included | 1 |
| Tool Type | Automated cable preparation tool |
Dimensions
| Nominal Size | 7/8 inch |
Material Specifications
| Material Type | Aluminum |
| Material Type, Blade | Hardened tool steel |
Packaging and Weights
| Height, packed | 121.92 mm | 4.8 incch |
| Width, packed | 83.82 mm | 3.3 inch |
| Length, packed | 88.9 mm | 3.5 inch |
| Packaging quantity | 1 |
| Weight, gross | 0.2 kg | 0.441 lbs. |
