CommScope Flange for EWP63 (163SE)

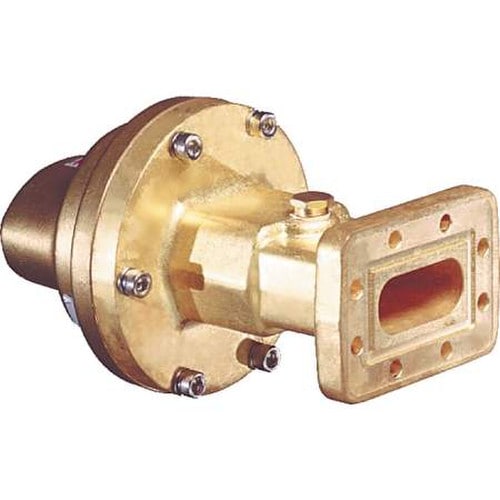

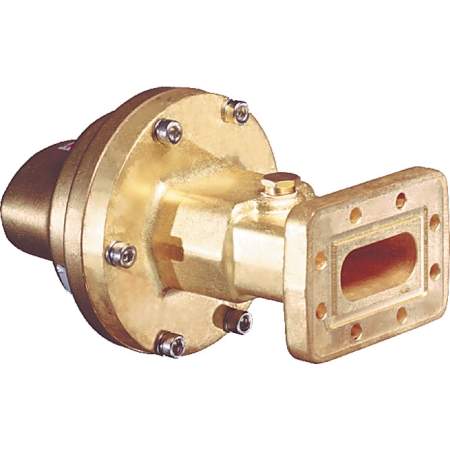

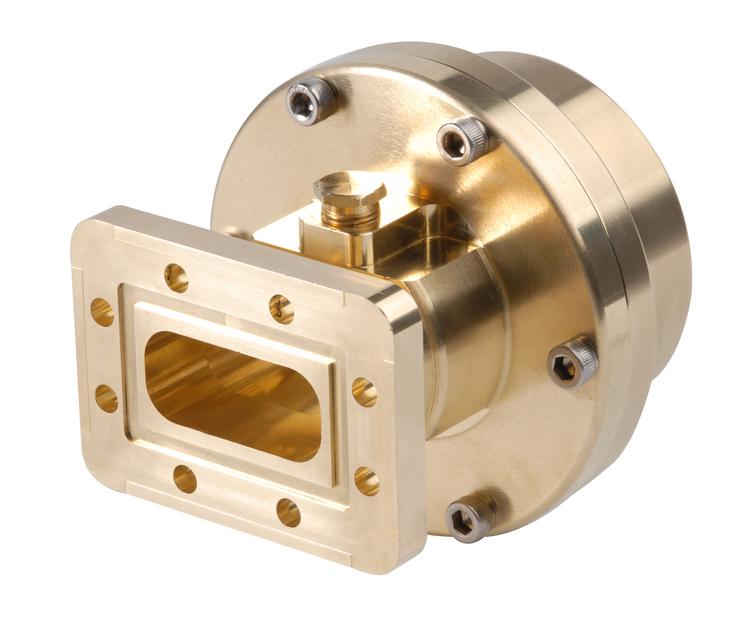

Introducing the CommScope Flange for EWP63 (163SE)

Upgrade your communication system with the CommScope Flange for EWP63 (163SE), a high-quality elliptical waveguide connector designed to provide reliable and efficient connections for your network. This robust and durable connector is perfect for professionals who demand the best performance from their communication equipment.

Key Features

• Designed for use with elliptical waveguide 63
• Fixed-tuned CPR137G interface for secure connections
• Low insertion loss for optimal signal transmission
• High peak power capacity for demanding applications
• Constructed from durable brass material
• Compliant with various regulatory standards for quality assurance

The CommScope Flange for EWP63 (163SE) boasts impressive technical specifications that ensure optimal performance and reliability. With a typical insertion loss of just 0.01 dB and an operating frequency band of 5.725 – 7.125 GHz, this connector is designed to provide efficient signal transmission for your communication system. The connector is also capable of handling a maximum peak power of 102.00 kW at 6.78 GHz, making it suitable for even the most demanding applications.

Constructed from high-quality brass material, the CommScope Flange for EWP63 (163SE) is built to withstand harsh environmental conditions, with an operating temperature range of -55 °C to +85 °C (-67 °F to +185 °F) and a storage temperature range of -55 °C to +85 °C (-67 °F to +185 °F).

Regulatory Compliance and Certifications

When you choose the CommScope Flange for EWP63 (163SE), you can trust that you're investing in a product that meets the highest quality standards. This connector is designed, manufactured, and/or distributed under an ISO 9001:2015 quality management system and is compliant with various regulatory standards

Don't settle for anything less than the best when it comes to your communication equipment. Upgrade your system with the CommScope Flange for EWP63 (163SE) and experience the difference that a high-quality connector can make. Order yours today and enjoy the benefits of a reliable and efficient connection for your network.

General Specifications

• Attachment Method Tab-flare | Tool-flare
• Body Style Straight, fixed-tuned
• Inner Contact Plating Unplated
• Interface CPR137G
• Outer Contact Plating Unplated
• Pressurizable Yes

Dimensions

• Width 85.852 mm | 3.38 in
• Length 85.344 mm | 3.36 in
• Transition Length 52.832 mm | 2.08 in
• Waveguide Size WR137 | WG14 | R70

Electrical Specifications

• Insertion Loss, typical 0.01 dB
• Operating Frequency Band 5.725 – 7.125 GHz
• Peak Power at Frequency, maximum 102.00 kW @ 6.78 GHz

Material Specifications

• Material Type Brass

Environmental Specifications

• Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
• Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)

Packaging and Weights

• Weight, net 1.7 kg | 3.748 lbs.
• Regulatory Compliance/Certifications
• Agency Classification
• ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
• ROHS Compliant
• CHINA-ROHS Below maximum concentration value
• REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
• UK-ROHS Compliant
