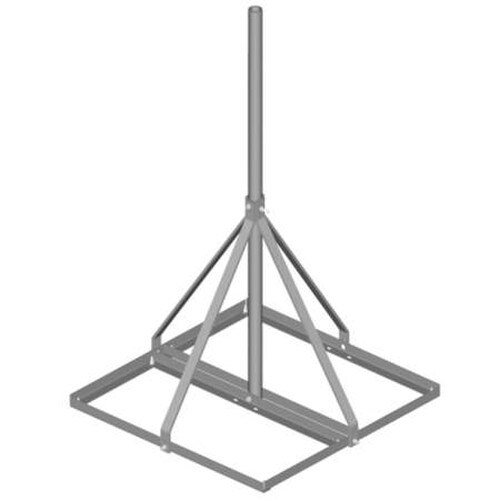

CommScope Light Duty Non-Penetrating Roof Mount (RM-SM190-60)

CommScope Light-Duty Non-Penetrating Roof Mount (RM-SM190-60)

Best For

Light-duty rooftop antenna installations that need a freestanding, ballasted mounting platform without penetrating the roof surface.

Why Choose the CommScope RM-SM190-60?

This non-penetrating mount uses hot-dip galvanized steel and includes the ballast tray, mast, and supports needed to create a stable rooftop mounting structure for compatible equipment.

Key Benefits

• Non-penetrating rooftop design
• Hot-dip galvanized steel construction
• 60 in. mast length
• 1.9 in. mast outside diameter
• Approximately 36 in. wide / 3 ft base dimension
• Supports one compatible antenna
• Includes ballast tray, mast, and supports
• Approximate net weight: 60 lb.

Who Should Buy the RM-SM190-60?

Professional installers who need a light-duty, ballasted rooftop mount for one compatible antenna and want to avoid roof penetrations.

Installation Notes

Ballast and wind-loading requirements depend on the antenna, rooftop, exposure, and site conditions. Confirm structural capacity and the manufacturer's current engineering requirements before installation. The existing Contact Us notice regarding product availability remains preserved separately.
