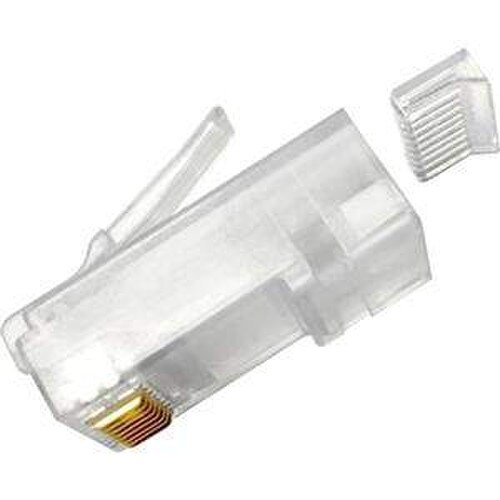

CommScope Modular Plug Category 6A/6 Unshielded 100 Pack (6-2843007-1)
- Brand: CommScope
- P\N: 6-2843007-1
- UPC: 646444245197
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
CommScope Modular Plug Category 6A/6 Unshielded 100 Pack
Experience the power of seamless connectivity with the CommScope Modular Plug Category 6A/6 Unshielded 100 Pack. Designed for high-speed data transmission, this pack of 100 modular plugs is a must-have for any professional setup.
Key Features
- High-speed data transmission: These modular plugs are designed to support Category 6A/6 unshielded cables, ensuring fast and reliable data transmission.
- Cond Insulation OD - 0.99mm: The plugs feature a Cond Insulation OD of 0.99mm, providing optimal insulation and reducing signal interference.
- 100 pcs pack: With 100 pieces in each pack, you'll have plenty of plugs for multiple installations or replacements.
- Special Order: This product is a special order item, ensuring that you receive a fresh, unused pack every time you order.
- Non-Cancellable and Non-Returnable: Due to the nature of this product, orders cannot be cancelled or returned, ensuring that each customer receives a brand-new, untouched product.
Don't compromise on your connectivity. Order the CommScope Modular Plug Category 6A/6 Unshielded 100 Pack today and experience the difference.
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Modular plug |
General Specifications
| ANSI/TIA Category | 6 | 6A |
| Cable Type | Round, unshielded |
| Conductor Type | Solid | Stranded |
| Interface | RJ45 |
| Positions/Loaded Contacts | 8/8 |
| Termination Type | IDC |
Dimensions
| Compatible Insulated Conductor Diameter, maximum | 1.09 mm | 0.043 in |
| Compatible Insulated Conductor Diameter, minimum | 0.89 mm | 0.035 in |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, solid | 26–23 AWG |
| Compatible Conductor Gauge, stranded | 26–23 AWG |
Electrical Specifications
| Current Rating, maximum | 0.75 A |
| Insulation Resistance, minimum | 500 mOhm |
| Safety Voltage Rating | 150 Vac |
Material Specifications
| Contact Base Material | Phosphor Bronze |
| Contact Plating Material | Gold |
| Material Type | Glass filled polycarbonate |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Relative Humidity | Up to 93%, non-condensing |
| Safety Standard | UL 1863 |
Packaging and Weights
| Packaging quantity | 100 |
| Packaging Type | Bag | Box | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ROHS | Compliant |
CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
