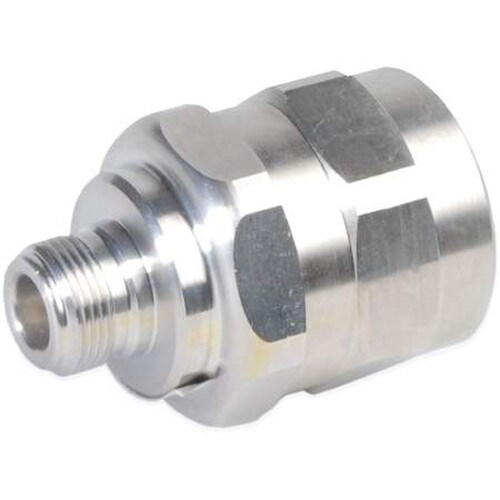

CommScope N/F EZfit for 1-5/8" AVA and FXL cable (158EZNF)

Introducing the CommScope N/F EZfit Connector for 1-5/8" AVA and FXL Cable (158EZNF)

Upgrade your wireless and radiating connections with the high-quality CommScope N/F EZfit connector, designed for 1-5/8" AVA and FXL cables. This reliable and durable connector is part of the renowned EZfit® product series, ensuring optimal performance and longevity for your professional needs.

Key Features and Benefits

• Compatible with AVA7-50 and AVA7RK-50 cable series
• Straight body style with silver-plated inner contact
• Clamp outer contact attachment method for secure connection
• Impressive shielding effectiveness of -130 dB
• Wide operating frequency band of 0 – 2700 MHz
• Environmentally friendly, compliant with ROHS and REACH-SVHC regulations

Technical Specifications

With a straight mounting angle and captivated inner contact attachment method, the CommScope N/F EZfit connector ensures a secure and stable connection. The connector's trimetal outer contact plating and 50-ohm impedance provide excellent electrical performance, while its non-pressurizable design ensures safety and ease of use.

Measuring 70.1 mm in length and 62.99 mm in diameter, this compact connector is designed to fit seamlessly into your existing setup. Its robust construction allows for an operating temperature range of -40 °C to +85 °C, ensuring reliable performance in various environments.

With a maximum peak power of 10 kW and an insertion loss coefficient of just 0.05, the CommScope N/F EZfit connector delivers outstanding electrical performance. Its shielding effectiveness of -130 dB ensures minimal interference, while its wide operating frequency band of 0 – 2700 MHz makes it suitable for a range of applications.

Designed, manufactured, and distributed under the ISO 9001:2015 quality management system, this connector is built to last. It is also compliant with ROHS and REACH-SVHC regulations, ensuring an environmentally friendly product.

Upgrade Your Connections Today

Don't settle for subpar connections – invest in the CommScope N/F EZfit connector for 1-5/8" AVA and FXL cables and experience the difference in quality and performance. With its impressive technical specifications and compatibility with the AVA7-50 and AVA7RK-50 cable series, this connector is the perfect addition to your professional setup. Upgrade your connections today and enjoy the benefits of a reliable, high-performance connector.
